HR-25KWD High frequency welding machine for inflatable products
| Model： | HR-25KWD |
| Scope Of Application： | 1. Toy stationery, such as :Gift bag, basketball embossing, album inner page, the inner page of business card,mousepad, glasses case,etc. 2. Leather suitcase ,such as Leather embossing,coining,heat-sealing,welding&cutting simultaneously,PVC Entrance Mats, |
| Features： | Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine |
Feature of machine:
1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,
all material which need welding and cutting simultaneously,all can work by this machine.
2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um.
3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.
4. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.
Technical parameter:
| MODEL |
HR-15KW |
HR-25KW |
HR-35KW |
HR-50KW |
|
HF POWER |
15000W |
25000W |
35000W |
50000W |
|
POWER SUPPLY |
380V 50/60HZ |
|||
|
FREQUENCY |
13.56MHZ |
|||
|
INPUT POWER |
25KVA |
35KVA |
50KVA |
70KVA |
|
RECTIFIER |
SILICON DIODE |
|||
|
OSCILLATION TUBE |
8T85RB |
8T25RA |
8T87RB |
E3116 |
|
MAXPRESSURE |
1000kg |
1000kg |
1500kg |
2000kg |
|
GAP OF ELETRODE |
100MM |
|||
|
SIZE OF ACTIVE HORN |
100MM |
|||
|
SIZE OF UPPER PLATE |
700*900mm |
800*1000mm |
1000*1800mm |
1200*2100mm |
|
SIZE OF LOWER PLATE |
800*1200mm |
1000*1400mm |
1200*2000mm |
1200*2200mm |
|
WELDING TIME |
0~10S Adjustable |
|||

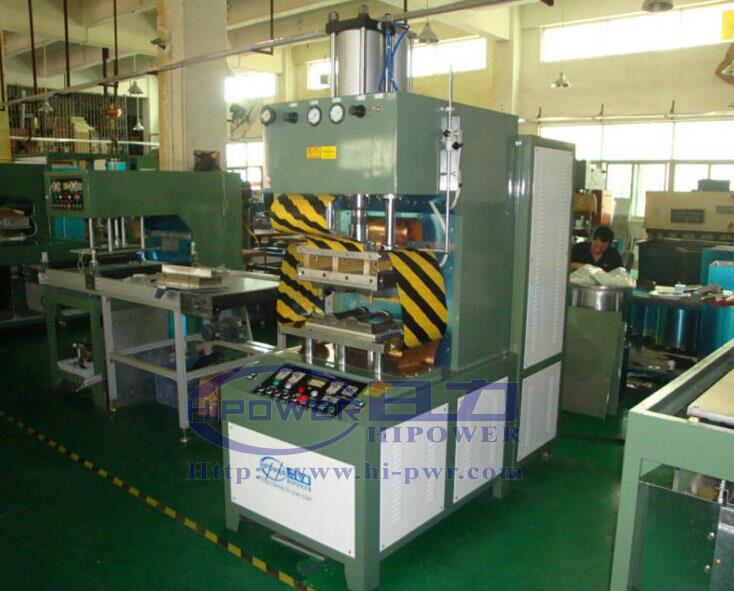

On the site:

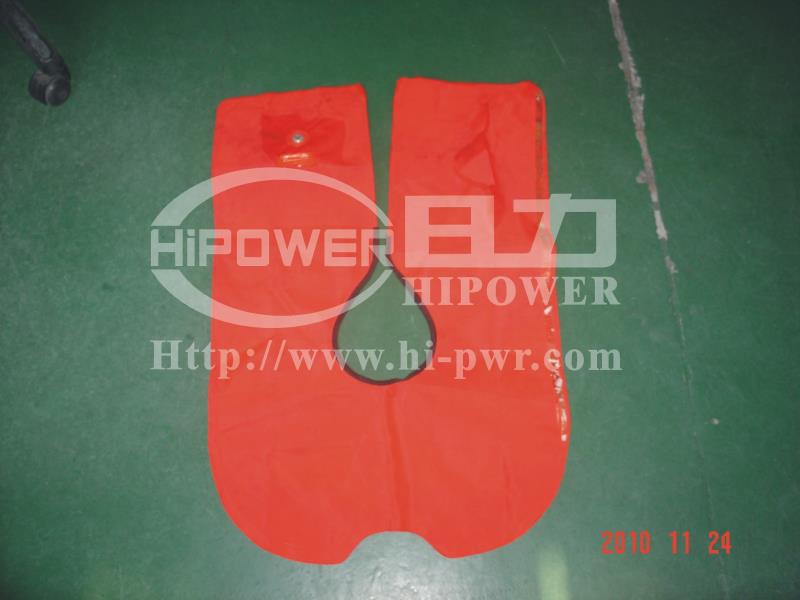

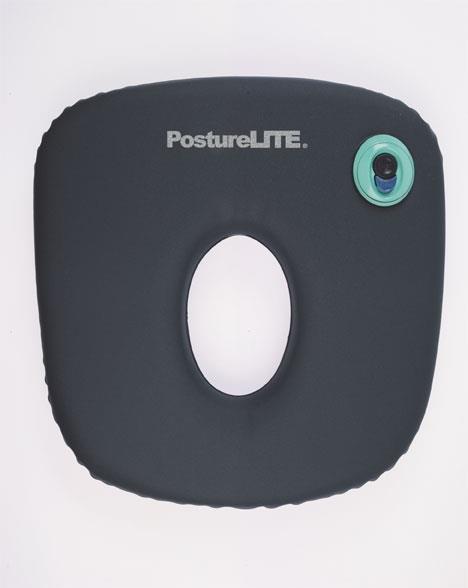

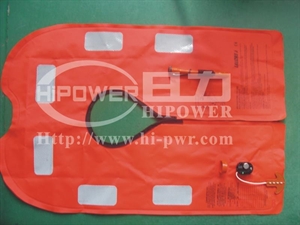

Sample view:

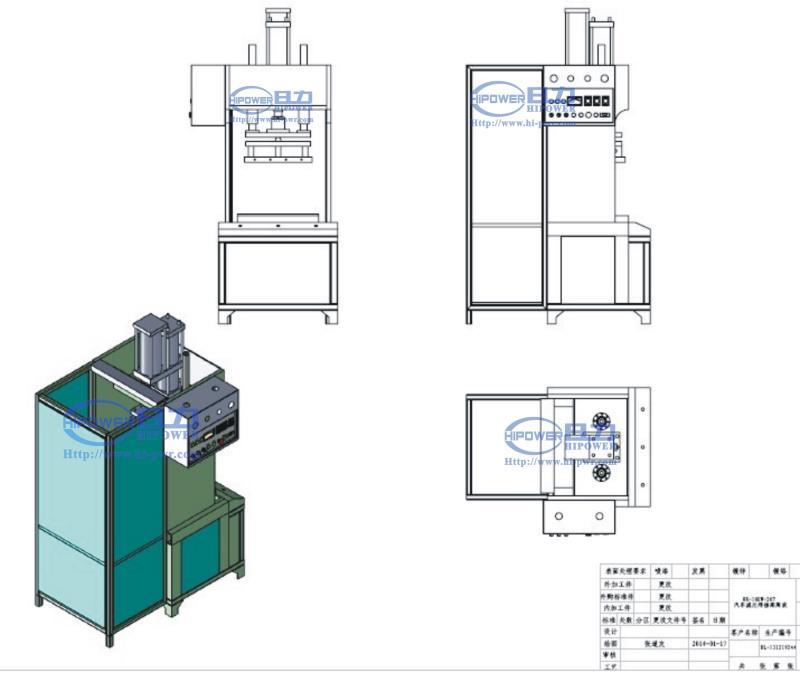

Drawing:
