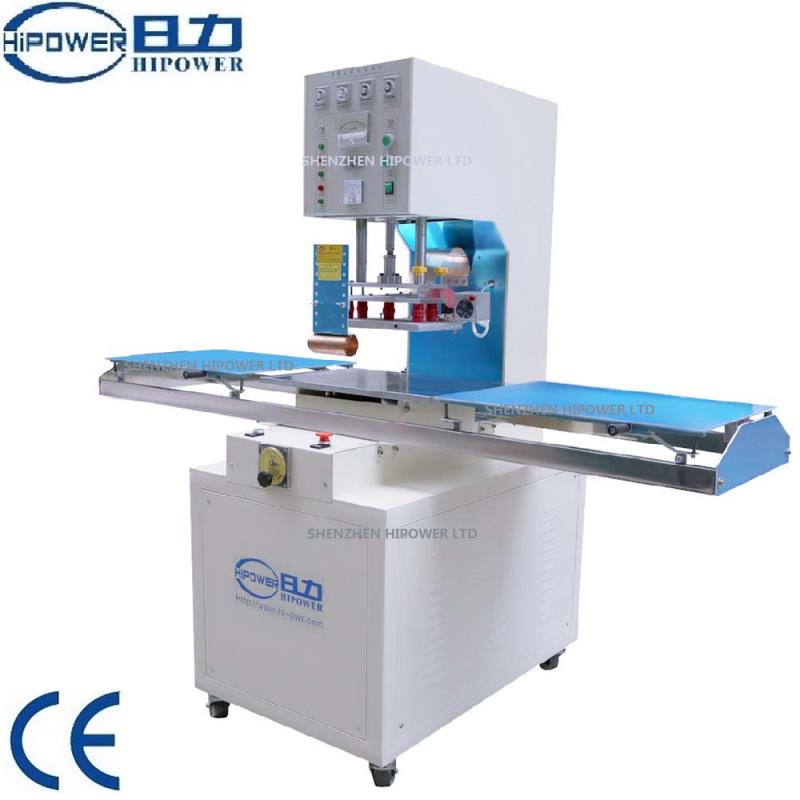

HR-10KW Manual high frequency wedling machine
| Model： | HR-10KW |

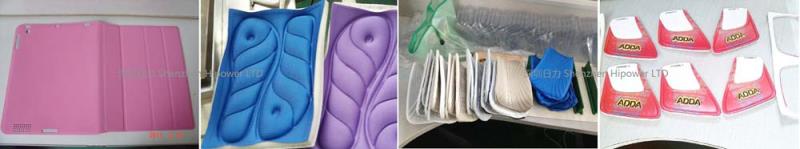

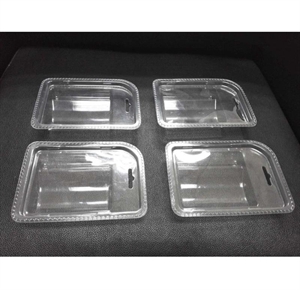

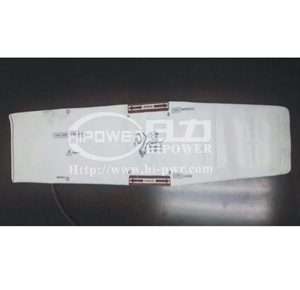

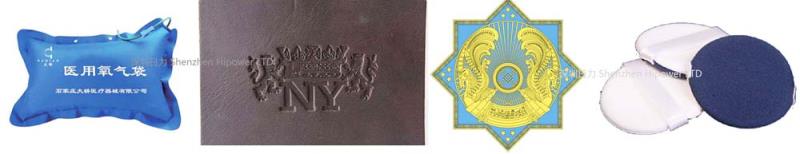

| Scope Of Application： | Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up to |
| Features： | 1.manual high frquency shuttle way welding machine2.automatic high frequency shuttle way welding machine3.manual high frequency square plate two working positions welding machine4.automatic high frequency square plate two working p |
There are six kinds of high frequency welding machine for choose
1.manual high frquency shuttle way welding machine
2.automatic high frequency shuttle way welding machine
3.manual high frequency square plate two working positions welding machine
4.automatic high frequency square plate two working positions welding machine
5.manual high frequency turntable style multi-working positions welding machine
6.automatic high frequency turntable style multi-working positions welding machine
Model： HR-5000A HR-8000A HR-10KW HR-12KW HR-15KW
H.F power： 5000W 8000W 10000W 12000W 15000W
Power supply： 380V/50/60HZ
Frequency ： 27.12MHZ 13.56MHZ
Input power： 8KVA 15KVA 18KVA 20KVA 25KVA
Rectifier： silicon diode
Vibrational tube： 7T85RB 7T69RB E3069 E3130 8T85RB
Max pressure： 350kg 500kg 500kg 800kg 1000kg
Gap of electrode： 200mm
Size of active horn： 175mm 175mm 150mm 150mm 150mm
Size of up electrode：200*350mm 400*600mm 500*700 600*800mm 600*900mm
Size of down electrode：400*600mm 500*700mm 600*800 600*800mm 600*900mm
Welding time： 0---10S
Productivity： ㄑ3500time/8H
Drive mode： Pneumatic
On the site:
high frequency power of this machine usual be:5000W,8000W,12KW,15KW.

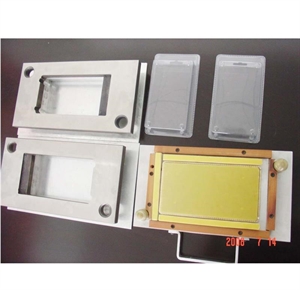

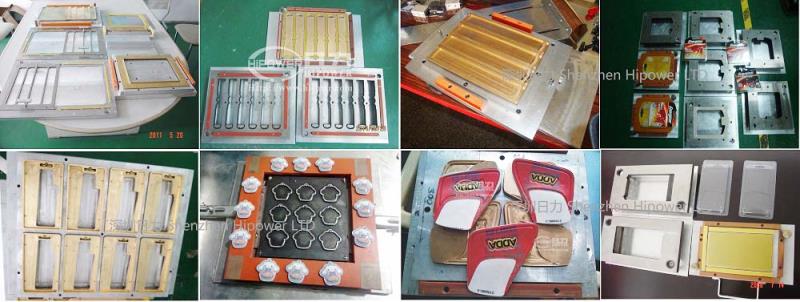

clients need to choose the machine according to the dimension and welding request of the products.There is two parts of high frequency welding mould.(one upper mould and two down mould) which work alternatively.As usually, the productivity of this machine is 3500~4000 times/8 hours. working speed can be pre setuped too.As the working speed of worker is limited, client who need high productivity always choose turntable style machine.
working style and working plate;
shuttle way with two working position. pusher-tray structure can improve the production effectively. The cylinder propping positioning gadget supporting precise positioning
Stable frequency
In strict accordance with the requirements of \"Committee on Radio Interference\" (CISPR). Oscillation Frequency: 27.12/40.68 MHZ. With a cycle stabilizer and a device for suppression of magneti leakage. Minimal interferes with the outside equipment.European model squarness high frequency vibration box to support more realible and stable in output.
Spark restrains
With NL-5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current. Can instantly cut off the supply of the oscillation loop to restrain the sparks to protect the mold, raw materials and products. At the same time warning lights will send you the alert.
Strong out-put power
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation
Different output power based on product size and thickness is available.You can control the welding and guarantee the homogeneity of the quality
