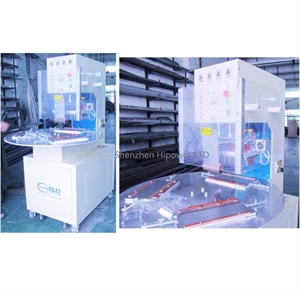

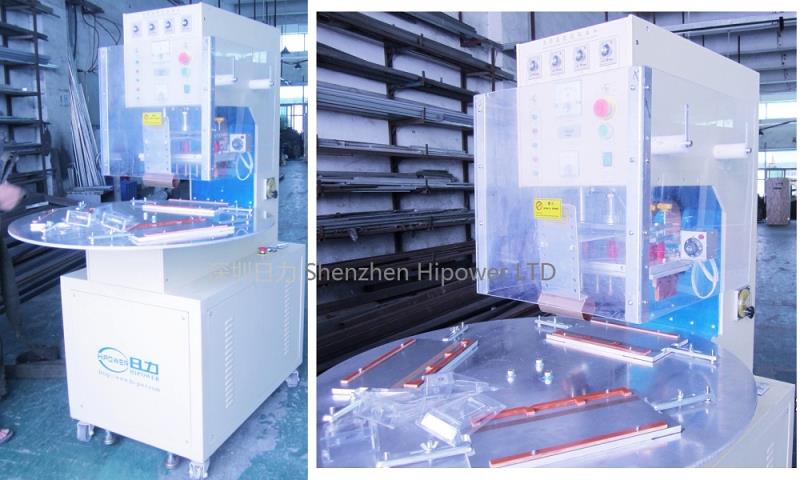

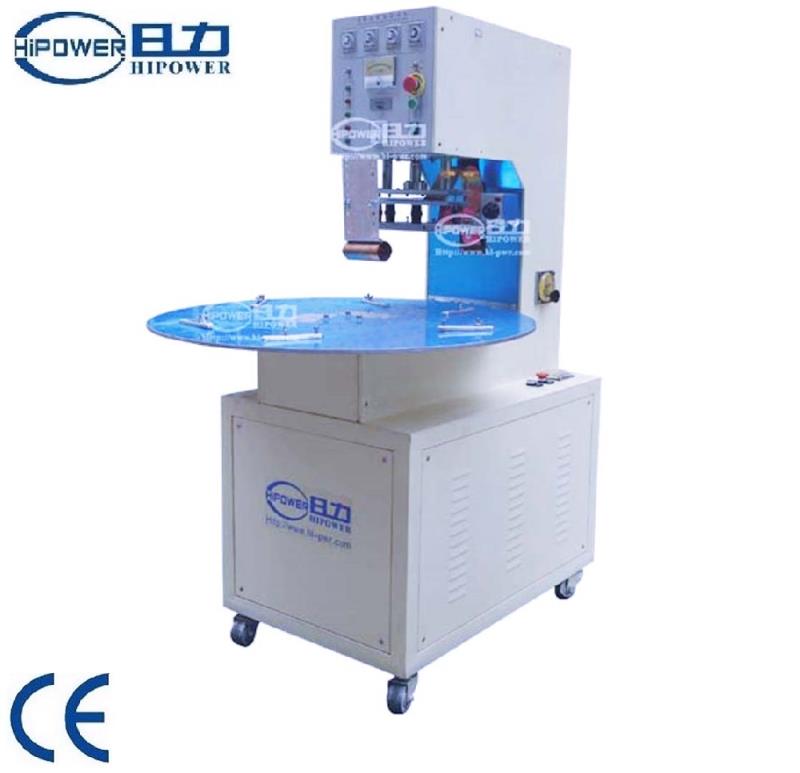

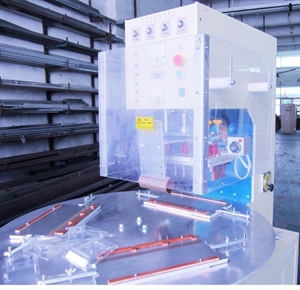

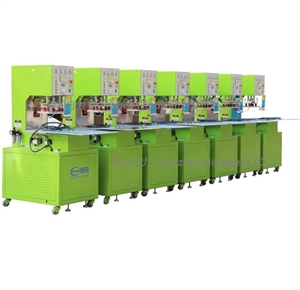

HR-5000E H.F single head turntable welding machine

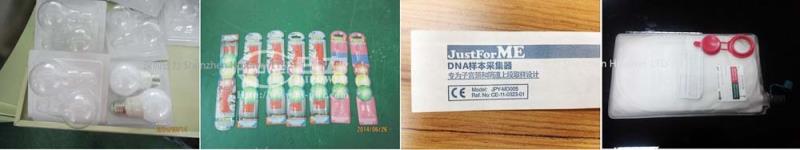

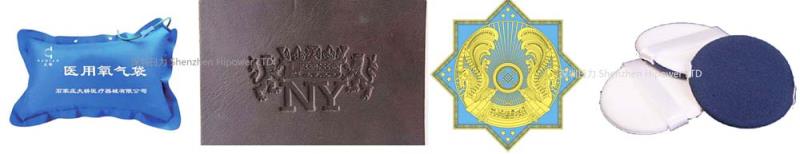

| Model： | HR-5000E |
| Scope Of Application： | Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up |
| Features： | 1.manual high frquency shuttle way welding machine2.automatic high frequency shuttle way welding machine3.manual high frequency square plate two working positions welding machine4.automatic high frequency square plate two working p |
Features of machine:
There are six kinds of high frequency welding machine for choose
1.manual high frquency shuttle way welding machine
2.automatic high frequency shuttle way welding machine
3.manual high frequency square plate two working positions welding machine
4.automatic high frequency square plate two working positions welding machine
5.manual high frequency turntable style multi-working positions welding machine
6.automatic high frequency turntable style multi-working positions welding machine
Technical parameter:
| Model | HR-5000E | HR-8000E | HR-10KW |
| Power | 5000W | 8000W | 10000W |
| Voltage | 220v/380V 50/60HZ or customize | ||
| Frequency | 27.12MHz | ||
| Input power | 8KVA | 15KVA | 18KVA |
| Rectifier | silicon diode | ||
| Oscillation tube | 7T85RB | 7T69RB | E3069RB |
| Max pressure | 280kg | 350kg | 500kg |
| Operation mode | pneumatic | ||
| Max distance of electrodes | 200mm | ||
| The moving distance of active horn | 100mm | ||
| The size of upper electrode | 200*350mm | 400*600mm | 500*700mm |
| The lowwer of lowwer electrode | 400*600mm | 600*800mm | 600*800mm |
| The range of tempreture | 30~200 oC adjustable | ||
| Welding time | 0.01---9.99sdjustable | ||
| Productivity | < 4000times/8hours | ||
| Net weight | 280kg | 330kg | 360kg |
| Overall dimension | 1000*660*1730 | 1000*720*1860 | 1000*700*1860 |
On the site:
high frequency power of this machine usual be:5000W,8000W,12KW,15KW.
clients need to choose the machine according to the dimension and welding request of the products.
There is two parts of high frequency welding mould.(one upper mould and two down mould) which work alternatively.
As usually, the productivity of this machine is 3500~4000 times/8 hours. working speed can be pre setuped too.
As the working speed of worker is limited, client who need high productivity always choose turntable style machine.

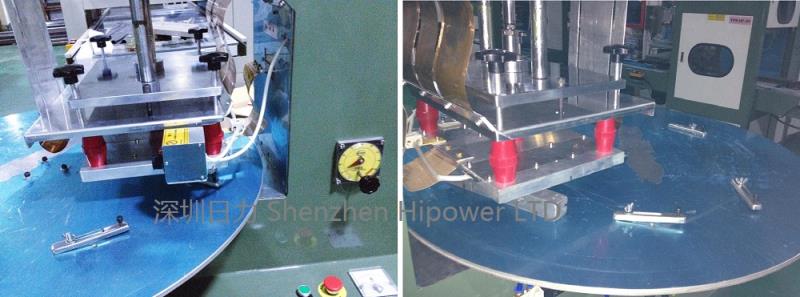

working style and working plate;
Square working plate with two working position work alternately.
Stable frequency
In strict accordance with the requirements of \"Committee on Radio Interference\" (CISPR).
Oscillation Frequency: 27.12/40.68 MHZ. With a cycle stabilizer and a device for suppression of leakage of the magnetic flux.
Minimal interferes with the outside equipment.
European model squarness high frequency vibration box to support more realible and stable in output.
Spark restrains
With NL-5557 high sensitivity spark suppression circuits, Accurate detection of the imbalance current. Can instantly cut off
the supply of the oscillation loop to restrain the sparks to protect the mold, raw materials and products. At the same time
warning lights will send you the alert.
Strong out-put power
Using aluminum material with good quality and low-loss coaxial resonator. More stable output high frequency.
Stronger radiation shielding. A good output waveform. The maximum pressure up to 50T, more efficiency.
Oscillation current regulation
Different output power based on product size and thickness is available.
You can control the welding and guarantee the homogeneity of the quality
