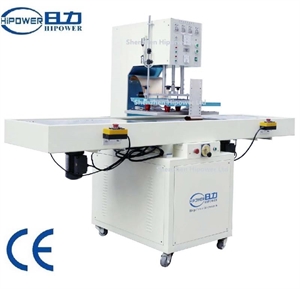

HR-8000AT Auto slide high frequency machine for blister packing

Model：	HR-8000AT
Scope Of Application：	Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up to
Features：	1.manual high frquency shuttle way welding machine2.automatic high frequency shuttle way welding machine3.manual high frequency square plate two working positions welding machine4.automatic high frequency square plate two working p

HR-8000AT Auto slide high frequency machine for blister packing

Application:
      Adopt high frequency technoloy to crease a high-frequency electromagnetic field.
      Internal molecules of welding products move in a very high speed inside the electromagnetic field.
      Internal temperature of two pieces product become higher and then join together like a single one.
      HF welding machine a good for welding plastic blister+blister, blister+papercard which coated with plastic.
      It is also called as high frquency clamshell sealing machine or high frquency plastic packaging machine.
      This machine is also used for many kinds of plastic welding and embossing...
      Is widely used in packaging stationery,MP3,MP4,clamshell packaging for toothbrush,toys,gift,hardware,Udisk...
      Also used for embossing trade Mark,Sticking Label, Raincoat,Umbrella,Traveling/Hand Bag,Name Plate, Inflatable Toy...

Features:
   There are six kinds of high frequency welding machine for choose
      1.manual high frquency shuttle way welding machine
      2.automatic high frequency shuttle way welding machine
      3.manual high frequency square plate two working positions welding machine
      4.automatic high frequency square plate two working positions welding machine
      5.manual high frequency turntable style multi-working positions welding machine
      6.automatic high frequency turntable style multi-working positions welding machine

Technical parameter:

Model	HR-4000AT	HR-5000AT	HR-8000AT	HR-10KWAT
Power	4000W	5000W	8000W	10000W
Voltage	220v/380V 50/60HZ
Frequency		27.12MHz
Input power	7KVA	8KVA	15KVA	18KVA
Rectifier	silicon diode
Oscillation tube	7T62RB	7T85RB	7T69RB	E3069
Max pressure	200kg	250kg	280kg	300kg
Operation mode	pneumatic
Max distance of electrodes	200mm
The moving distance of active horn	100mm
The size of upper electrode	300*500mm			400*600mm
The lowwer of lowwer electrode	350*600mm			500*800mm
The range of tempreture	30~200 oC adjustable
Welding time	0---10sdjustable
Productivity	< 3500times/8hours
Net weight	280kg	330kg	360kg	420kg
Overall dimension	172011001450	172011001500	180012001600	250015001700
