HR-10KW High frequency welding machine for PVC mesh
| Model： | HR-10KW |
| Scope Of Application： | Application: High Frequency welding is using the high frequency electromagnetic waves to heat and soften the join of certain plastics which have chemical dipoles, such as PVC, PA and acetates. When the welding mould die presses on the surface of two pie |
| Features： | 1. Single welding heads works, easy to operate.2. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.3. European-model, high frequency vibrational box, more reliable and stable in output4. Welding time can be adjusted fr |
HR-10KW High frequency welding machine for PVC mesh
Character of machine
1. Single welding heads works, easy to operate.
2. Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould.
3. European-model, high frequency vibrational box, more reliable and stable in output
4. Welding time can be adjusted from 0.01~9.99s
5. The max welding area is500*850(mm) for one welding time
6. High precision temperature controlling system, range of the temperature is 30~200ºC adjustable
7. Users can stop the welding mould position whenever they want
8, The gap between the upside of welding mould and the table is 100mm
9. Industrial wave bands 27.12MHz, which is in line with international standard
10. As the two circuit of Counter-action, both the program and time can be preset up
11. The pressed finished product line is smooth without bleaching
12. Pneumatic style
Technical specification:
Technical parameter:
| Model | HR-4000W | HR-5000W | HR-8000W | HR-10KW |
| Power | 4000W | 5000W | 8000W | 10000W |
| Voltage | 220v/380V 50/60HZ | |||
| Frequency | 27.12MHz | |||
| Input power | 7KVA | 8KVA | 15KVA | 18KVA |
| Rectifier | silicon diode | |||
| Oscillation tube | 7T62RB | 7T85RB | 7T69RB | E3069 |
| Max pressure | 200kg | 250kg | 280kg | 300kg |
| Operation mode | pneumatic | |||
| Max distance of electrodes | 200mm | |||
| The moving distance of active horn | 100mm | |||
| The size of upper electrode | 300*500mm | 400*600mm | ||
| The lowwer of lowwer electrode | 350*600mm | 500*800mm | ||
| The range of tempreture | 30~200 oC adjustable | |||
| Welding time | 0---10sdjustable | |||
| Productivity | < 3500times/8hours | |||
| Net weight | 280kg | 330kg | 360kg | 420kg |
| Overall dimension | 1720*1100*1450 | 1720*1100*1500 | 1800*1200*1600 | 2500*1500*1700 |

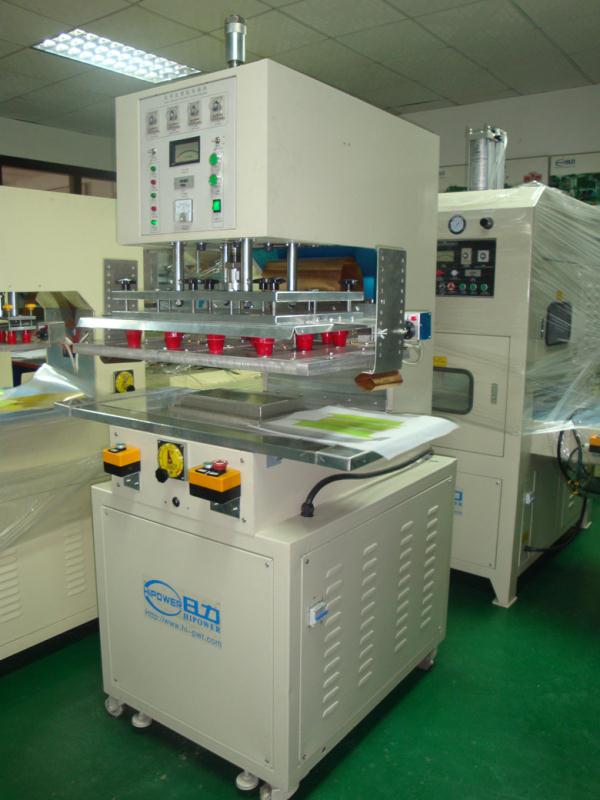

On the site:

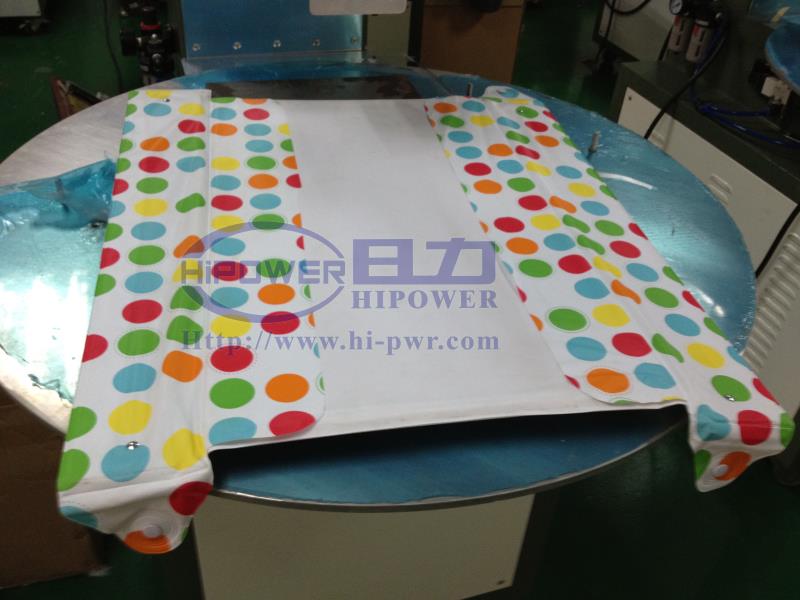

Sample view:

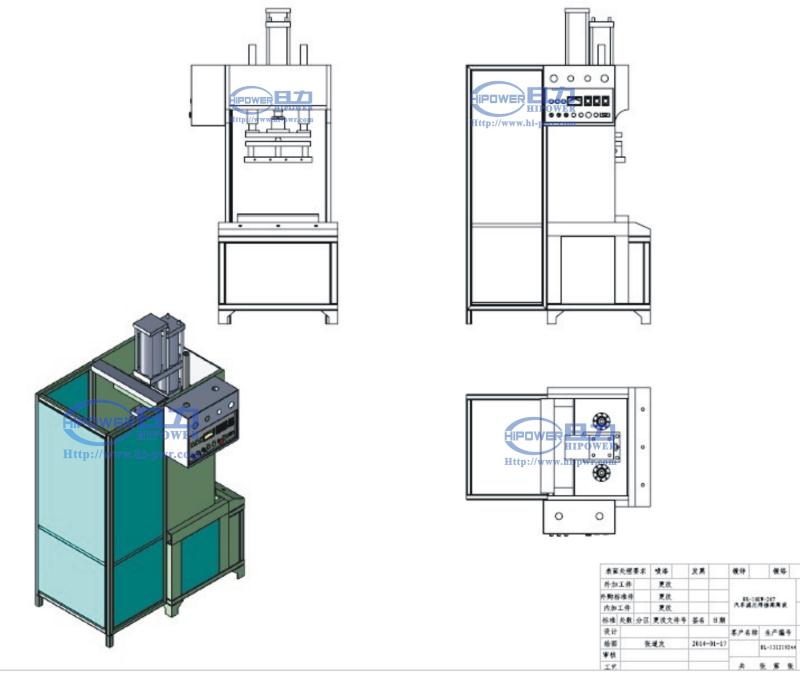

Drawing:
