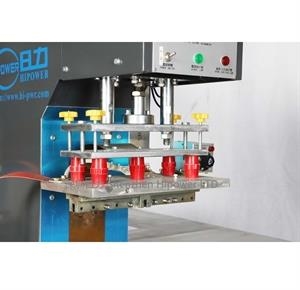

Special Double heads High Frequency Welding Machine

Model: HR-8000TA
Scope Of Application: Applied for high frequency welding and cutting for PVC or PVC including 30% up, like blister packaging, inflatable toy, raincoat, or relatives
Features: High frequency plastic welding machine is usually made with Two-head style structure, also called Dual-style High frequency welding machine.High frequency plastic welding machine,Padal operated High frequency welding machine. Dual Padel operated High radi

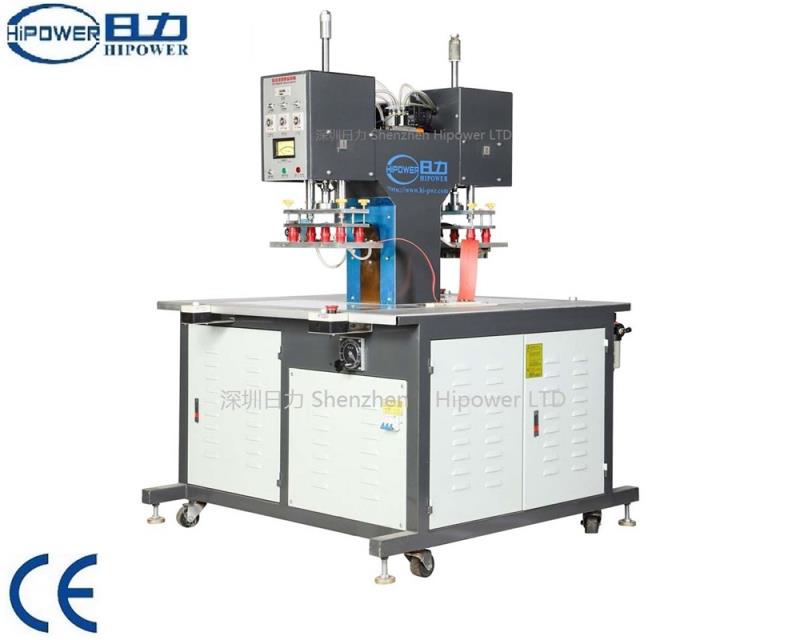

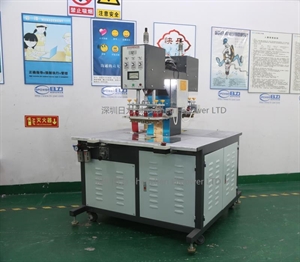

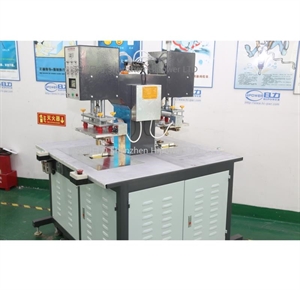

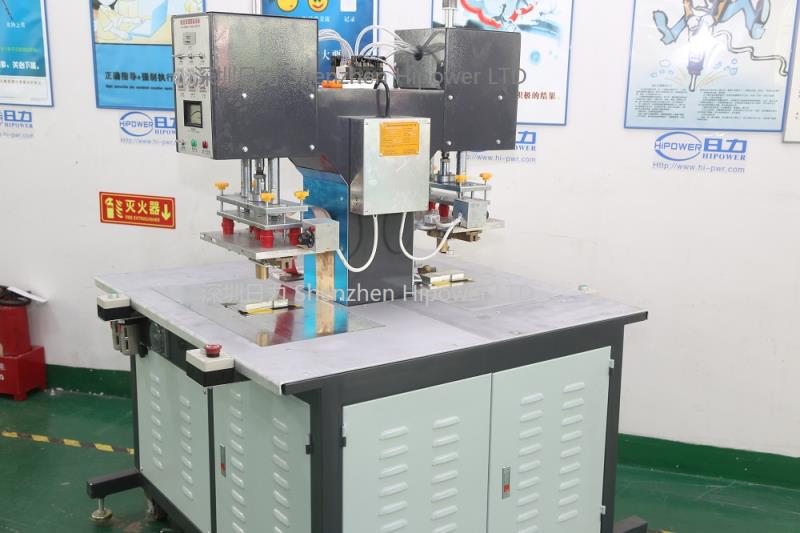

HR-8000TA Double heads High Frequency Welding Machine

Dual head style pneumatic high frequency welding machine

Principle
High Frequency welding is using the high frequency electromagnetic waves to heat and
soften the join of certain plastics which have chemical dipoles, such as PVC, PA and acetates.
When a press/die descents to apply pressure on the surface of two pieces of material,
the high frequency wave are passed through the die and table. The high frequency field
causes the molecule to vibrate and generate heat from vibration. The process can be
continuous and able to perform localized heating.

 Application:
Toy stationery industry such as: gift bag, basketball embossing,phase thin, album, name card, welding, mouse pads, lens box  welding&embossing, etc;
Leather leather bags industry such as:  leather, leather welding, embossing,  fusing and  towel bag embossing, etc;
PVC door MATS embossed, door MATS welding, plastic door MATS embossing, carpet embossed, mat welding, pads embossing, cushion embossing and s-type pads welding, electric car ottomans embossed, pads welding, locomotive cushion, seat welding etc;
Automobile interior trim products :steering wheel covers, anti lattice thermal bonding, reflective stick thermal bonding, reflective film thermal bonding, automobile cushion, cushion, pads welding, back of a chair, pads embossing, etc;

other industries: life jacket, drifting boat, drifting boat,curtain, shower curtain, gas pool, pool, mattess,,inflatable sofa, water bag etc.

Feature of machine:
High frequency plastic welding machine is usually made with Two-head style structure, also called Dual-style High frequency welding machine.High frequency plastic welding machine,Padal operated High frequency welding machine. Dual Padel operated High radio sealing machine . the welding time is adjustable,Two horn alternate working with interlock
High frequency plastic welding machine is designed for welding object which is hard to positioning, the pressure is set according different needs, adpots the Lever Principle structure put the average pressure on the material.
High frequency plastic welding machine adopt  high value-Q  electronic oscillation tubes, international standard frequency with stable output .equips with sel-protection system, the high frequency stops when overload. avoid damage mould and the material.


Technical parameter:

Model HR-4000TA HR-5000TA HR-8000TA HR-10KWTA
Power 4000W  5000W   8000W  10000W
Voltage  220v/380V   50/60HZ
Frequency 40.68MHz    27.12MHz
Input power    7KVA          8KVA       15KVA 18KVA
Rectifier silicon diode
Oscillation tube 7T62RB     7T85RB     7T69RB        E3069RB
Max pressure 200kg 250kg 280kg 300kg
Operation mode pneumatic
Max distance of electrodes   200mm
The moving distance of active horn  100mm
The size of upper electrode 120*290mm
The lowwer of lowwer electrode 350*700mm
The range of tempreture 30~200 oC adjustable
Welding time  0---10sdjustable
Productivity < 3500times/8hours
Net weight 280kg 330kg 360kg 420kg
Overall dimension 1720*1100*1450 1720*1100*1500 1800*1200*1700 2500*1500*1700
