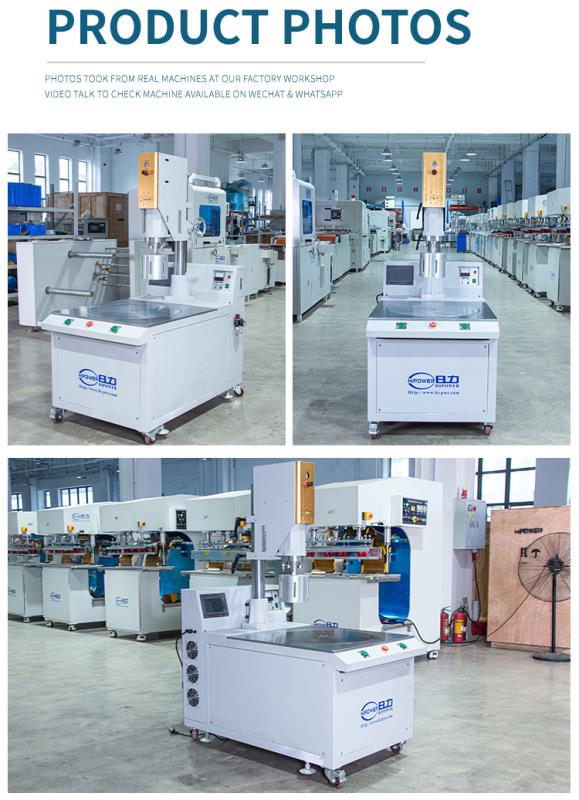

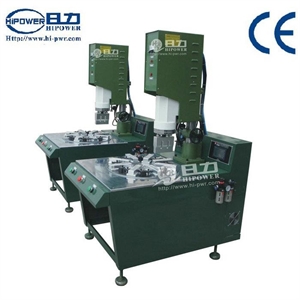

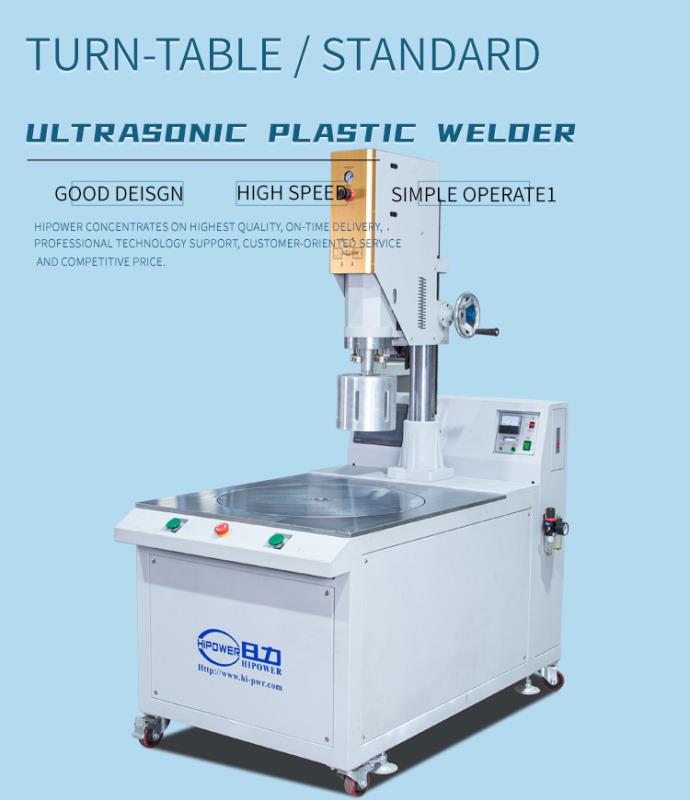

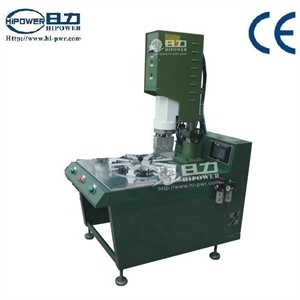

HC-2020D-8AC Auto rotatable multi-position plastic welder

Model：	HC-2020D-8AC
Scope Of Application：	Apply for ABS, PE, PC, PS, PVC, PP, ABS & PC complex, Acrylic etc. materials
Features：	ultrasonic welding: Ultrasonic Vibration transmit the energy via welding horn to plastic workpiece surface, generating localized hyperthermia to melt the plastic surface. Under pressure of the ultrasonic welding machine, make 2 pieces of plastic workpiece

HC-2020D-8AC Auto rotatable multi-position plastic welder
PLC precision control circuit,auto overload protection system.
Taiwan high precision decollator,zero error.
ultrasonic welding: Ultrasonic Vibration transmit the energy via welding horn to plastic workpiece surface, generating localized hyperthermia to melt the plastic surface. Under pressure of the ultrasonic welding machine, make 2 pieces of plastic workpiece to weld, get a good-looking and stable entire product.
Ultrasonic embedding: Putting screw, nut or other metal into plastic workpiece.via transmitting ultrasonic energy to the metal. After highly speed vibration produce heat, make the metal directly embed into the plastic workpiece under ultrasonic machine pressure.
Applied range of Ultrasonic welding machine:
Widely used in aviation, boats, cars, electrical appliance, package, toys, electric, medical, auto parts, fishing and textiles etc. For example: disposable transfusion filter, blood plasma whizzer, valve bag, plastic wine bottle cap, dish washer waterwheel, plastic toys, car lamp, plastic fake bait, charger shell and mobile hanging drop welding, disposable lighter shell welding etc. Besides: car door plaque welding, car motormeter welding, car lamp car mirror welding, sun visor welding, car inside accessories welding.
Ultrasonic Plastic Welding Machine Theory:

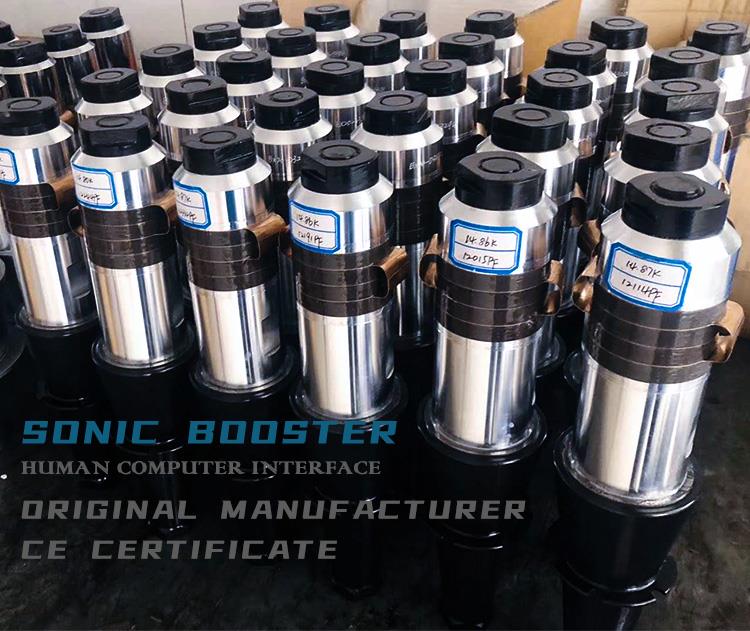

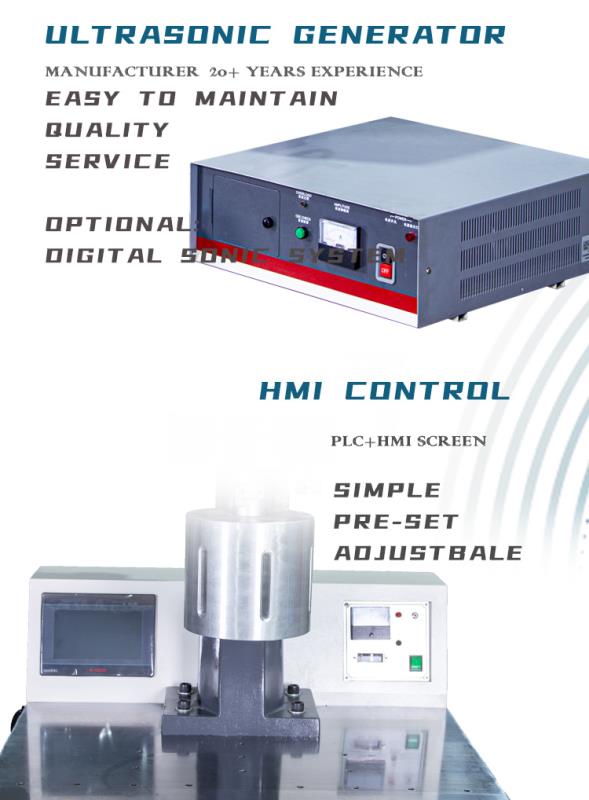

Transmitting 50/60 hz electric current into 15, 20, 35 KHz electric power via ultrasonic generator. The high frequency electric power transmitted into same frequency mechanical movement, then the mechanical movement transmitted to ultrasonic horn via amplitude modulator. The horm transmit the ultrasonic vibration energy to the weld part of the workpiece. In this part the ultrasonic vibration energy changes into heat via friction, to melt the plastic. Ultrasonic plastic welding time and pressure of horn is adjustable. It depends on transducer and amplitube modulator.

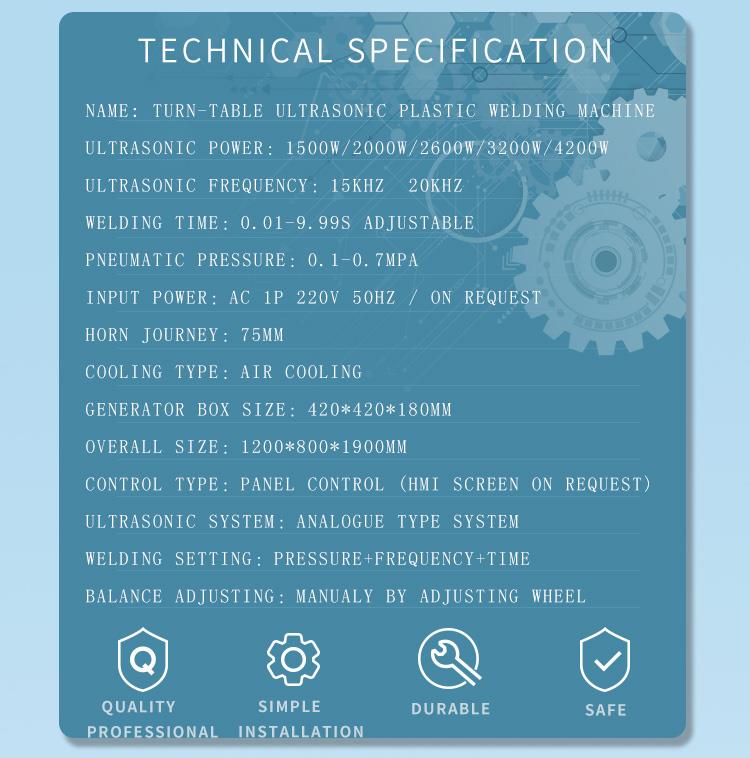

Hipower ultrasonic machine technique parameters:
Model: HC-2020D-8AC
Power output: 2000w
Frequency: 20KHz
Power Supply: 220V 50/60Hz

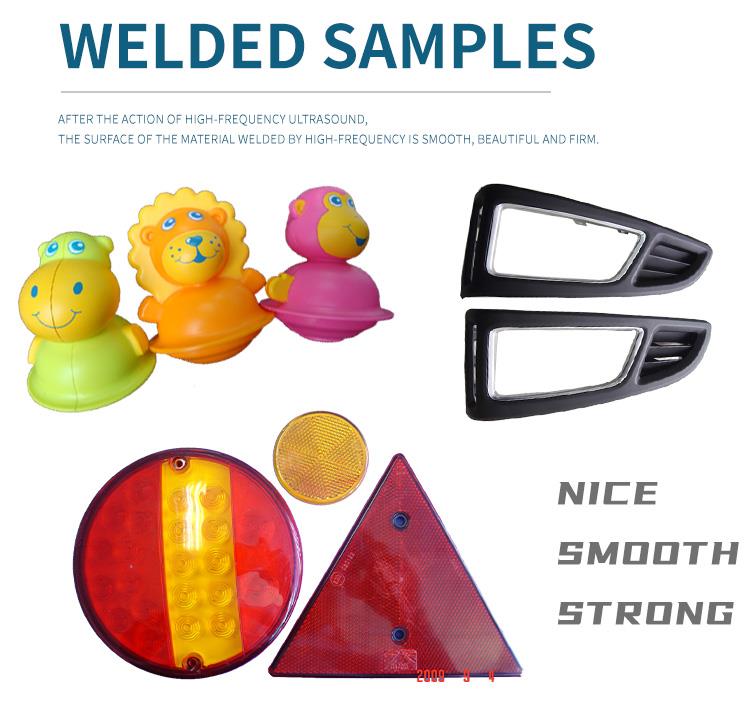

Sample and mold view:
