HC-4215D-4AC ultrasonic cylinder bottom welding machine

Model：	HC-4215D-4AC
Scope Of Application：	Ultrasonic welding the transparent cylinder bottom
Features：	IC circuit precision control, automatic overload protection systemadopting digital switch, 1/100 precision re-set controladjustable horizontal level, easy control welding hornhigh O transducer, optimized outputHave resonant frequency when the lo

Product Introduction

1.Ultrasonic welding
2: for welding bottom of Cylinder
3:.Welding bottom of plastic tubes
4: ISO9001:2008
5:and CE

Mainly Application

ransparent cylinder bottom sealing machine

Detailed Character

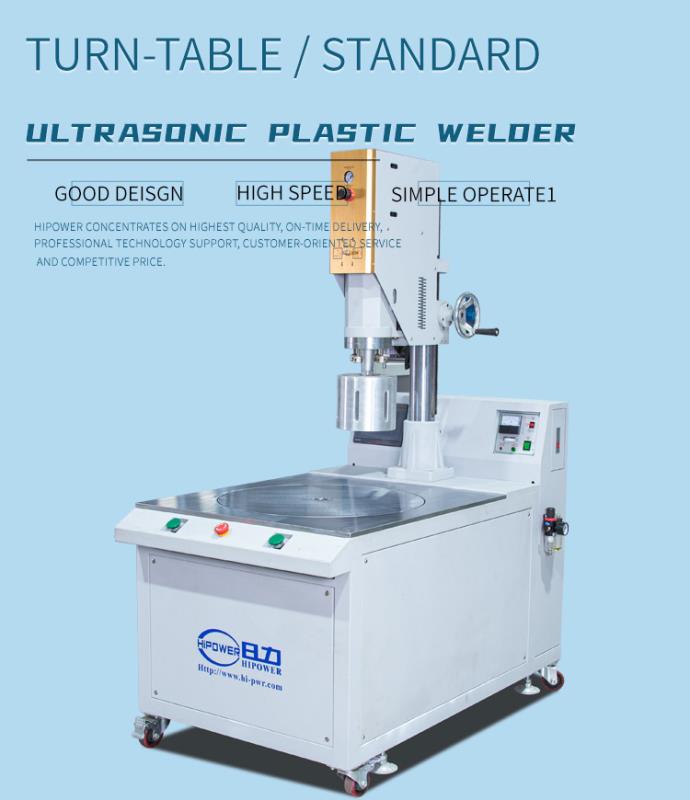

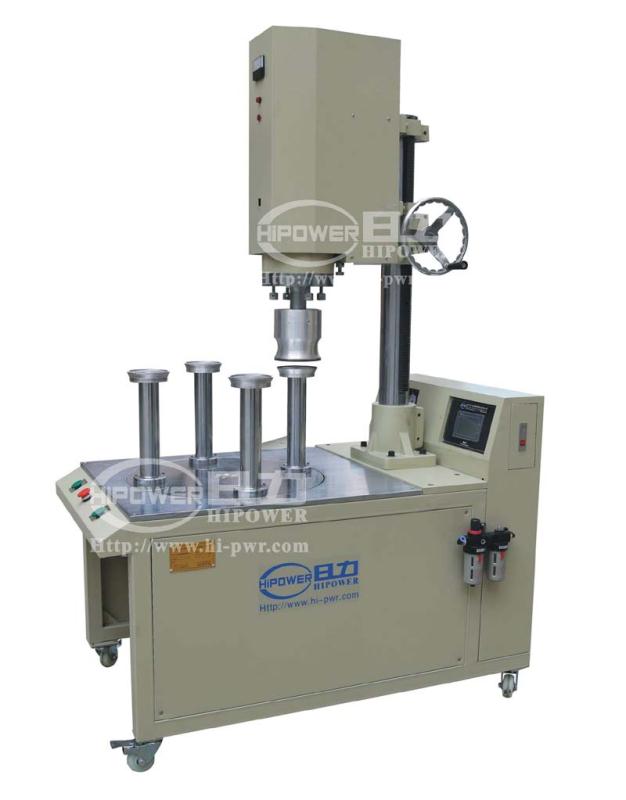

Turntable welding machine for welding bottom of Cylinder with 4 postion

IC circuit precision control, automatic overload protection system
adopting digital switch, 1/100 precision re-set control

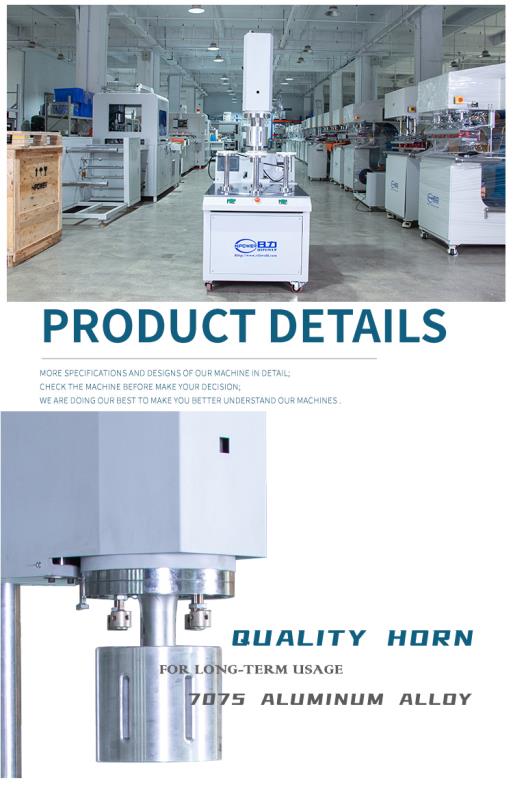

adjustable horizontal level, easy control welding horn

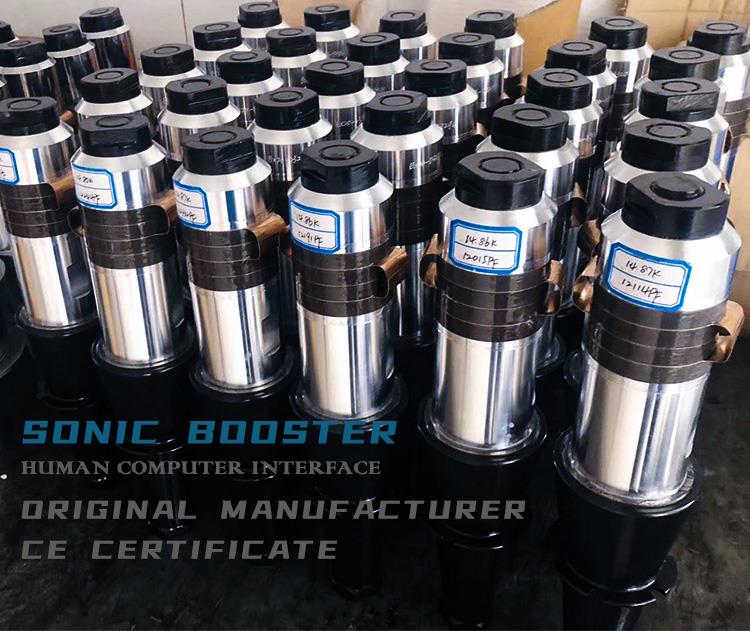

high O transducer, optimized output

Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn

Square column and column airframe structure is optional, the straight line guide bearing, the precise matching device
Using the turbine rotation to adjust the machine movement, which is better than normal

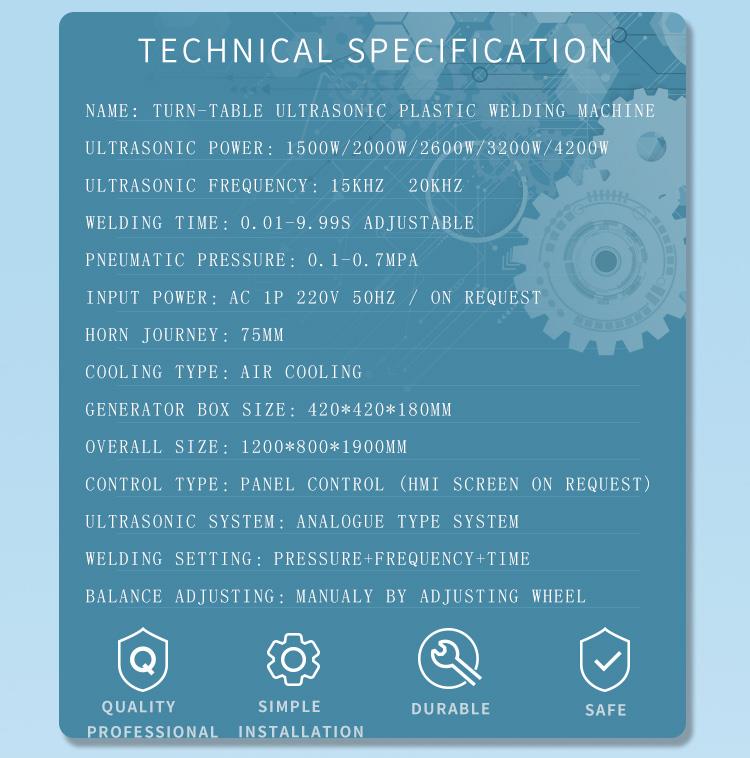

Techincal parameter:

Model	HC-4215D-4AC
Input power	4200W
Frequency	15KHZ
Input voltage	220V
Oscillation system	Atuo-stimulating
Output time	0.01-99S
Welding area	250mm
Compressor	1HP
Net weight	115kg
