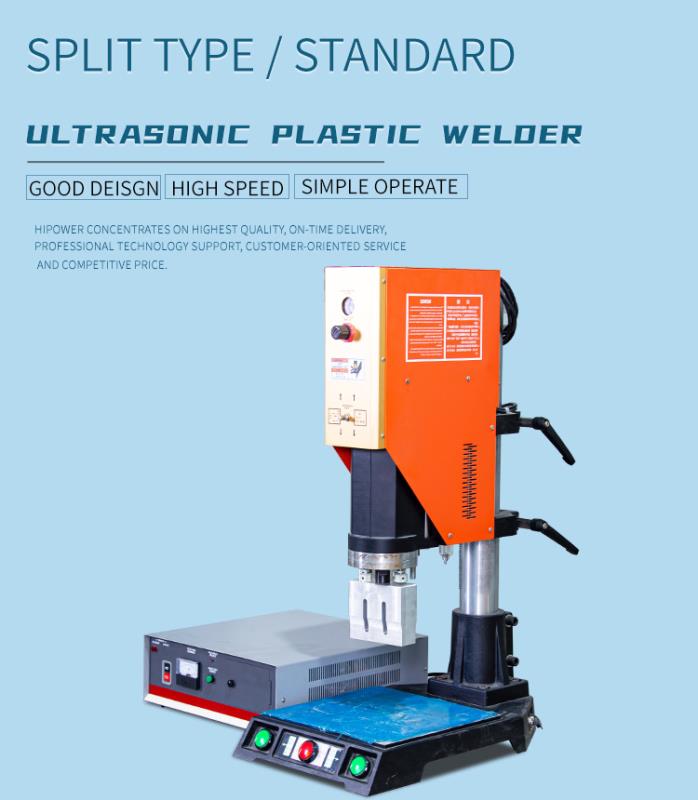

HC-1520 Ultrasonic plastic welding machine for PVC

Model：	HC-1520
Scope Of Application：	Applied for ABS,PE,PC,PS,PVC,PP,ABS and PC complex, Acrylic and relatives, like toys, battery case, Stationery etc.
Features：	The straight line guide bearing, the precise matching deviceThe horizontal zoom type structures of four corners allocate that the board four corners at bottom can transfer the standardJapan Huang Paigang becomes a ware, and the horizontal zoom type st

Ultrasonic Plastic Welding Machine Series

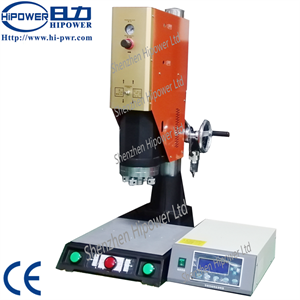

Name: HC-1520 1500W 20KHz Ultrasonic Plastic Welding Machine
Applied range of Ultrasonic welding machine:

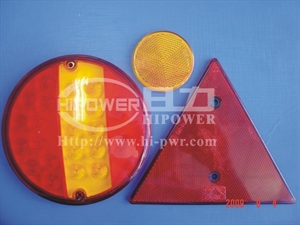

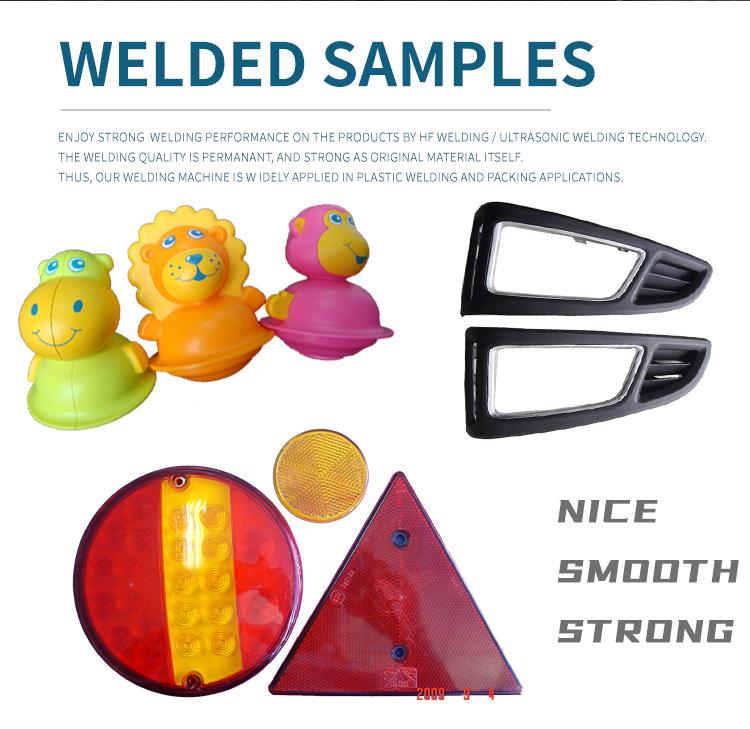

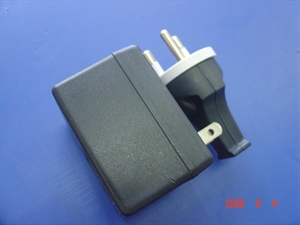

Widely used in aviation, boats, cars, electrical appliance, package, toys, electric, medical, auto parts, fishing and textiles etc. For example: disposable transfusion filter, blood plasma whizzer, valve bag, plastic wine bottle cap, dish washer waterwheel, plastic toys, car lamp, plastic fake bait, charger shell and mobile hanging drop welding, disposable lighter shell welding etc. Besides: car door plaque welding, car motormeter welding, car lamp car mirror welding, sun visor welding, car inside accessories welding.Apply for ABS, PE, PC, PS, PVC, PP, ABS & PC complex, Acrylic etc. materials.

Character:
The straight line guide bearing, the precise matching device
The horizontal zoom type structures of four corners allocate that the board four corners at bottom can transfer the standard
Japan Huang Paigang becomes a ware, and the horizontal zoom type structure of lasting durable horn allocates that the board four corners at bottom can dive flatly
Frequency modulation and the frequency automatic equalization circuit
Debug the soft Boot circuit of equipment, and avoid damaging the mould
Squre column and column airframe structure is optional

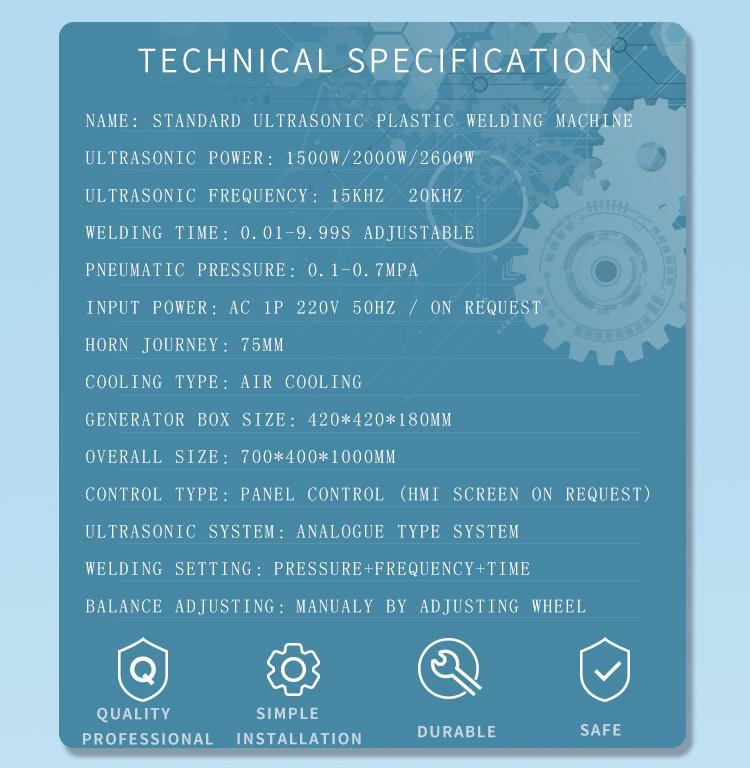

Hipower ultrasonic machine technique parameters:

Model	HC-1520 HC-2020 HC-3220
Input power	1500w 2000W 3200W
Frenquency	20KHZ
Input voltage	220V
Cooling system of welding horn	Wind cooling
The moving distance of active horn	70mm
Oscillation system	Auto-stimuilating
Output time	0.01-99S
Pressure	Pressure bound 1-7bar
Welding area	∮100mm ∮150mm ∮180mm
