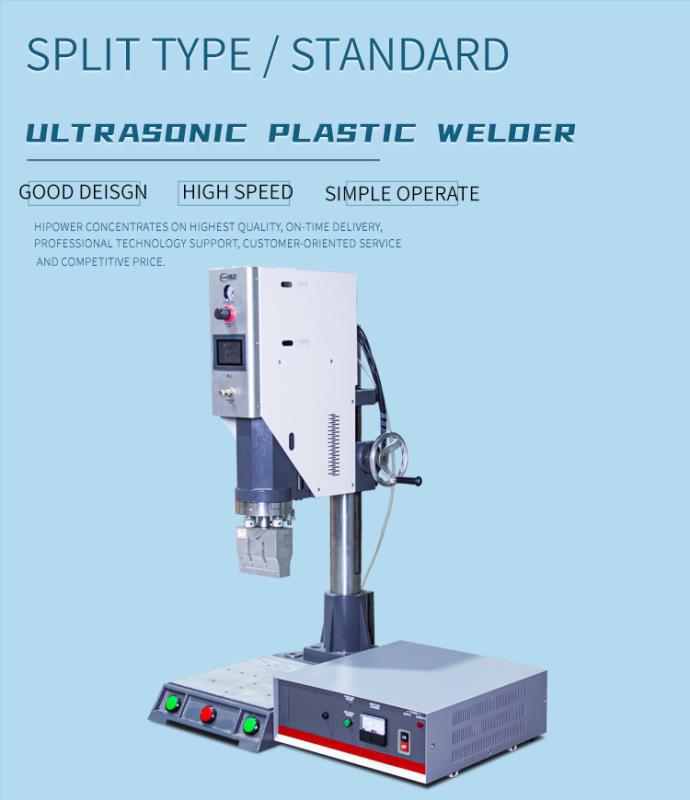

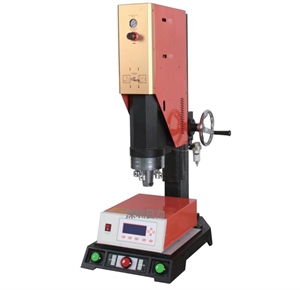

HC-2615 PLC ultrasonic plastic welder with CE

Model：	HC-2615 PLC
Scope Of Application：	Applied for ultrasonic welding of ABS,PE,PC,PS,PVC,PP,ABS and PC Complex, Acrylic and Relatives
Features：	IC circuit precision control, automatic overload protection systemAdopting digital switch, 1/100 precision re-set controlAdjustable horizontal level, easy control welding hornHigh Q value transducer, optimized output

HC-2615 PLC ultrasonic plastic welder

ultrasonic welding: Ultrasonic Vibration transmit the energy via welding horn to plastic workpiece surface, generating localized hyperthermia to melt the plastic surface.
Under pressure of the ultrasonic welding machine, make 2 pieces of plastic workpiece to weld, get a good-looking and stable entire product.
Ultrasonic embedding: Putting screw, nut or other metal into plastic workpiece.via transmitting ultrasonic energy to the metal.
After highly speed vibration produce heat, make the metal directly embed into the plastic workpiece under ultrasonic machine pressure.

Ultrasonic Plastic Welding Machine Theory:

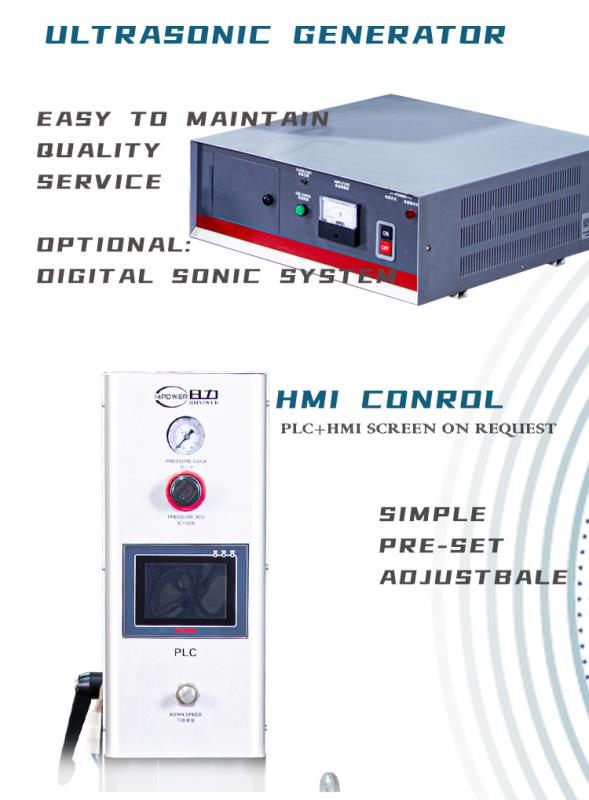

Transmitting 50/60 hz electric current into 15, 20, 35 KHz electric power via ultrasonic generator. The high frequency electric

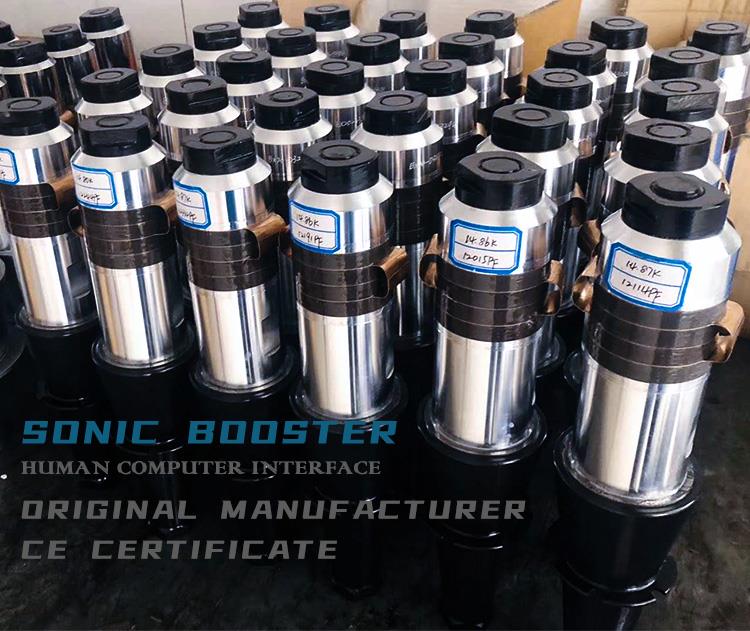

power transmitted into same frequency mechanical movement, then the mechanical movement transmitted to ultrasonic horn via amplitude modulator.

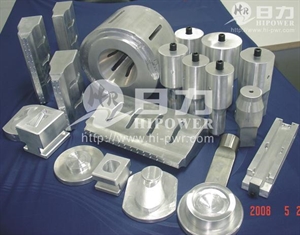

The horm transmit the ultrasonic vibration energy to the weld part of the workpiece. In this part the ultrasonic vibration energy changes into
heat via friction, to melt the plastic. Ultrasonic plastic welding time and pressure of horn is adjustable. It depends on transducer and amplitube modulator.

Applied range of Ultrasonic welding machine:

Widely used in aviation, boats, cars, electrical appliance, package, toys, electric, medical, auto parts, fishing and textiles etc.

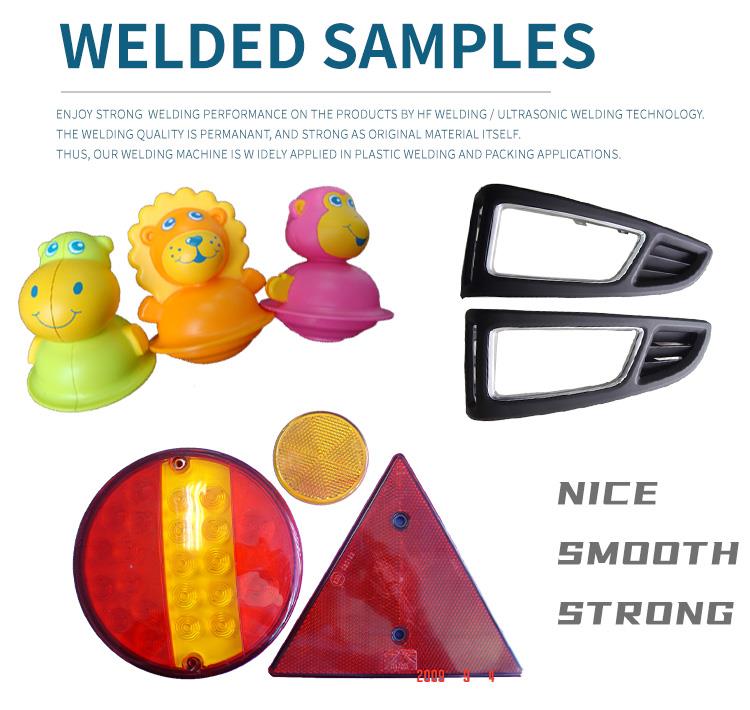

For example: disposable transfusion filter, blood plasma whizzer, valve bag, plastic wine bottle cap, dish washer waterwheel, plastic toys,

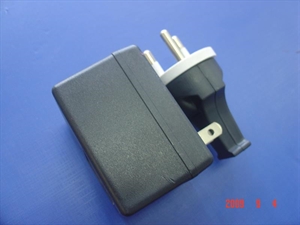

car lamp, plastic fake bait, charger shell and mobile hanging drop welding, disposable lighter shell welding etc. Besides: car door plaque welding,
car motormeter welding, car lamp car mirror welding, sun visor welding, car inside accessories welding

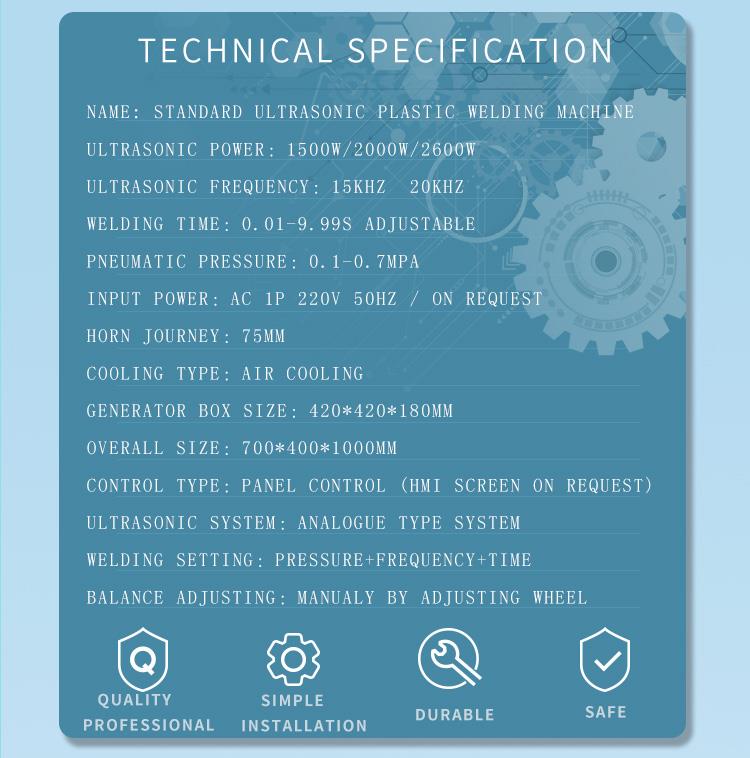

Model	HC-2615 HC-3215 HC-4215
Input power	2600w 3200W 4200W
Frenquency	20KHZ
Input voltage	220V
The Max Input Power	1.2KW 1.9KW 2.3KW
The moving distance of active horn	70mm
Oscillation system	Auto-stimuilating
Output time	0.1-99S
Pressure	Pressure bound 2-7bar
Welding area	¡Ó200mm ¡Ó220mm ¡Ó250mm
Compressor	1HP-2HP
NET	110kg 110kg 115kg
