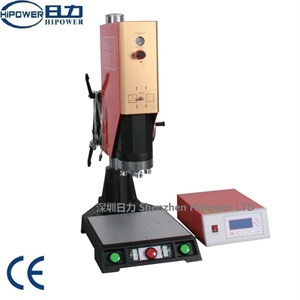

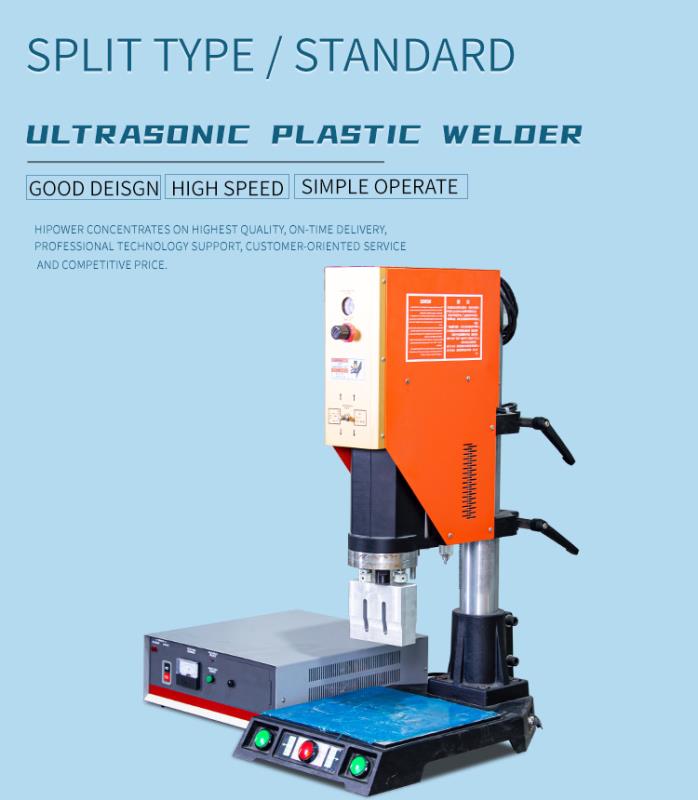

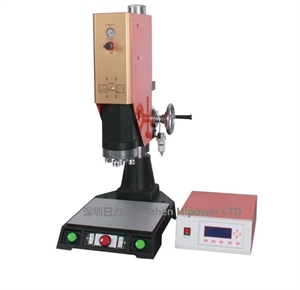

HC-2020 Standard Ultrasonic Plastic Welding Machine

Model: HC-2020
Scope Of Application: Applied for ultrasonic welding of ABS,PE,PC,PS,PVC,PP,ABS and PC Complex, Acrylic and Relatives
Features: IC circuit precision control, automatic overload protection systemAdopting digital switch, 1/100 precision re-set controlAdjustable horizontal level, easy control welding hornHigh Q value transducer, optimized output

HC-2020 Standard Ultrasonic Plastic Welding Machine

Characters:

IC circuit precision control, automatic overload protection system

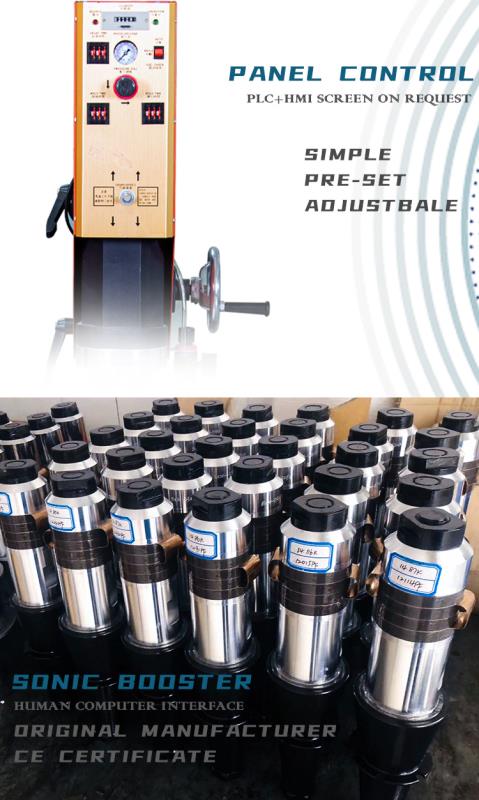

Adopting digital switch, 1/100 precision re-set control

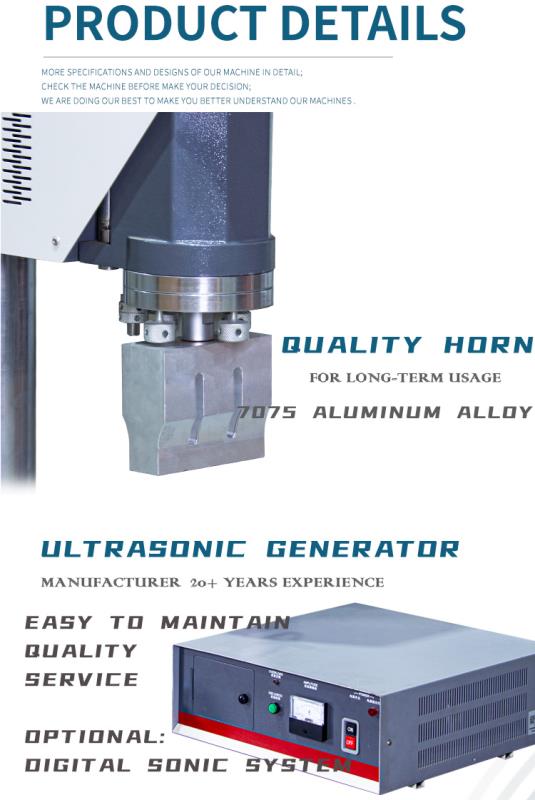

Adjustable horizontal level, easy control welding horn
High Q value transducer, optimized output

Application:

ultrasonic welding: Ultrasonic Vibration transmit the energy via welding horn to plastic workpiece surface, generating localized hyperthermia to melt the plastic surface.

Under pressure of the ultrasonic welding machine, make 2 pieces of plastic workpiece to weld, get a good-looking and stable entire product.
Ultrasonic embedding: Putting screw, nut or other metal into plastic workpiece.via transmitting ultrasonic energy to the metal. After highly speed vibration produce heat,
make the metal directly embed into the plastic workpiece under ultrasonic machine pressure.
ultrasonic riveting: To make metal and plastic or 2 pieces of different materials plastic weld together, you can use ultrasonic riveting,
to make the welding product not easily brittlemen, elegant looking and stable.
Ultrasonic spot welding: using small horns on ultrasonic machine, to weld 2 plastic workpieces on many spots, or whole row dentation horns directly press
on 2 pieces of plastic, to get the ultrasonic spot welding effect.
Ultrasonic forming: use ultrasonic machine to melt plastic workpiece very soon, when the plastic solidify, the metal or other material plastic will become firm.
Ultrasonic Plastic Welding Machine Theory: Transmitting 50/60 hz electric current into 15, 20, 35 KHz electric power via ultrasonic generator.
The high frequency electric power transmitted into same frequency mechanical movement, then the mechanical movement transmitted to ultrasonic horn via amplitude modulator.
The horm transmit the ultrasonic vibration energy to the weld part of the workpiece. In this part the ultrasonic vibration energy changes into heat via friction, to melt the plastic.
Ultrasonic plastic welding time and pressure of horn is adjustable. It depends on transducer and amplitube modulator.

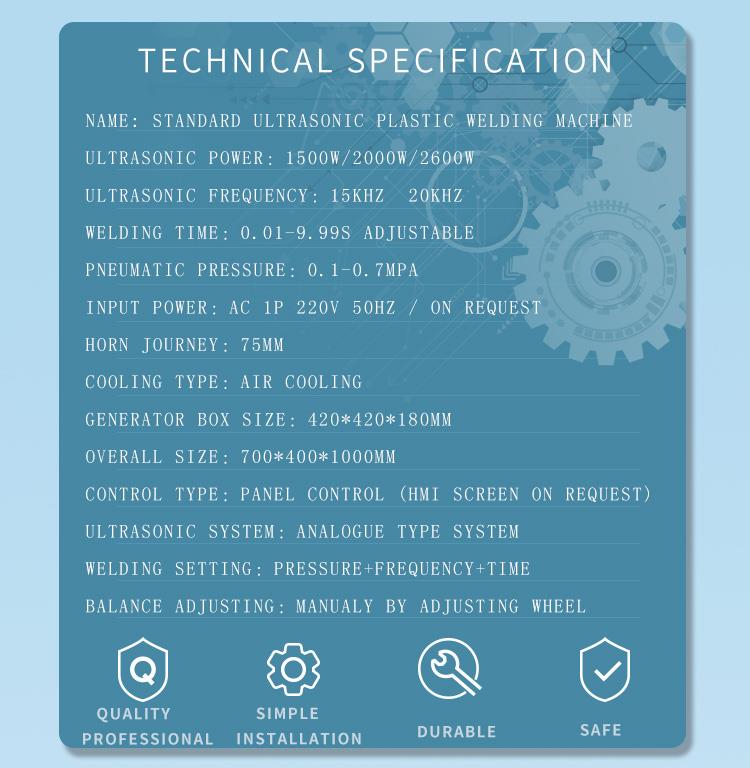

Model
HC-1020          HC-1520           HC-2020
Input power
1000w            1500W             2000W
Frenquency
20KHZ
Input voltage
220V
Cooling System Wind Coding
The moving distance of active horn
70MM
Oscillation system
Auto-stimuilating
Output time
0.01-99S
Pressure
Pressure  bound  2-7bar
Welding area
¡Ó100mm         ¡Ó150mm          ¡Ó180mm
Compressor
1HP
NET
100kg             110kg               120kg
