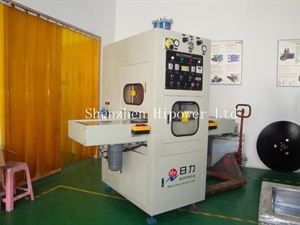

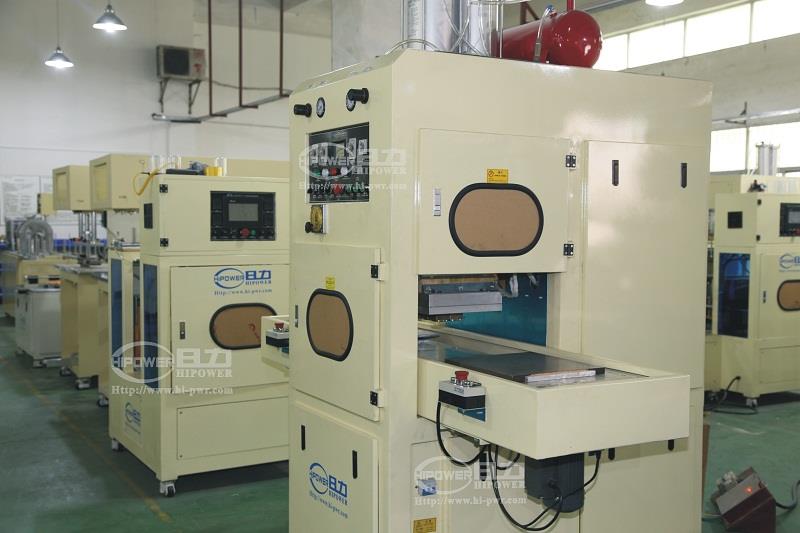

HR-10KWT High Frequency Blister Welding and Cutting Machine

Model：	HR-10KWT
Scope Of Application：	Mainly apply for welding and cutting APET,PETG,GAG, Double side clamshell,blister+cardboard,leather,OPP,PU and many other environment-friendly materials.
Features：	for welding and cutting simultaneously application. This kind of machine can be also called as hf simultaneous welding and cutting machine.

High Frequency Blister Welding and Cutting Machine

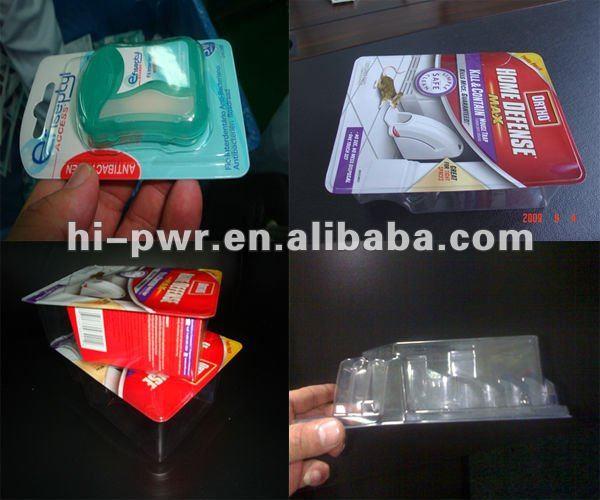

Application:

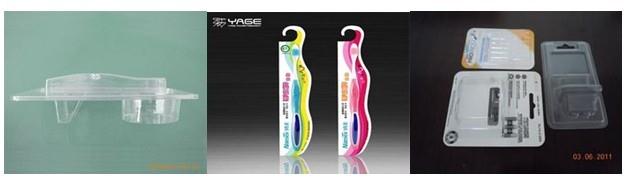

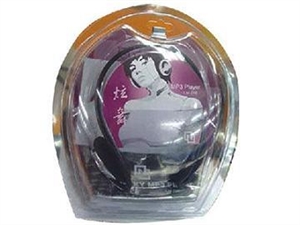

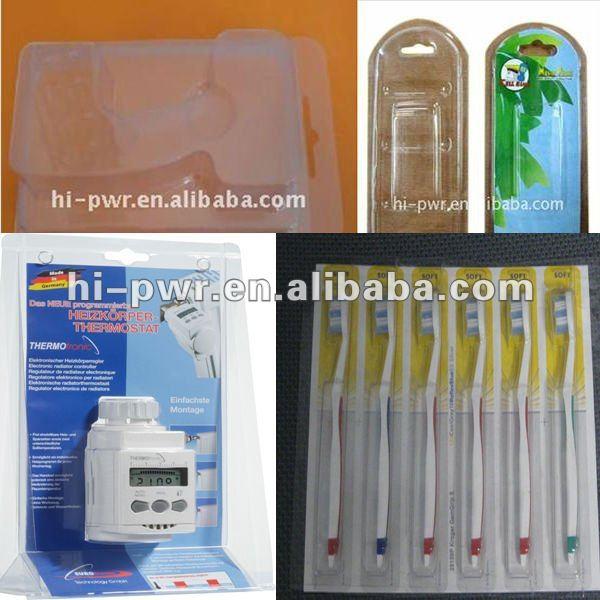

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages, But it is multipurpose machine, for it can be used for industry like PU leather cover for pad, automotive parts and car interior elements, safety vests, reflective signs, inflatable toys, cosmetics,folding packing box,.etc.
The HF blister packaging welder, by Shenzhen Hipower Ltd, is made for various industrial HF welding and sealing applications. It is designed for applications requiring precision large flat surface for product positioning and complex shape welds.
The HF blister packaging welder series have HF power outputs from 5KW to 25KW.

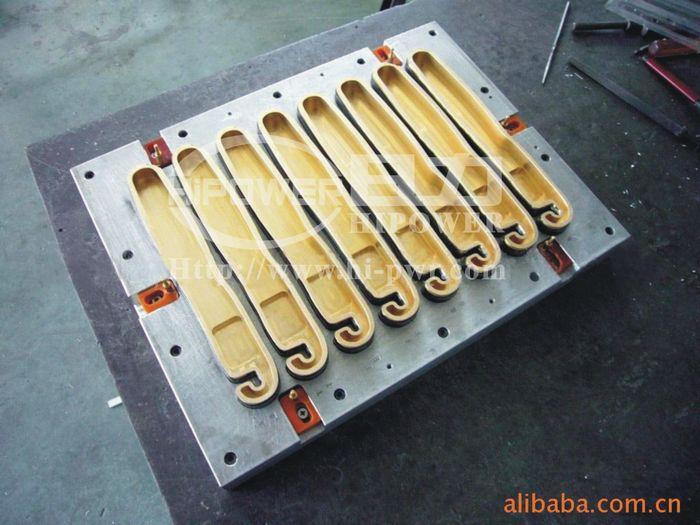

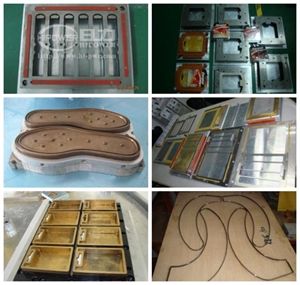

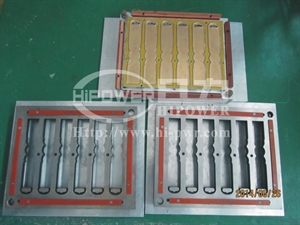

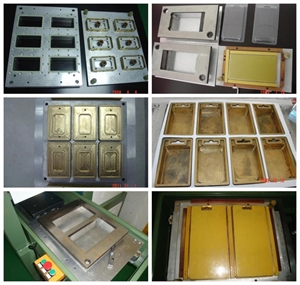

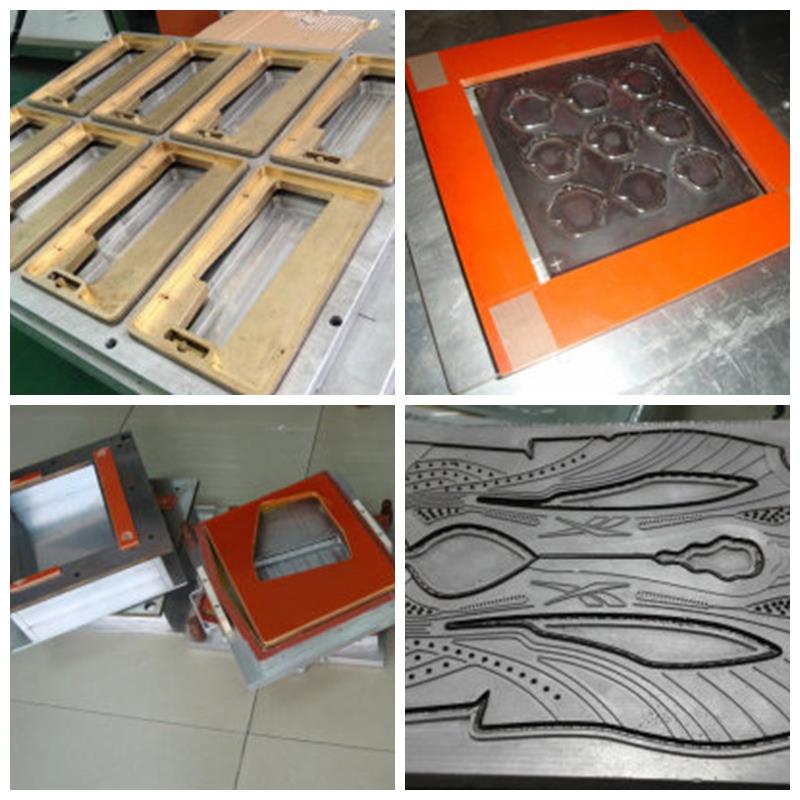

Machine is with special quick change electrode holder. Custom designed tooling and welding upper platen are available on request.
Machine General Features:
1. Anti-flash system, to protect the tooling / mould

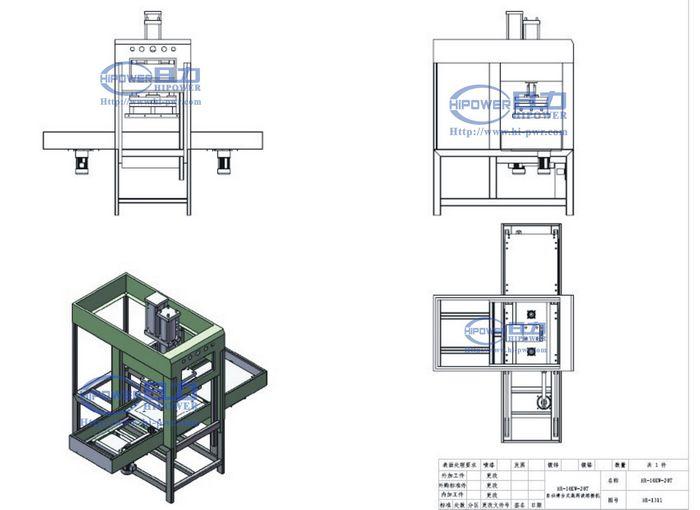

2. Welded H-frame steel structure with integrated HF generator
3. Custom requested size of work tables and welding platen acceptable
4. Adjustable parameter set in two working stations seprately
5. Two side manually or motor driven shuttle work trays
6. Heated Upper platen with thermostat, for helping HF sealing process
7. Close off HF welding function, the machine can be use as Standard Heat Welder
8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
9. European-model square high frequency vibration box, more reliable and stable in output

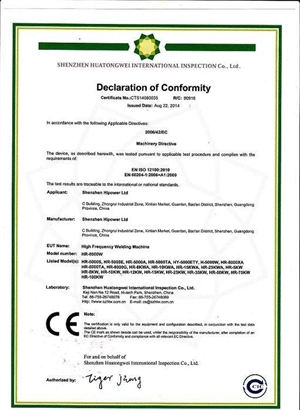

10. CE rated machine; factory verified by SGS and BV;
11. Customer's site installation, training & maintenance available
12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
13. High frequency welding press pneumatically operated

Specification:

Model：   HR-5000AT   HR-8000At HR-12KWT   HR-15KWT
Power：   5000W   8000W 12000W 15000W
Voltage： 380V/50/60HZ
Frequency：   27.12MHZ
Input power： 8KVA   15KVA 20KVA 25KVA
Rectifier：   SILICON DIODE
Oscillation tube： 7T85RB 7T69RB E3130    8T85RB
Max pressure：   350kg 500kg 800kg 1000kg
Max gap of electrodes： 200mm
Size of active horn： 175mm
Upper Electrode (W*H*L)： 200*350mm 400*600mm   500*700mm   600*900mm
Size of Work Table (L*W)：   400*600mm 600*800mm   600*800mm   600*900mm
Welding time：   0---10S Adjustable
Capacity：    ㄑ3500 Times/8H
Operation mode： Pneumatic Operated
