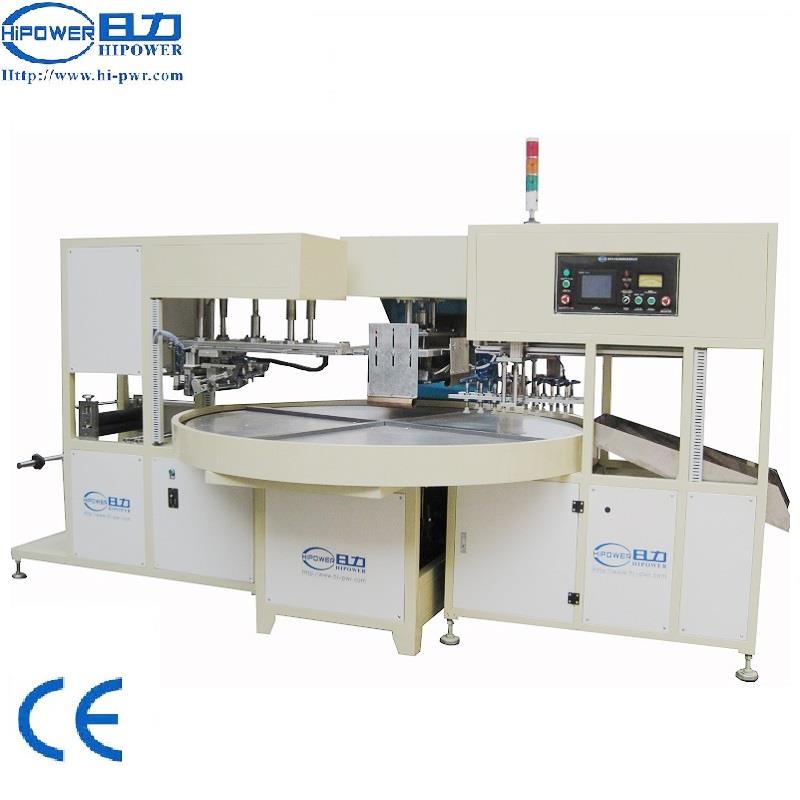

HR-10KW-4AC Automatic Double Heads Turn-table welding machine

Model：	HR-10KW-4AC
Scope Of Application：	applied for welding and cutting pvc material or welding other enviroment friend material like PET,PETG,APET,GAG and so on.
Features：	Double welding head, automatic turntable machine for welding only,

Automatic Double Heads Turn-table welding machine

Application:

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.

Specification:

Model：   HR-8KW-4AC HR-10KW-4AC HR-12KW-4AC HR-15KW-4AC
Power： 8000W 10000W 12000W    15000W
Voltage： 380V 50/60HZ
Frequency： 27.12MHZ
Input power：   15KVA 18KVA   20KVA   25KVA
Rectifier：   SILICON DIODE
Oscillation tube： 7T69RB E3069   E3130 8T85RB
Max pressure： 500kg 500kg 800kg   800kg

Max gap of electrodes： 200mm
Size of active horn： 175mm
Upper Electrode (W*H*L)：   300*400mm   300*400mm 350*450mm 400*500mm
Size of Work Table (L*W)： 350*450mm   350*450mm 400*500mm 400*500mm

Welding time： 0---10S Adjustable

Machine General Features:

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Optional Features:

1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure

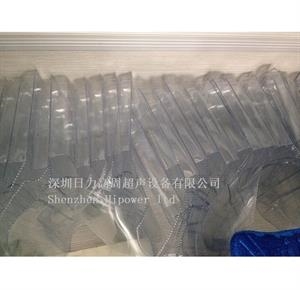

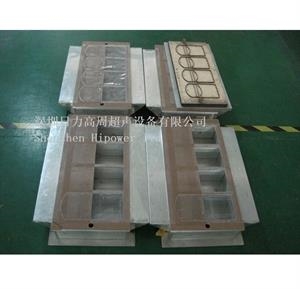

Sample Views:
