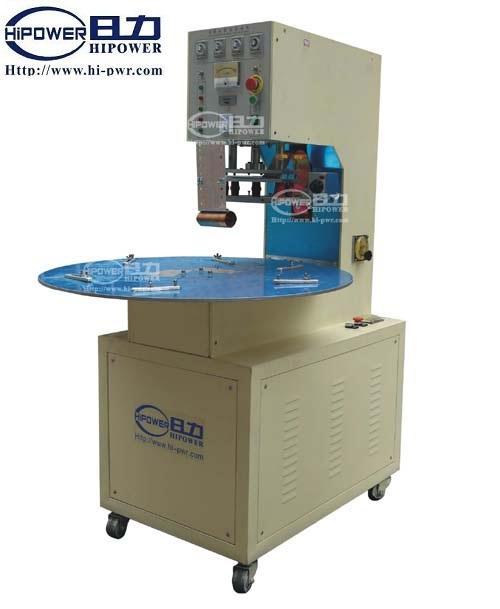

HR-5000E, Single Head HF Welding Machine
| Model： | HR-5000E |
| Scope Of Application： | Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up |
| Features： | Manual turn-table machine, semi-auto option |
HR-5000E, Single Head HF Welding Machine

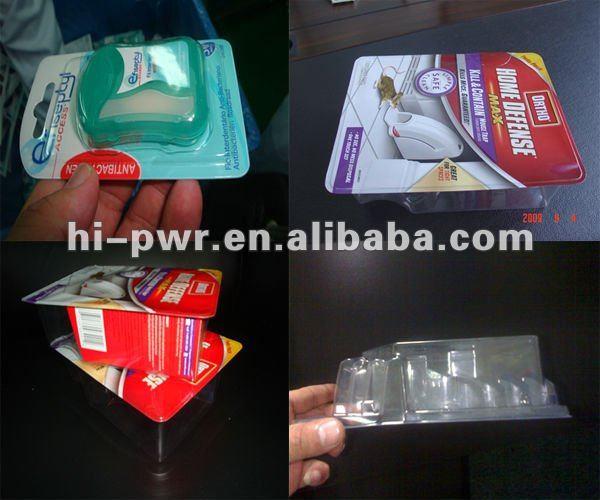

Application:

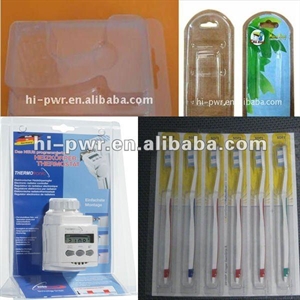

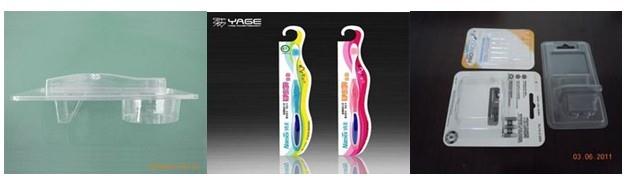

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...

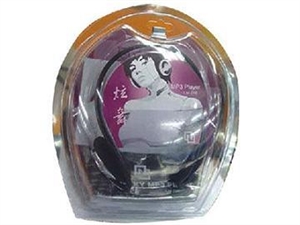

2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.
Machine General Features:

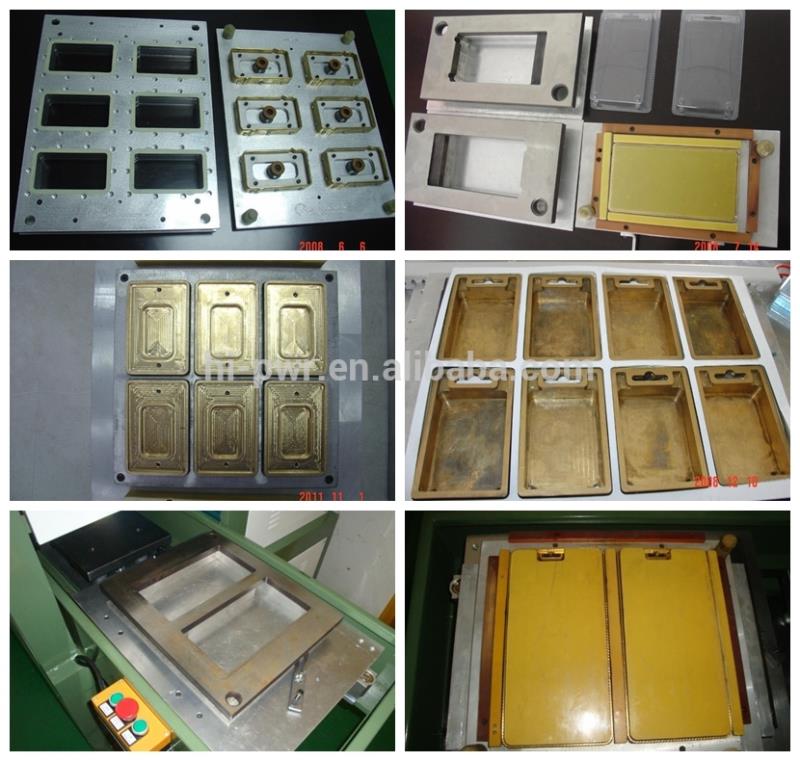

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator

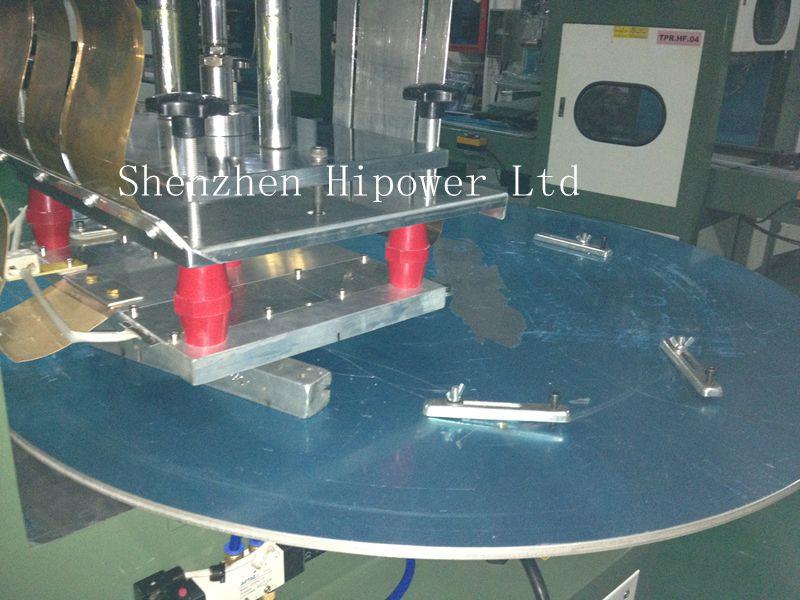

2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\

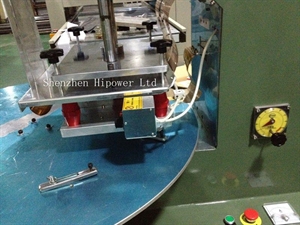

12. High frequency welding press pneumatically operated
Specification Sheet:
Model HR-5000E HR-8000E
Power 5000W 8000W
Anti-Spark System U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency 27.12MHZ
Input power 8KVA 15KVA
Rectifier SILICON DIODE
Oscillation tube 7T85RB 7T69RB
Max pressure 350KGS 500kg
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn 150mm

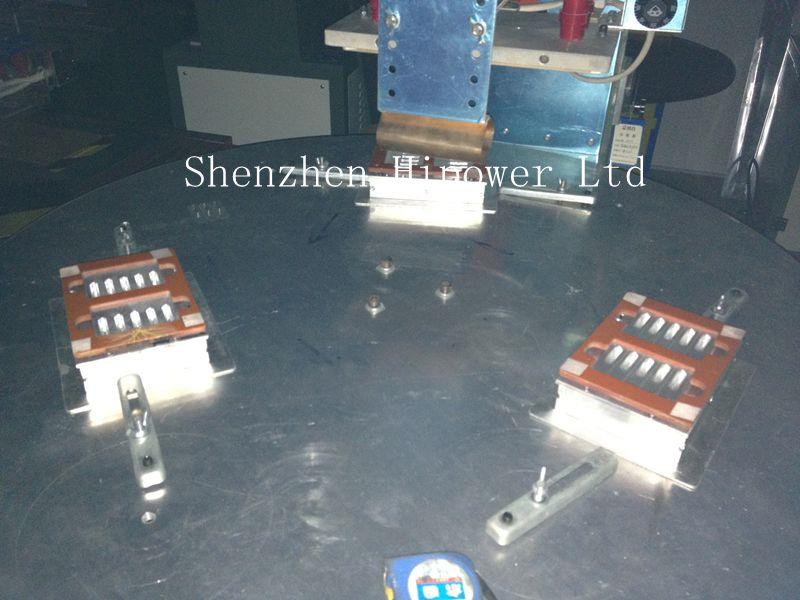

Working Stations: Standard 3 or 4 or 6 Rotary work stations
Upper Electrode (W*H*L) 200*350mm 300*500mm
Size of Work Table (L*W) 300*500mm 400*600mm
Welding time 0.01~9.99s adjustable
Net weight 400KGS 800kgs
Foreseen productivity: According to welding times and operator skills
