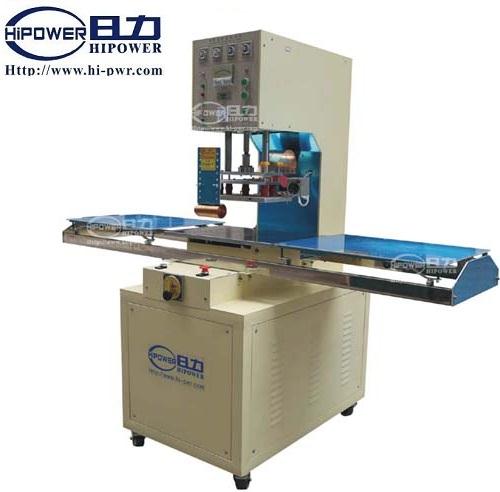

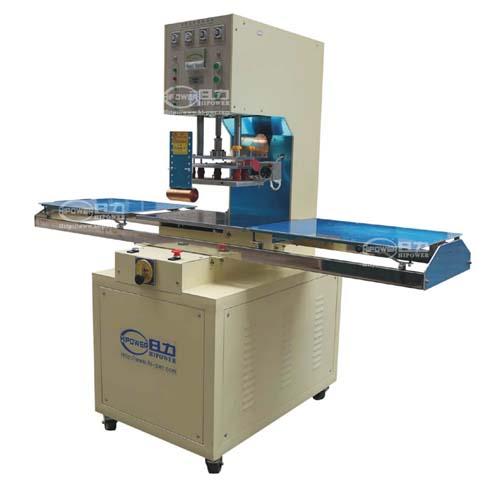

HR-5000A Shuttle Tray High Frequency Welder For Blister Packing

Model：	HR-5000A
Scope Of Application：	HF sealing machine only, Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, any PVC and PVC contained 30% up
Features：	manua slidin table machine, for semi-auto option

Shuttle Tray High Frequency Welder For Blister Packaging

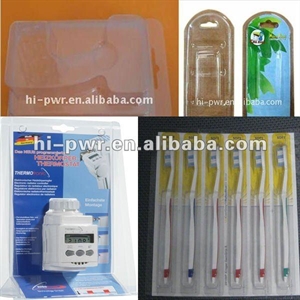

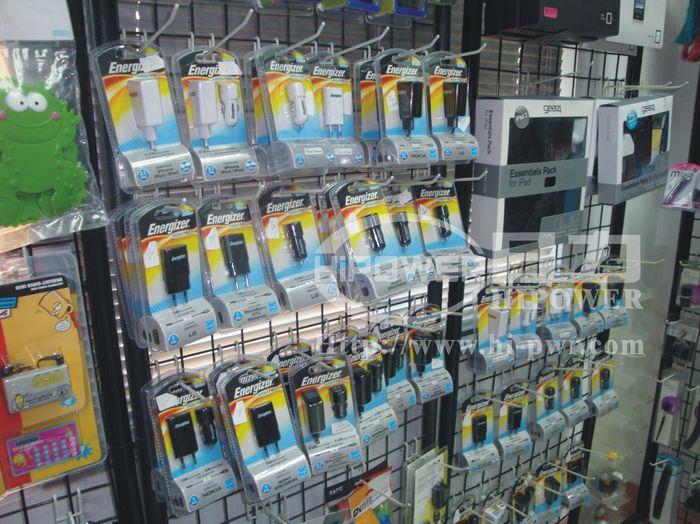

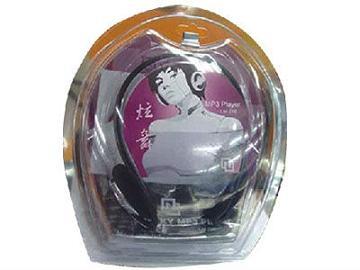

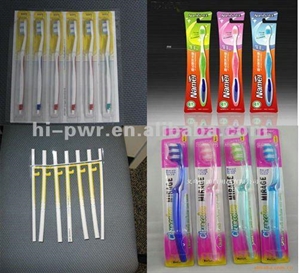

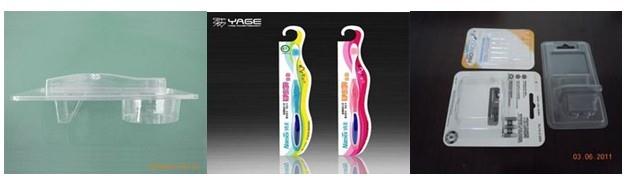

Application:

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,
Machine General Features:

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output

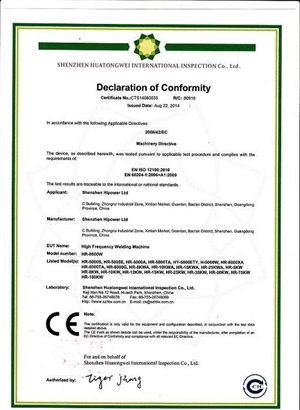

9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.\
12. High frequency welding press pneumatically operated

Spcification Sheet:

Model	HR-5000AT	HR-8000AT	HR-10KWT		HR-15KWT
Output Power of Generator	5000W	8000W	10000W		15000W
Anti-Spark System	U.S.A. PL-5557 High sensitive anti-spark system
Voltage	3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency	27.12MHz +/- 0,6 %
Input power	8KVA	15KVA	18KVA		25KVA
Rectifier	SILICON DIODE
Oscillation tube	7T85RB	7T69RB	E3069		8T85RB
Max pressure	350KGS	500kg	800kg		1000kg
Operation mode	Pneumatic Operated
Max gap of electrodes	200mm
Size of active horn	150mm
Upper Electrode (WHL)	200*350mm	400*600mm		500*700mm	600*900mm
Size of Work Table (L*W)	400*600mm	500*700mm		600*800mm	600*900mm
Welding time	0.01~9.99s adjustable
Net weight	400KGS	800kgs	900kgs		1200kgs
Foreseen productivity:	According to welding times and operator skills
