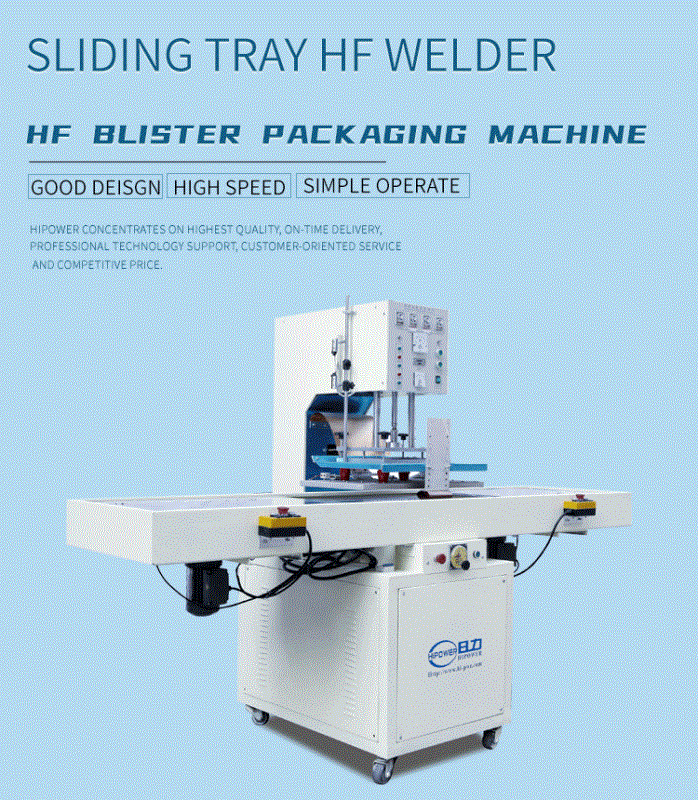

HR-8000AT automatic slide high frequency machine

Model：	HR-8000AT
Scope Of Application：	Applied for high frequency blister packaging for double-sides, soft crease box/case making, inflatable toy, raincoat and relatives, or any PVC and PVC contained 30% up
Features：	Auto sliding tray welding machine,

Auto Sliding Table H.F Blister Sealing machine

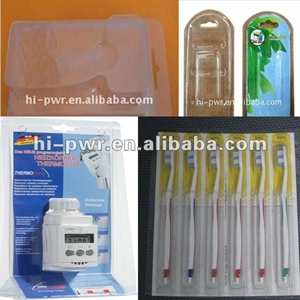

Application:

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...
2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages
5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging
It is especially designed for HF welding is a perfect machine for production of blister packages,

Machine Specification:

Model HR-5000AT      HR-8000AT HR-10KWT HR-15KWT
Power   5000W 8000W   10000W 15000W

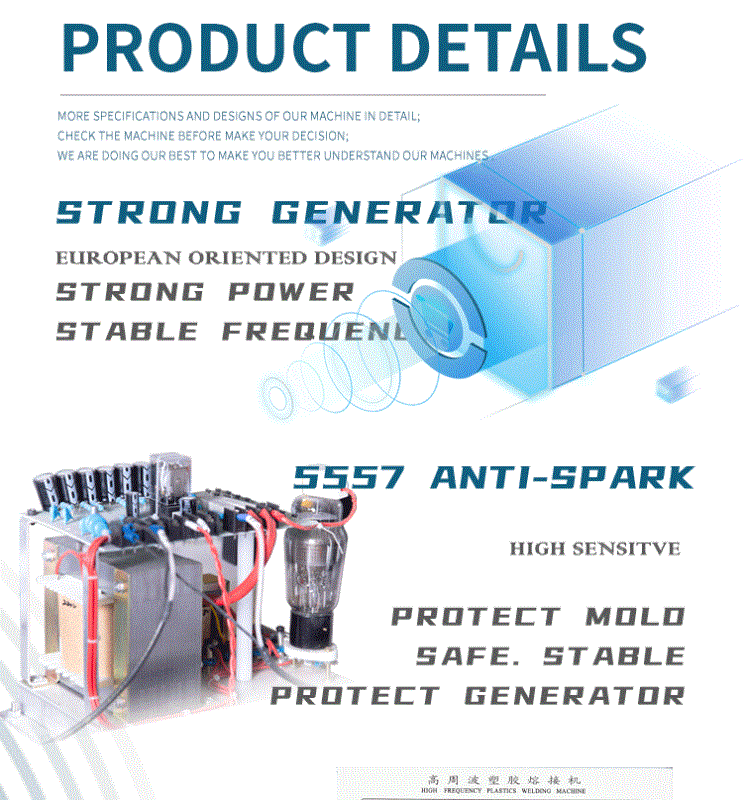

Anti-Spark System    U.S.A. PL-5557 High sensitive anti-spark system
Voltage   3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency   27.12MHZ
Input power   8KVA 15KVA 18KVA 25KVA
Rectifier   SILICON DIODE
Oscillation tube    7T85RB 7T69RB E3069 8T85RB
Max pressure   350KGS 500kg 800kg   1000kg
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn   150mm
Upper Electrode (W*H*L) 200*350mm   400*600mm   500*700mm   600*900mm
Size of Work Table (L*W) 400*600mm   500*700mm 600*800mm 600*900mm
Welding time 0.01~9.99s adjustable
Net weight    400KGS 800kgs 900kgs 1200kgs
Foreseen productivity:   According to welding times and operator skills

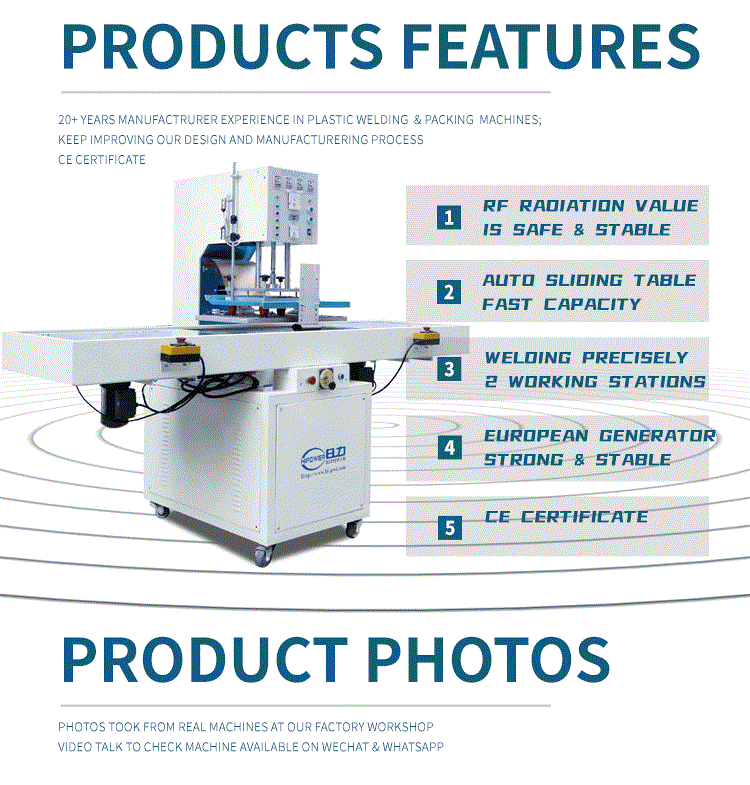

Machine General Features:

1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. Heated Upper platen with thermostat, for helping HF sealing process
5. Close off HF welding function, the machine can be use as Standard Heat Welder
6. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
7. European-model square high frequency vibration box, more reliable and stable in output
8. CE rated machine; factory verified by SGS and BV;
9. Customer's site installation, training & maintenance available
10. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
11. High frequency welding press pneumatically operated
