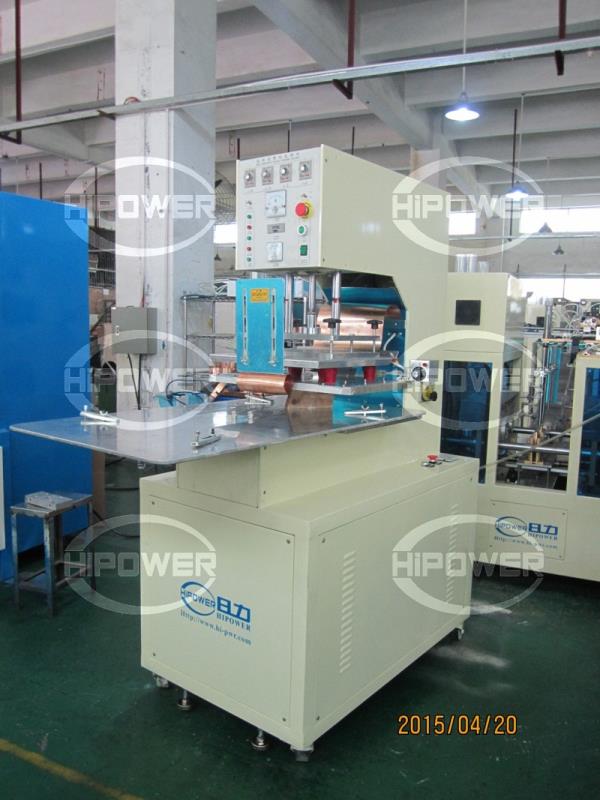

HR-5000S High frequency welding machine

Model：	HR-5000S
Scope Of Application：	Apply for single blister packing,double blister packing,Inflatable toy,any P.V.C or 30% PVC plastic material
Features：	HF welding machine only, 2 turnable working stations,

HR-5000S High frequency welding machine

Specification:

Model HR-5000S HR-8000S HR-10KWS HR-15KWS
Power 5000W   8000W 10000W 15000W
Anti-Spark System   U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency   27.12MHZ
Input power 8KVA 15KVA 18KVA    25KVA
Rectifier   SILICON DIODE
Oscillation tube 7T85RB 7T69RB    E3069      8T85RB
Max pressure   350KGS   500kg   800kg 1000kg
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn 150mm
Work Station   Rotary double working station
Upper Electrode (W*H*L) 300*400mm   300*500mm 350*500mm 400*600mm
Size of Work Table (L*W)   300*450mm   300*500mm 350*500mm   400*600mm
Welding time   0.01~9.99s adjustable
Net weight   400KGS800kgs900kgs1200kgs
Foreseen productivity: According to welding times and operator skills

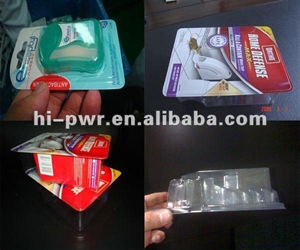

Application:

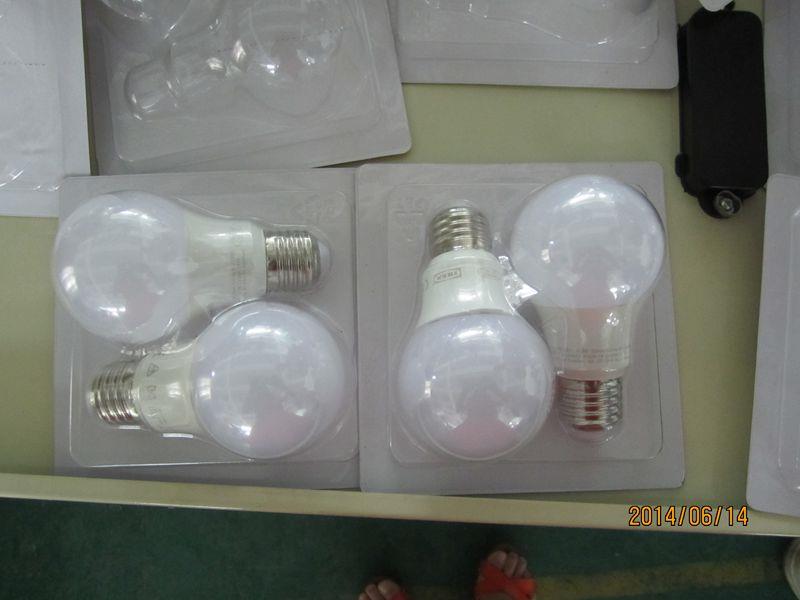

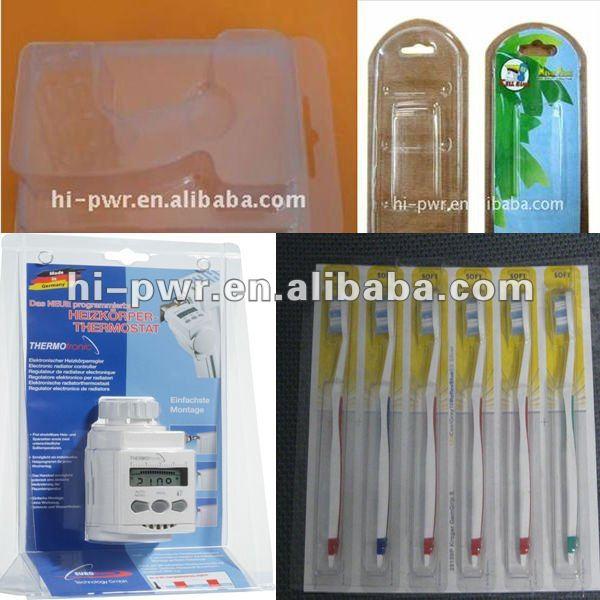

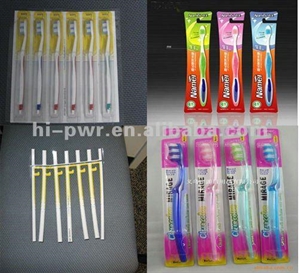

1. To seal blister of PVC, PET, PET-G, PET-GAG, A-PET...

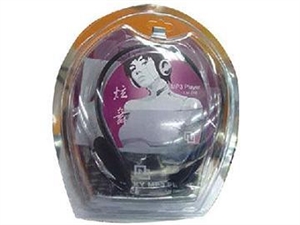

2. Clear blister packaging
3. Plastic clam-shell packaging
4. Plastic Blister with plastic blister packages

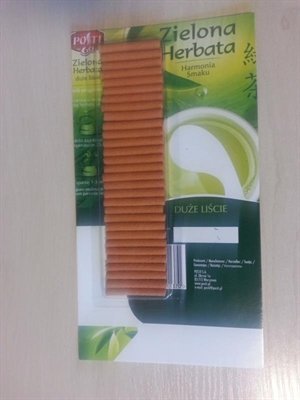

5. Plastic blister with cardboard packages
6. Positive/negative blister forming and packaging

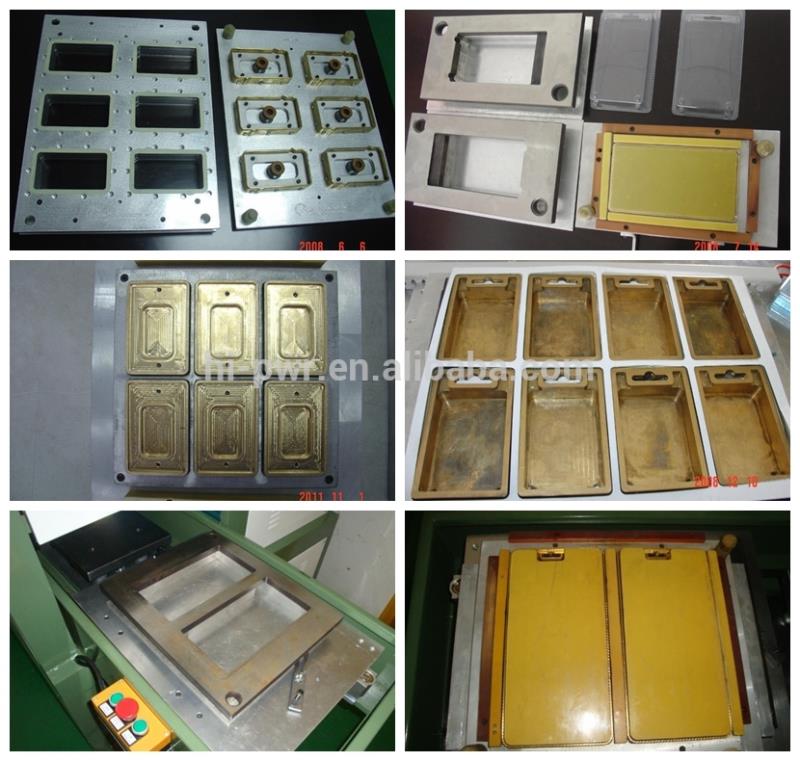

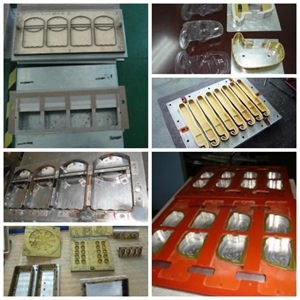

It is especially designed for HF welding is a perfect machine for production of blister packages,
But it is multipurpose machine, for it can be used for industry like PU leather cover for pad,, safety vests, reflective signs, inflatable toys, cosmetics, folding packing box, automotive, medical, rehabilitation, packaging, recreation, textile and clothing, reflective garments,.etc.
The HF blister packaging welder series have HF power outputs from 5KW to 35KW 30kW for multi-cavity production loads and specialized products.

Plastic clam-shell packaging Plastic clam-shell packaging machine
