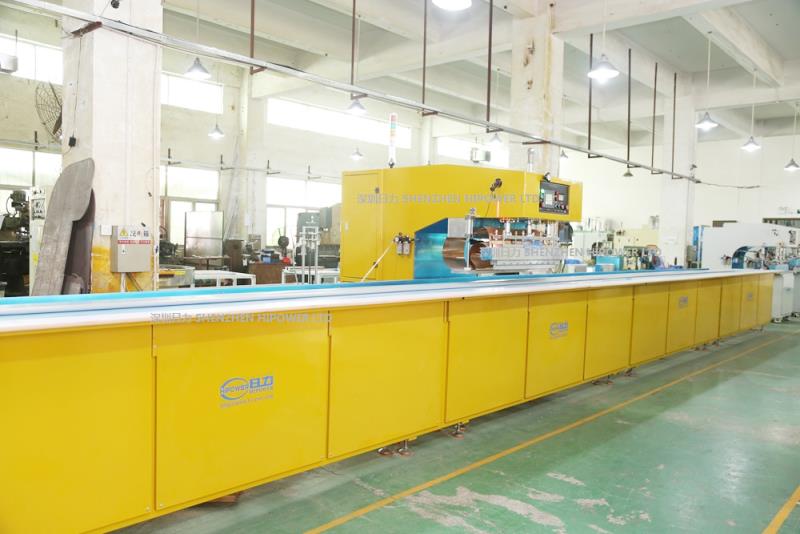

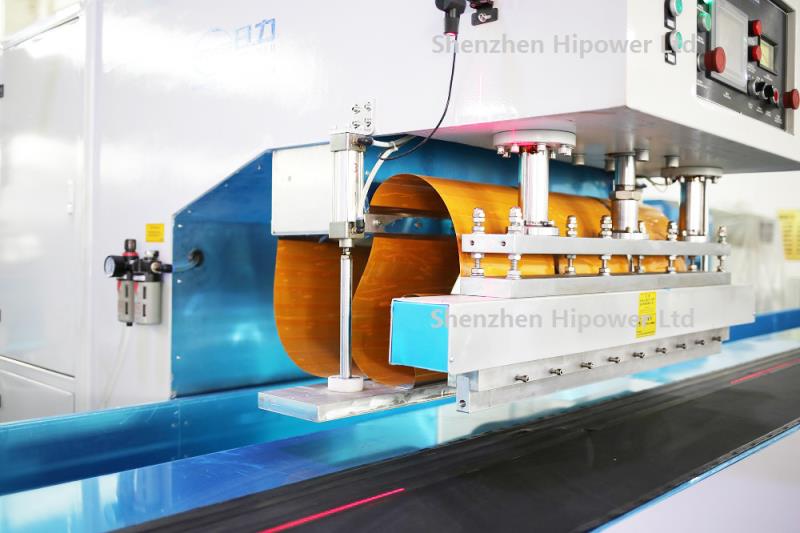

Movable High Frequency Welder for PVC Canvas/Tarpaulin
| Model： | HR-35KWA |
| Scope Of Application： | Applied for tarpaulin, sunshading canvas, painting canvas, film curtain and relatives for automatic stepping welding and connecting |
| Features： | Auto movable welder, work table can be more than 100 meters long; PLC program HMI control; Servo Motro driver; 5557 Arc-Suppressor; Famouse brand componens like Vibrational Electronic Tube, Relay, PLC, .... |

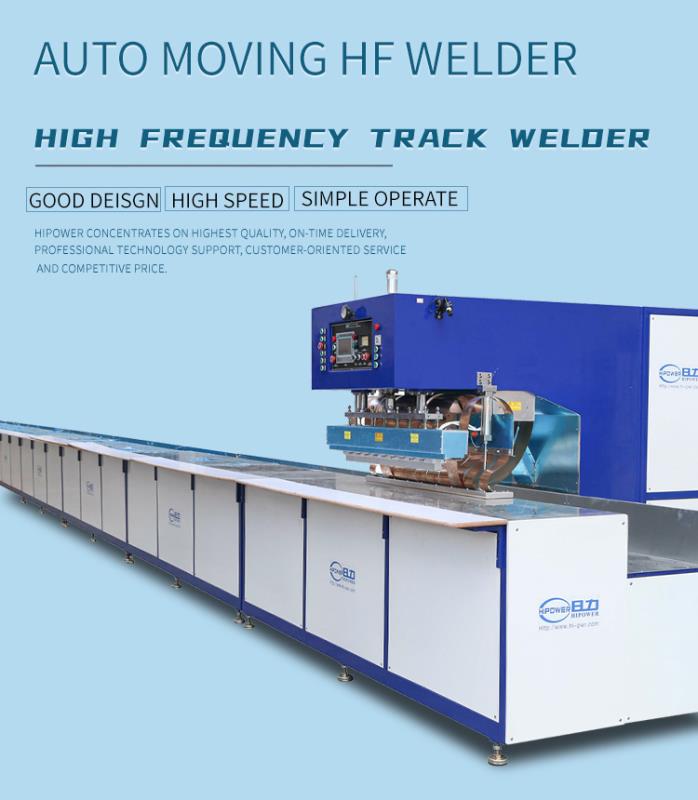

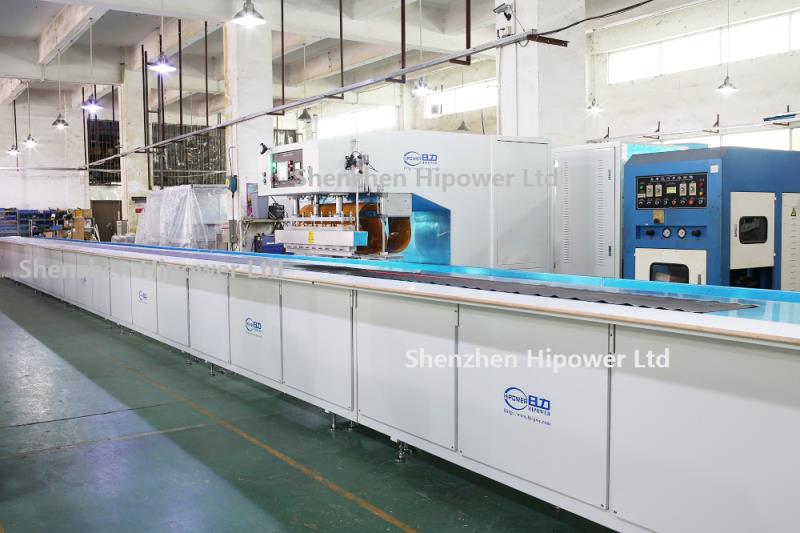

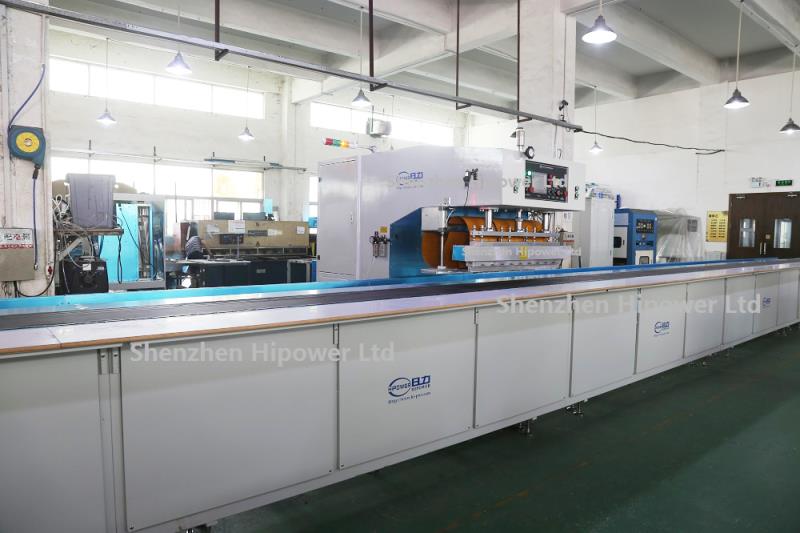

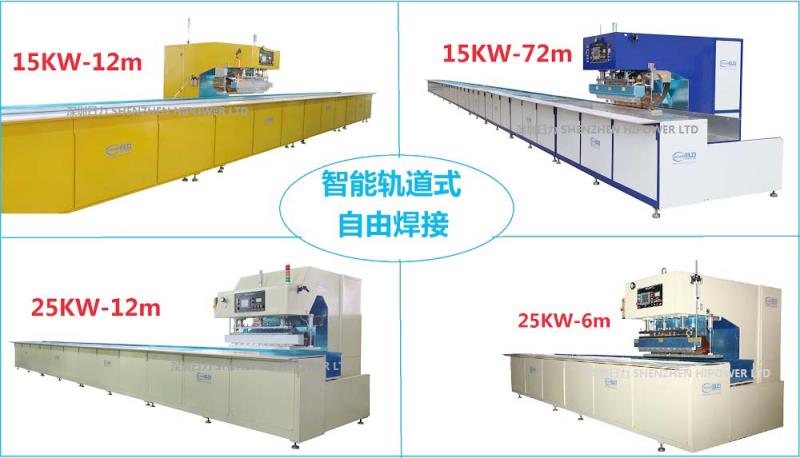

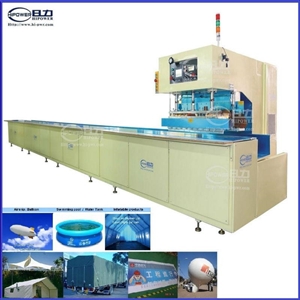

HR-35KWA Movable High Frequency Welder for PVC Canvas/Tarpaulin/Tents
High frequency welders for the production of tarpaulins, truck curtains, marquees, tents and large covers
Application:
It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns,
tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,
canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer
advertising / printing/ Film cloth, the membrane structure, etc.
Products:
1. Large format technical textiles
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters Our welders with power outputs up to 35KW and deep space behind the electrode provide
advanced technological features for optimizing productivity and manufacturing quality. Stabilized and smooth regulated
HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide. All machines are completely safe for the operator and fully comply with CE regulations.
Machine Specification:

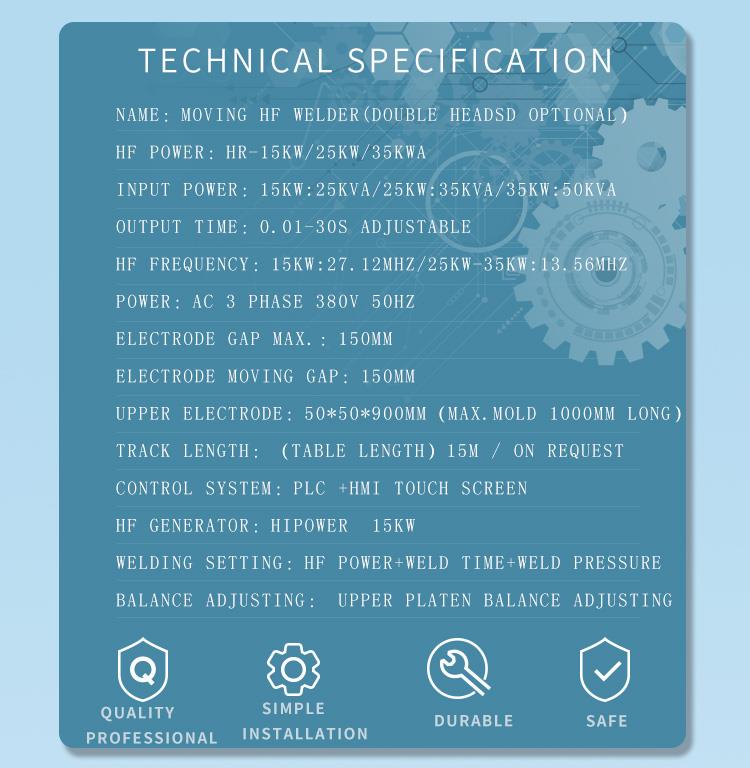

| Model | HR-8KWA | HR-12KWA | HR-15KWA | HR-25KWA |
| Output Power of Generator | 8KW | 12KW | 15KW | 25KW |
| Anti-Spark System | PL-5557 High sensitive anti-spark system | |||
| Voltage | 3P AC 380V 50Hz-60HZ or customize | |||
| Frequency | 27.12MHz |
|
||
| Input power | 15KVA | 20KVA | 25KVA | 35VA |
| Rectifier | SILICON DIODE | |||
| Oscillation tube | 7T69RB | E3130 | 8T85RB | 8T25RA |
| Max pressure | 500kg | 800kg | 1000kg | 1500kg |
| Max gap of electrodes | 150mm | |||
| Size of active horn | 150mm | |||
| Upper Electrode (W*H*L) | 50*50*800mm | 50*50*900mm | 50*50*900mm | 50*50*1000mm |
| Welding time | 0.01~9.99s adjustable | |||
| Foreseen productivity: |
According to welding times and operator skills |
|||
Machine General Features:

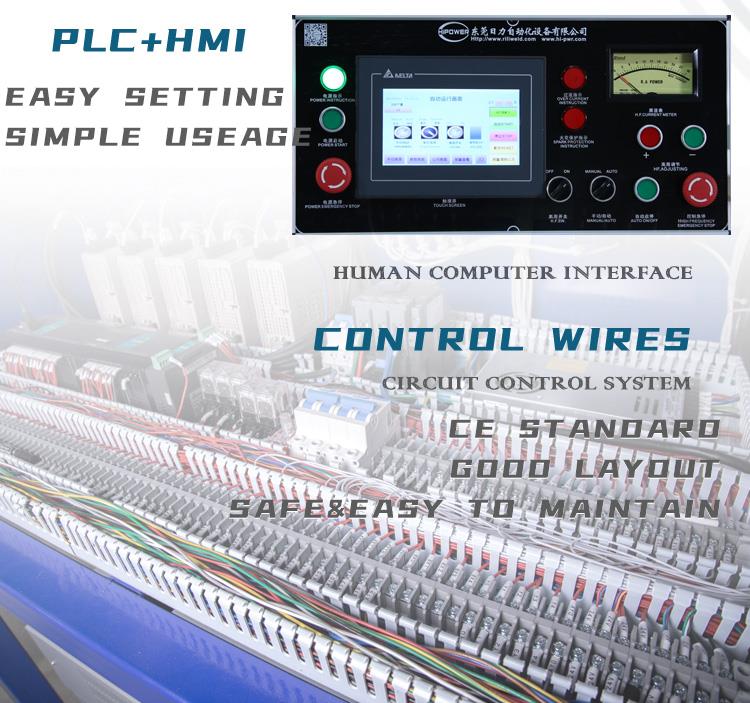

| 1. Servo-motor; Touch screen programmable HMI / PLC |
| 2. European-model square high frequency vibration box, more reliable and stable in output |
| 3. Single line or two lines continue welding, welding length can be ordered as special need. |
| 4. Can be used as a freestanding machine for welding production or as a supplement to a larger system. |
| 5. CE rated machine; factory verified by SGS and BV; |
| 6. Customer's site installation, training & maintenance available |
|
7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric |
|
8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video. |
| 9.Customized work table dimensions, electrode holder dimensions, tooling |
|
10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table |
| 11. High frequency welding press pneumatically operated |
| 12. C-Frame / G frame welded steel structure with integrated HF generator |
| 1. HF Filter unit available |
| 2. Auto-high frequency tuning technology |
| 3. Precision straight bar welding up to 1500x50mm |
| 4. Vacuum table available |
|
5. Welding electrode temperature thermostat
|
Previous Products： C type high frequency tarpaulin welding machine
Next Products： HR-5000S High frequency welding machine
