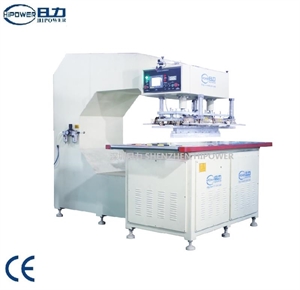

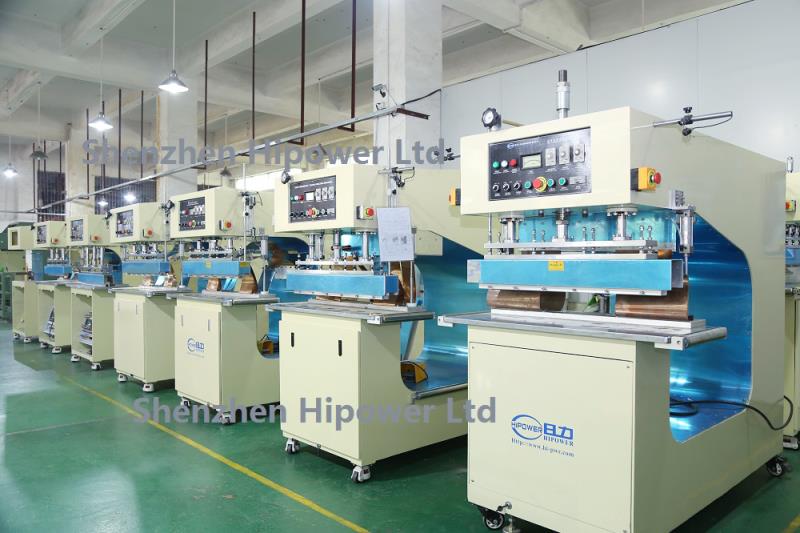

C type high frequency tarpaulin welding machine

Model：	HR-25KW-C
Scope Of Application：	Applied for tarpaulin, sunshading canvas, painting canvas, film curtain and relatives for automatic stepping welding and connecting,powered by high-frequency, can welding products like PVC digesters,PVC tanks, PVC childrens pool. can also be used to jion

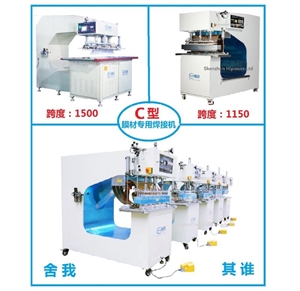

Features：	C shape frame, with free space of 1500 mm long;European-model square high frequency vibration box, more reliable and stable in output;CE rated machine; factory verified by SGS and BV;

HR-25KW-C high frequency tarpaulin welding machine

Application:

It is especially designed for HF welding of large format structural membranes, pool-liners, oil-booms, water cisterns, tarpaulin, tents, tensile structures, advertising billboards, spark protection cloth ,tent of truck, canvas of agricultural,canopy, swimming pool covers and other PVC/PU technical textiles, large PVC canvas/digesters/ fabric, computer advertising printing/ Film cloth, the membrane structure, etc.

Products:

1. Large format technical textiles,
2. Large Covers for trucks and boats
3. Membrane Curtains for trucks
4. Large Swimming pool covers
5. Temporary shelters
Our welders with power outputs up to 35KW and deep space behind the electrode provide advanced technological features for optimizing productivity and manufacturing quality.Stabilized and smooth regulated HF generator provides efficient power for al linear welding up to 1500mm in length and 50mm wide.All machines are completely safe for the operator and fully comply with CE regulations.

Technical paramters:

Model	HR-15KW-C	HR-25KW-C
Output Power of Generator	15000W	25000W
Anti-Spark System	U.S.A. PL-5557 High sensitive anti-spark system
Voltage	3P AC 380V 50Hz-60HZ or customize
Frequency	27.12MHz
Input power	25KVA	35KVA
Rectifier	SILICON DIODE
Oscillation tube	8T85RB	8T25RA
Max pressure	1000kg	1500kg
Operation mode	Pneumatic Operated
Max gap of electrodes	150mm
Size of active horn	150mm
Upper Electrode (WHL)	200*1300mm	200*1500mm
Size of Work Table (L*W)	200*1350mm	200*1550mm
Welding time	0.01~9.99s adjustable
Net weight	1300kgs	1400kgs
Space behind electrode	1500mm
Foreseen productivity:	According to welding times and operator skills

General Features:

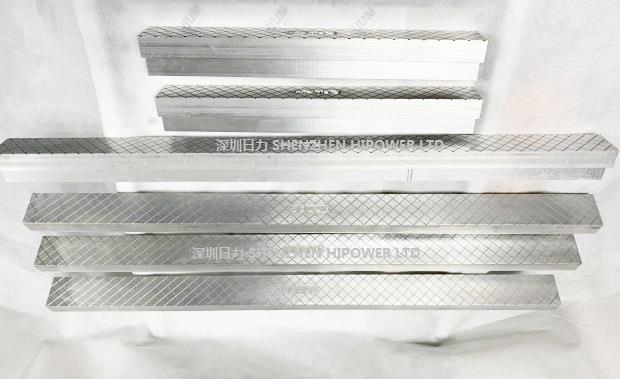

1. Length, width and radian of welding area can be adjusted by change welding die.

2. European-model square high frequency vibration box, more reliable and stable in output

3. Single line or two lines continue welding, welding length can be ordered as special need.

4. Can be used as a freestanding machine for welding production or as a supplement to a larger system.

5. CE rated machine factory verified by SGS and BV

6. Customer's site installation, training & maintenance available

7. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric

8. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.

9.Customized work table dimensions, electrode holder dimensions, tooling

10.Laser Guide Projectors – projecting laser lines (easy for operator's eyes) for quick material guidance on the work table

11. High frequency welding press pneumatically operated

12. C-Frame / G frame welded steel structure with integrated HF generator

Optional Features on Request:

1.Servo-motor Touch screen programmable HMI / PLC

2. HF Filter unit available

3. Auto-high frequency tuning technology

4. High frequency generator on separate cabinet

5. Large space behind the welding tool - up to1500mm

6. 12. Precision straight bar welding up to 1500x50mm
