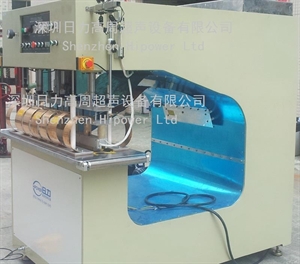

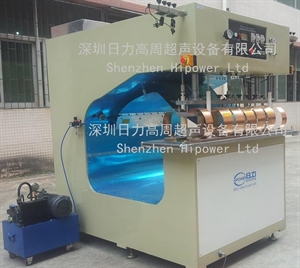

Hydralic High Frequency welding machine for tarpaulin , PVC
| Model： | HR-15KW-FH2 |
| Scope Of Application： | The machine is especially suitable for procession on welding tarpaulin,sunshade,painting canvas,film curtain, Advertising ,spark protection cloth ,tent of truck, canvas of agricultural,canopy,canvas/digesters |
| Features： | 1 Hydraulic to supply lage pressure 2 a seam is done by one time with good looking , no wrinkles, no tool marks and smooth and beautiful surface.3 Using the smart man-machine interface PLC operating system, step or servo motor drived. |
Hydralic High Frequency welding machine for tarpaulin , PVC
Used for welding Liquid tanks, canvas, car tents, tarpaulin, air structure, sun belt, inflatable dome,
awning, covers, sunshade, inflatable tents, tailgate, inflatable dome tent, awning, tarpaulins, covers,
poll liner, sunshade and many other kinds of plastic products.
Characteristics:
1. High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
2. Length, width and radian of welding area can be adjusted by welding die.
3. With750mm free space behind the electrode which makes the machine suitable for big-scale manufacturing
that require extensive material handling.
4. better welding effect, install laser scanning system inside the machine to get precise wedling position
5. European-model squareness high frequency vibration bos, more realiable and stable in output
6. International industrial wave bands 27.12MHz, which is in line with international standard.

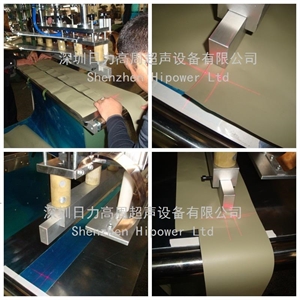

7. Laser scan system,precise positioning welding.
8. Welding time can be adjusted according to welding materials
9. Firmly welding, be well meet with thick or thin dimension of welding material
10.Machine groove deep and wide, conveninent in continuous welding with large area.
11.Single line or two lines continue welding, welding length can be ordered as special need.
12.Adopting high sensitive anti-sparkle device NL 5557 to aviod damaging the mould
13.European standard high-frequency oscillatory square box, output greater and more stable.
14.The machine with F style structure,The distance of body from horn can be customized
15.Can be used as a freestanding machine for welding production or as a supplement to a larger system.
16.All sizes available related machines made by request
Specifications:
| Model | HR-15KW-F2 |
| Power | 15000W |
| Power Supply | 380V 3P 50HZ |
| Frequency | 27.12MHz |
| Input power | 25KVA |
| Rectifier | SILICON DIODE |
| Oscillation tube | 8T85RB |
| Max pressure | 1000KG |
| Gap of electrodes | 150MM |
| Moving distance of active horn | 150MM |
| The size of upper electrode | 50*50*900MM |
| The size of buttom electrode | 450*1000MM |
| Welding surface each work cycle max | 450c㎡ |

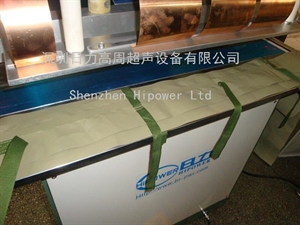

Welded Samples:
