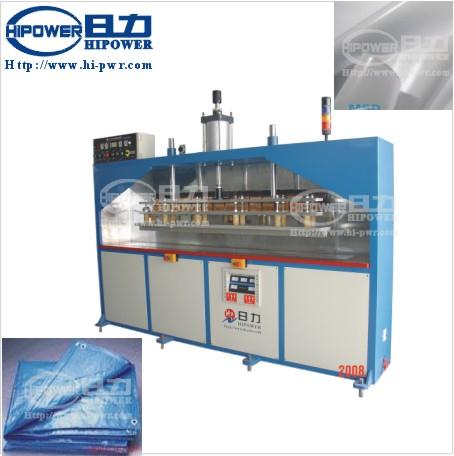

15KW-FL High Frequency huge Canvas Welding Machine
| Model： | HR-15KW-FL |

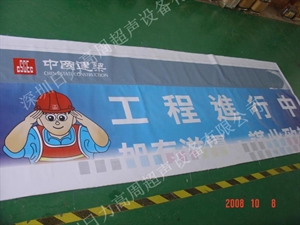

| Scope Of Application： | Special designed for welding window curtain as client request, And be also used for welding Liquid tanks, canvas, billboard,car tents, tarpaulin, air structure, sun belt, inflatable dome, awning, covers, sunshade |
| Features： | PLC program HMI control; Servo Motro driver; 5557 Arc-Suppressor; Famouse brand componens like Vibrational Electronic Tube. |
15KW-FL High Frequency huge Canvas Welding Machine
1.With 2000mm length welding fixture for bonding the mould.The dimension of upper electron,upper electron and product handle platform can be made as client request.
2.Firmly welding ,be well meeting with materials of thick or thin material
3.Adopting high sensitive anti-sparkle device NL5557 to protect mould from spark
4.The longest welding length extended to 1800~2000mm one time
5.European-model squarness high frequency vibration bos,more realible and Stable in output.
6.High frequency tarpaulin welding machine can be manufacturered and choose according to user needs.
7.Length, width and radian of welding area can be adjusted by welding die.
8.International industrial wave bands 27.12MHz, which is in line with international standard.
9.Single line or two lines continue welding, welding length can be ordered as special need.
|
Model |
HR-15KW-FL |
|
Power |
15000W |
|
Power supply |
380V 50/60HZ |
|
Frequency |
13.56MHZ |
|
Input power |
25KVA |
|
Rectifier |
SILICON DIODE |
|
Oscillation tube |
8T85RB |
|
Max pressure |
1500kg |
|
Gap of electrodes |
150mm |
|
Moving distance of active horn |
100mm |
|
Size of upper electrode |
100*1200MM |
|
Size of down electrode |
120*1200MM |
|
Welding time |
0~10S Adjustabl |
|
Net weight |
1500kg |
|
Overall dimension |
2500*1850*2200The manufacturer has the right to modify the design and parameter without prior notice |
