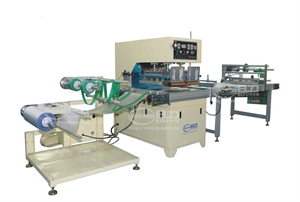

HR-8000XA,high frequency automatic blood transfusion bag welding machine
Model: | HR-8000XA |
Scope Of Application: | This high frequency welding machine is widely applied for medical industrial, like , medical transfusion bag, medical blood bag, medical urine bag, and relative one-off medical bag |
Features: | Automatic machine, feeding with ROLL film, |
HR-8000XA,high frequency automatic blood transfusion bag welding machine
Mainly application

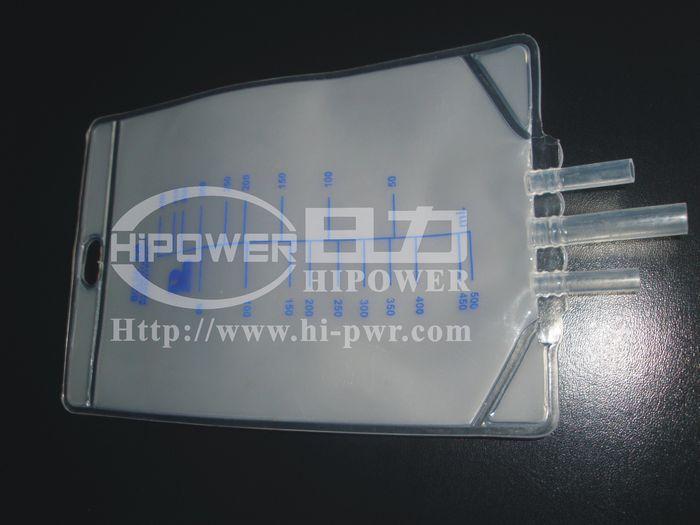

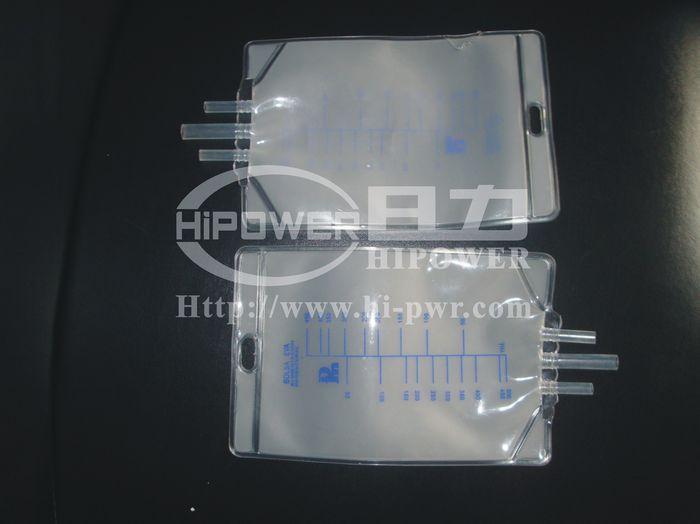

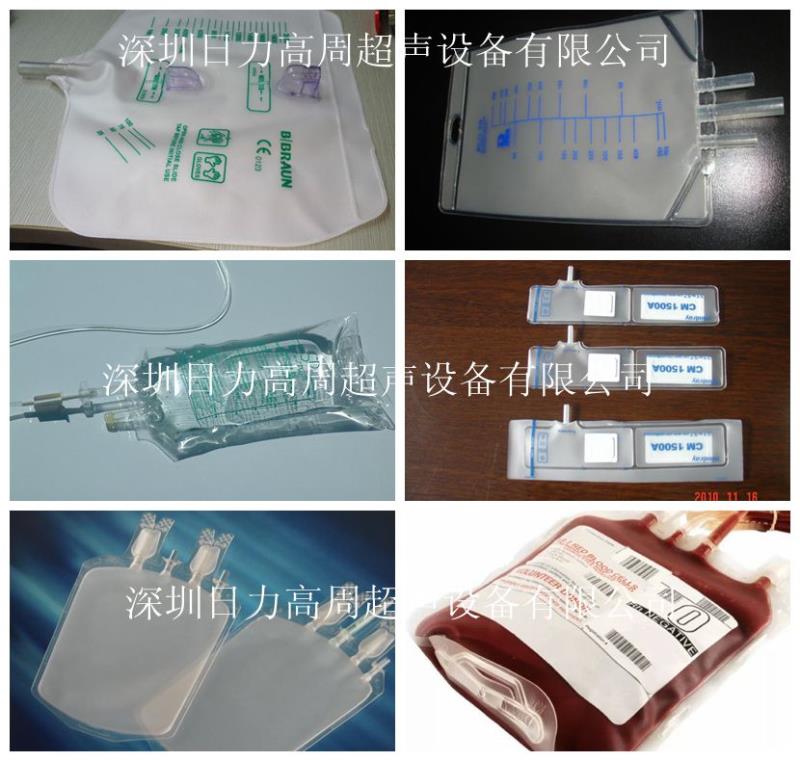

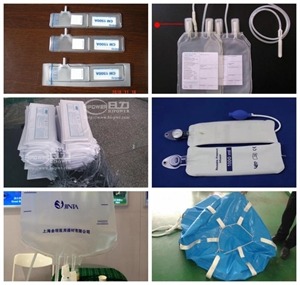

This high frequency welding machine is widely applied for medical industrial, like , medical transfusion bag, medical blood bag,
medical urine bag, and relative one-off medical bag
Character:
Adopting PLC programme, micro computer trouch screen control, easy and clear to reach precision
NL-5557 high frequency anit-sparckle protection system, high sensitive
Photo electric induction, no any defects
Automatic feeding, receiving, cutting material to improve working efficiency
Mahine General Features:
1. Anti-flash system, to protect the tooling / mould;
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output

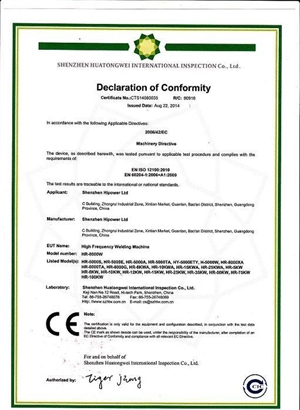

9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of
face-to-face online video.
12. High frequency welding press pneumatically operated
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure
Machine Specification:
Model HR-8000XA
Power 8000W
Frequency 27.12MHz
Voltage 50/60HZ AC380V 3P
Input power 15KVA
Oscilation tube 7T69RB
Thyristor NL-5557
Rectifier EILICON DIODE
Gap between electrodes 250mm
The size of upper electrode 300mm*400mm
The size of lower electrode 400mm*500mm
Operation way Pneumatic
Max pressure 500KG

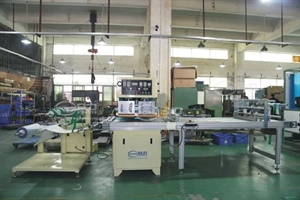

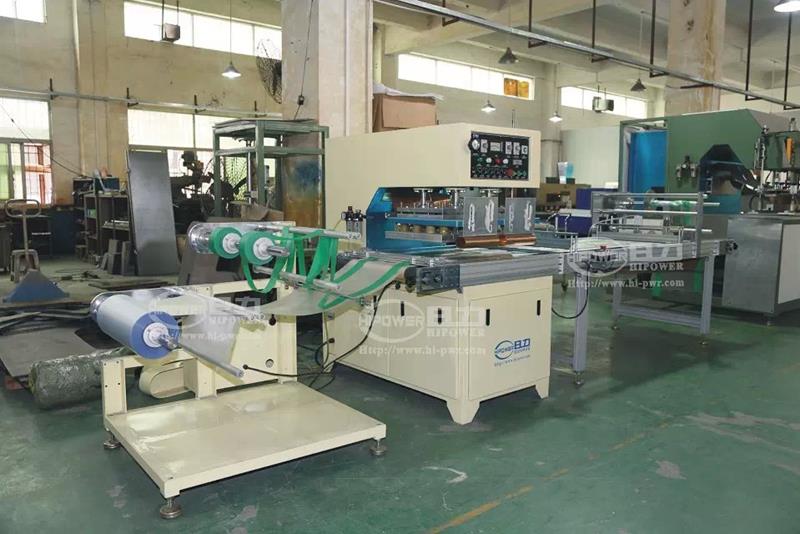

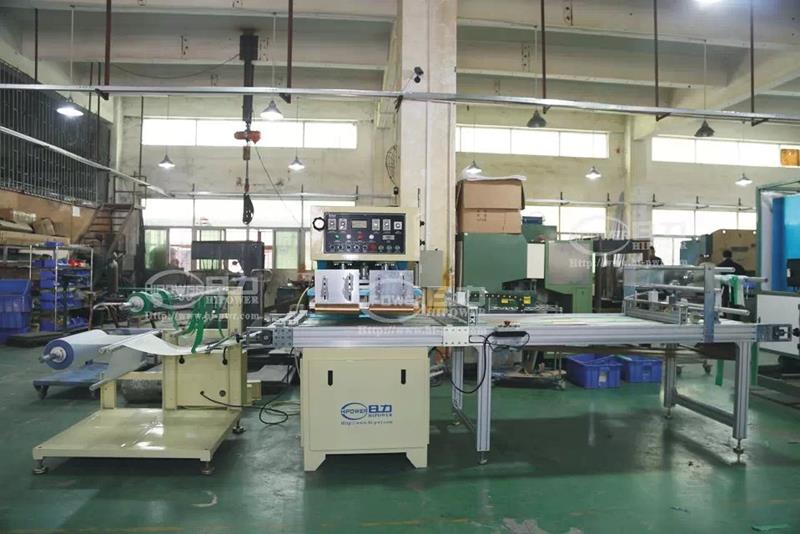

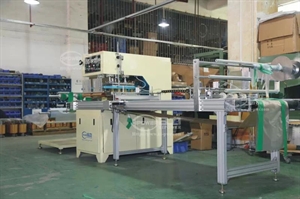

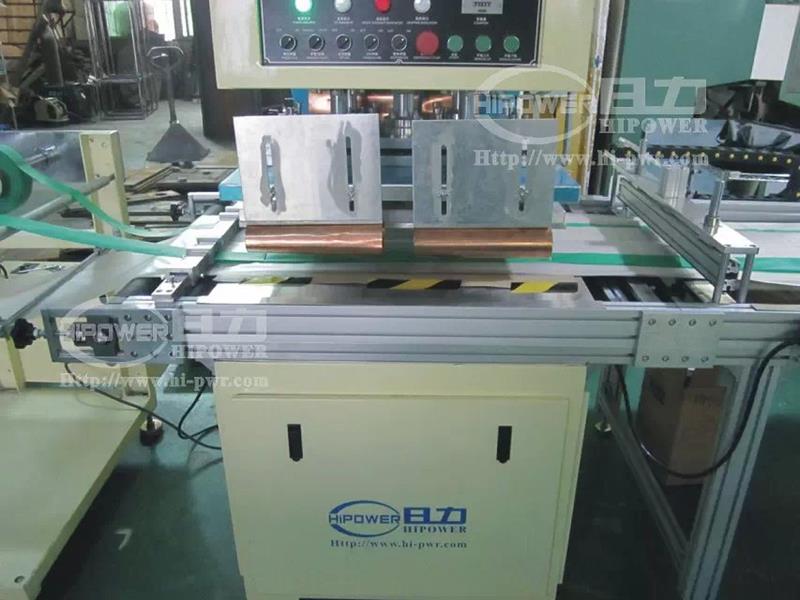

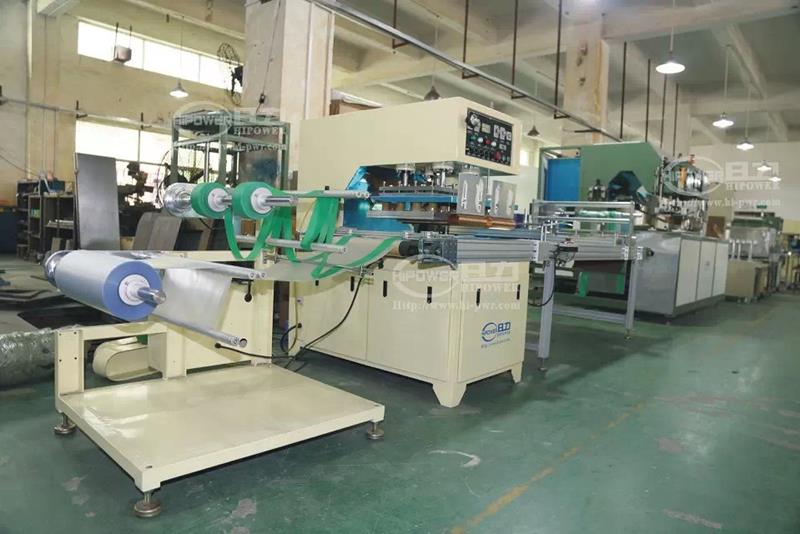

Machine view:
