Product Display > High Frequency Welding Machine > Medical Bags HF Welding Machine

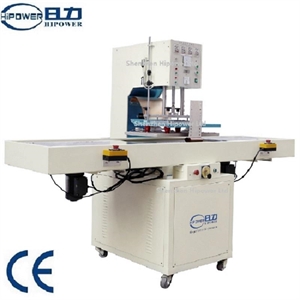

HR-8000AT,high frequency drainage bag intubation welding machine

Model: HR-8000AT
Scope Of Application: specially for medical infusion bag, blood transfusion bags, wash bags, catheter bags, drainage bags, catheter bags, disposable medical supplies welding
Features: Upper and lower double face high frequency design,

HR-8000AT,high frequency drainage bag intubation welding machine

Applicable; medical infusion bag, blood transfusion bags, wash bags, catheter bags, drainage bags, catheter bags, disposable medical supplies welding
High frequency tube welding machine for medical bags scope:
High frequency catheter for medical bags medical bags are widely used in welding machine welding catheter, such as: medical infusion bags, medical blood bags, medical catheter bags, wash bags, drainage bags, catheter bags, disposable medical supplies welding.
Main features:
The machine adopts the high Q value of the vacuum tube, the output power stability, the adoption of international industrial band Oscillation Frequency 27.12MHz, the output frequency in line with international standards. About two-way automatic slider machine, and from the continuous push mold, precise positioning.
NL-5557 high-frequency spark protection system, high sensitivity, high frequency mold to prevent burning. And with high frequency and high frequency shielding frequency stabilizer device, the high-frequency interference to a minimum, to avoid radio interference. At the same time to avoid improper operation caused by the frequency drift, so to minimize damage to electrodes and materials, while warning lights are illuminated warning.
This machine adopts the European standard coaxial high-frequency low-loss resonator, high-frequency output power strong, able to weld the most rapid time to make products, greatly improving production

Machine Specification:

Model                                  HR-5000AT                        HR-8000AT
Power                                      5KW                              8KW
Voltage                                380V 50/60Hz
Frequency                            27.12MHz
Input Power                             8KVA                             15KVA
Rectofier                              SILICON DIODE
Oscillation tube                       7T85RB                           7T69RB
Max pressure                          400kg                            500kg
Max gap of electrode                                    200MM
The distance of active horn                           150MM
The size of upper electrode       300*500mm                    400*600mm
The size of lowwer electrode     400*600mm                    500*700mm
Welding time                           0-10S Adjustable
Capacity                                ㄑ3500/8H
