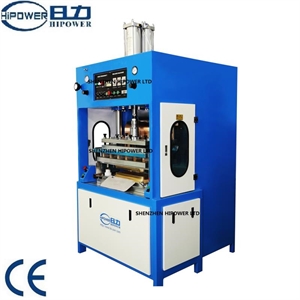

HR-10KW-20TQ HF welding machine for Car Sun visors

Model: HR-10KW-20TQ
Scope Of Application: for the production of sunvisors,20 tons pressure makes sure good quality product output.
Features: 20T press pressure fo high quality sun visor making

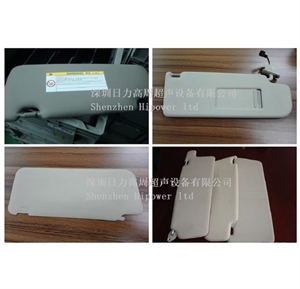

High Frequency welding machine for Car Sun visors


 Features:
1.Specialize for making car sunvisor.
2.Good for welding environmental production dress glue products like APET,PETG,GAG materials.
3.Can weld and cut simultaneously.
4.Shuttle way with two working position and work automatic.
5.accurate-orientation, error+20um.
6.Cutting pressure can adjust from 1to 50 ton 7.Firm in structure,stable and realible in output.
8.Adopting high sensitive anti-sparkle device NL5557  to avoid damaging the mould efficiency.
9.Operation mode: oil+pneumatic or pure-pneumatic.

Product details Specification
MODEL:                                              HR-10KW-20T
POWER:                                                  10KW
POWER SUPPLY:                                      220V/380V 50/60Hz
FREQUENCY:                                           27.12MHz
ELETRONIC POWER:                                 18KVA
RECTIFIER:                                               SILICON DIODE
VIBRATIONAL TUBE:                                   E3069
MAXPRESSURE:                                        20T
MAX GAP OF ELECTRODES:                        200MM
SIZE OF ACTIVE HORN:                               100MM
SIZE OF UP ELECTRODE:                           400*700MM / On Request
SIZE OF WORKING PLATE:                          400*700MM / On Request
SCALE OF TEMPERATURE:                         30-200C Adjustable
WELD TIME:                                               0-10s Adjustable
PRODUCTIVITY                                             Equal or Less 5000times/8h
NET WEIGHT                                              1.5T
OVERALL DIMENTION                                 1920*1200*1260MM

Porduct Features

High precision splitter installed, with Powerful ultrasonic welding, wonderful welding effect assured,
ADJUSTABLE PLC man-machine interface control system
Adjustable robot manipulator can remove the product automatically, wheels installed are convenient to move the machine around.
High Q value oscillator installed, high quality, reliable working status; Use different moulds, you can realize different welding appication
Multi-position design, 3-24 working positions adjustable,
All design and parameter above are adjustable upon customer¡¯s special requirement
Automatic overload protection system
Adopting digital switch, 1/100 precision re-set control
Adjustable horizontal level, easy control welding horn
Have resonant frequency when the load, unload, without adjustment for the frequency of welding horn

Celebrate itself durability for adopting USA aviation standard  7075/6064 Aluminum alloy
high-power machine, which is applied for Large workpiece
Adopting Japan HuangPai brand alloy steel to keep frequency strong and stable
All design and parameter above are adjustable upon customer special requirement
