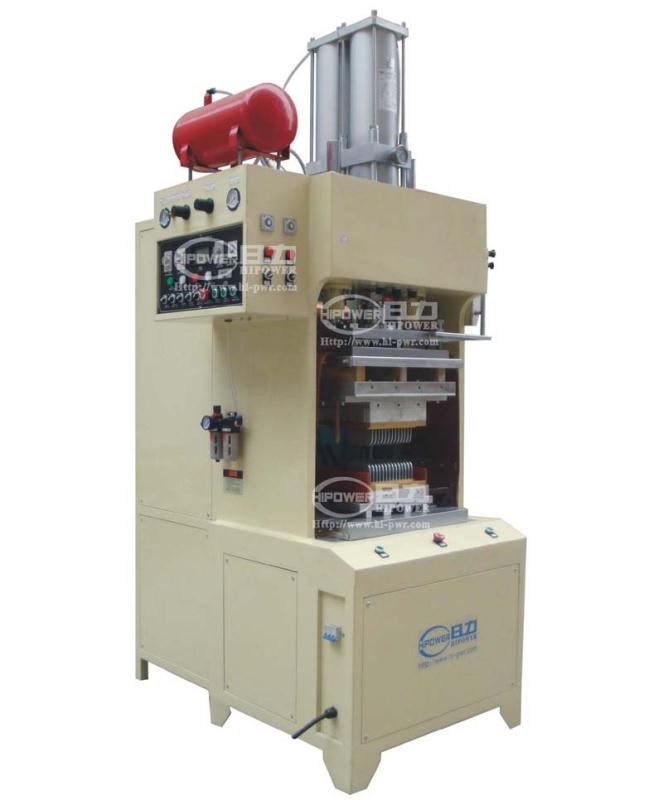

HR-10KW-20T High frequency Car Air Filter Welding Machine

Model：	HR-10KW-20T
Scope Of Application：	For car air filter welding, single working station design.
Features：	20T heavy pressure;for rigid filter makin

High frequency welding machine for car air filter

1. Special mechanical structure design can provide a stable and uniform pressure
2.It has high sensitive spark restraint electrocircuit that can check out the imbalance current
which can bring park and cut it off and alert the operator.
3. It is special designed and manufactured for making air filter base on the standard model of our HF welding and cutting machine

Machine General Features:
1. Anti-flash system, to protect the tooling / mould; C-Frame welded steel structure with integrated HF generator
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output

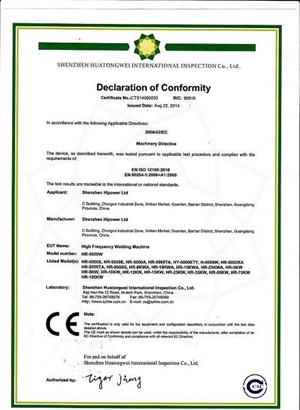

9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
12. High frequency welding press pneumatically operated

Model Item HR-10KW-20T
Frequency 27.12 MHZ
Power 10KW
Power Supply 220V/380V, 50-60HZ
Input power 15KVA
Range of temperature 30~200C Adjustic
Max pressure 20 Ton
Oscillation Tube E3069
Arc Suppressing Tube NL5557
Max Gap of Electrodes 500mm
Upper Electrode 350*500mm
Lower Electrode 400*600mm
Operation mode Air & Hydraulic(two step pressurizing

Optional Features:
1. Fully shielded HF weld area with side safety gate
2. Touch screen programmable HMI / PLC
3. Protective HF radiation shield standard
4. Auto-tuning system optional
5. Hydraulic pressure
