HY-300H Tube Box Auto Forming Machines,Punching function

Model: HY-300HO
Scope Of Application: Automatic Cylinder forming Machine for cylinders made of PVC, APET, PETG and other transparent plastic materials;
Features: Automatic material feeding and unloading; Making ideal cylinders for packaging candy.

HY-300H Custom Clear Tube Automatic Forming Machines,  with Punching Function

Features of of HIPOWER Full Automatic Cylinder forming Machine

Both ultrasonic and automatic gluing function available,
PLC man-machine interface operating system, servo motor drives;

fast and accurate cylinder forming effect;

cylinder body automatic feeding and automatic crimping;

designed to meet cylinders of various measurement;

Auto cylinder diameter and length adjustment available;

Mahine Specification:

Model

HY-200H

HY-200H1

HY-300H

Cylinder Diameter

40mm--200mm

40mm--200mm

40mm--300mm

Cylinder Length

10mm-4000mm

10mm-4000mm

10mm-4000mm

Materials Thickness

0.15mm-1.0mm

0.15mm-1.0mm

0.15mm-1.0mm

Control System

PLC

PLC

PLC

Overall dimension

4200mm*880mm*1500mm

4200mm*880mm*1500mm

4200mm*880mm*1500mm

Productivity

Ultrasonic Welding

Not Available for This Model

50pcs/m   (Aaccording to cylinder length: 100mm/pc)

50pcs/m   (Aaccording to cylinder length: 100mm/pc)

 Automatic Gluing

60pcs/m  (Aaccording to cylinder length: 100mm/pc)

60pcs/m  (Aaccording to cylinder length: 100mm/pc)

60pcs/m  (Aaccording to cylinder length: 100mm/pc)

HIPOWER Full Automatic Cylinder forming Machine have good performance that cylinder edge curled with exact even diameter and length; Full colsed visual studio to avoid secondary product contamination; cooperated with HIPOWER HY-200H or HY-200H1, automatic and no manual production line is realized.
Full Automatic Cylinder forming Machine adopts robotic manipulatos to feed or take materials automatically;  can meet forming application for cylinders with the different lengths (80-300mm), diameter (40-300mm), and material thickness (0.25-0.5mm); wonderful forming effect, no scratch, and exact even cylinder height, with error range: ¡À0.05mm.

Can construct production line with HIPOWER HY-2102A(cylinder curling machine) and HY-2030(Full Auto Cylinder curling Machine)

Hipower is the company specialized in producing and designing cylinder forming machines.

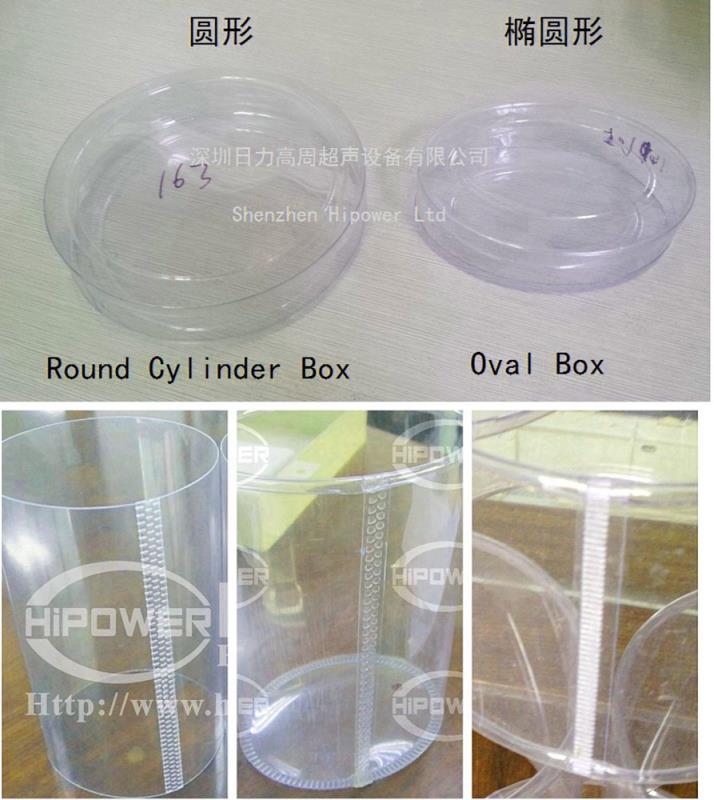

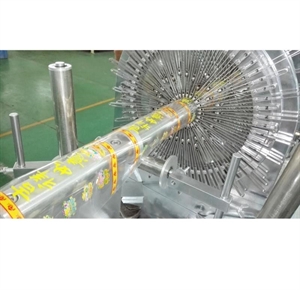

Sample Pictures:

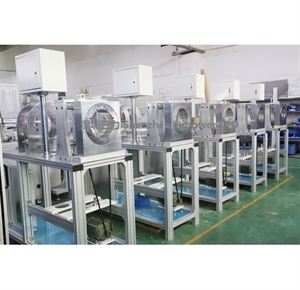

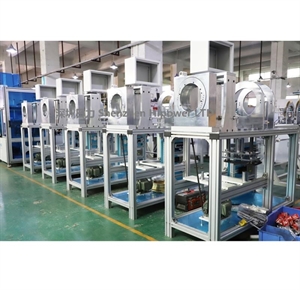

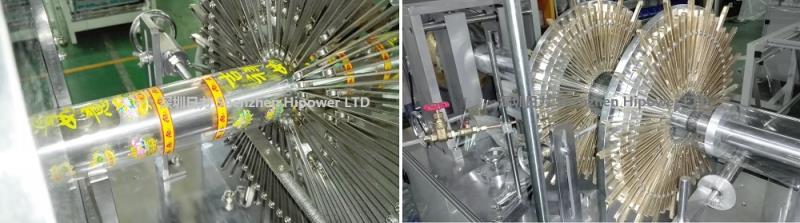

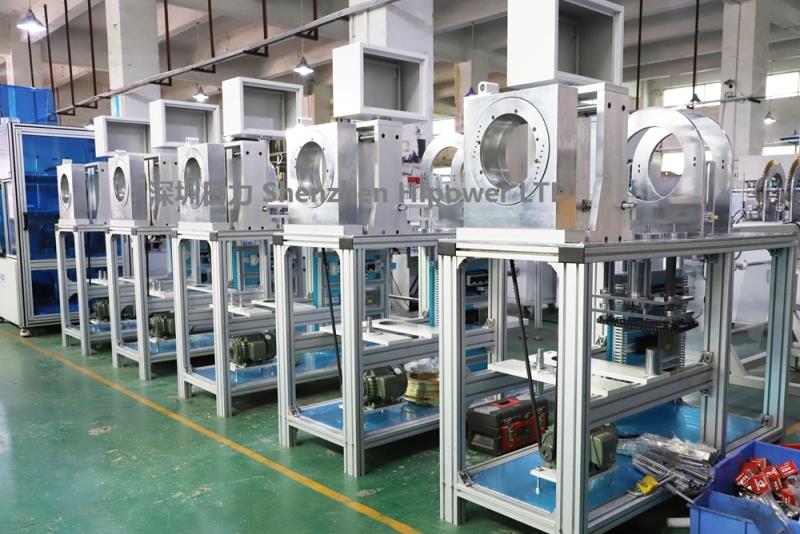

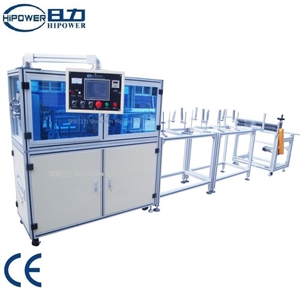

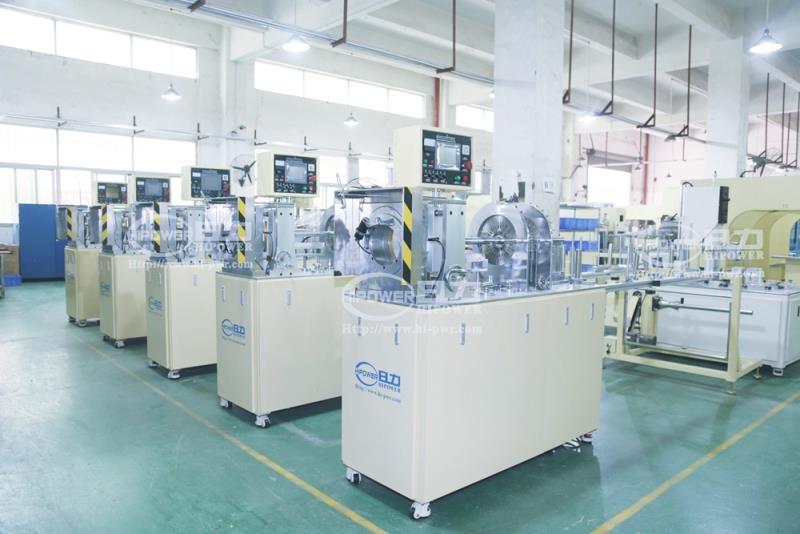

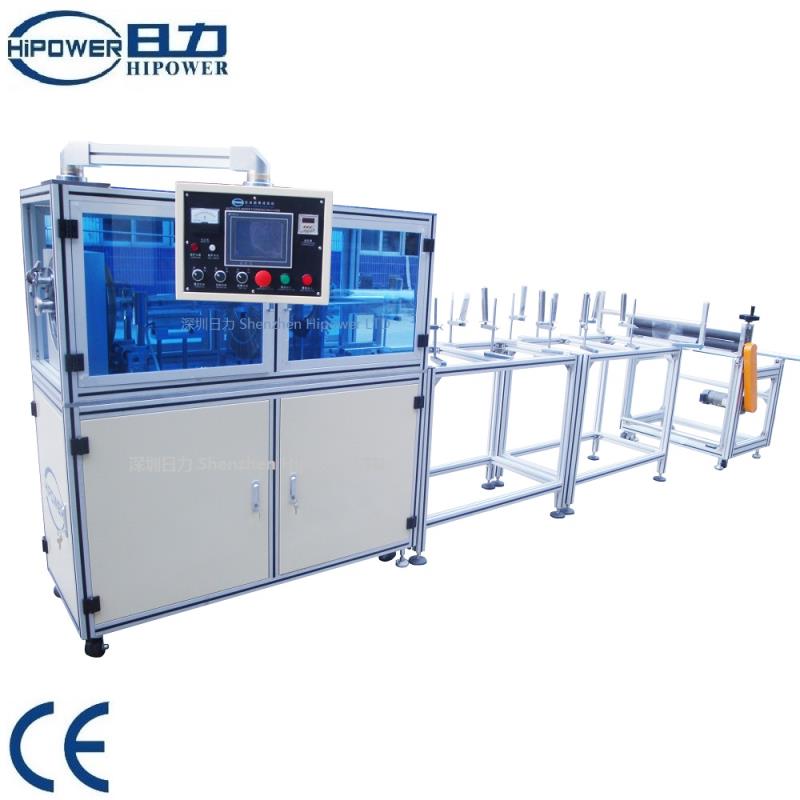

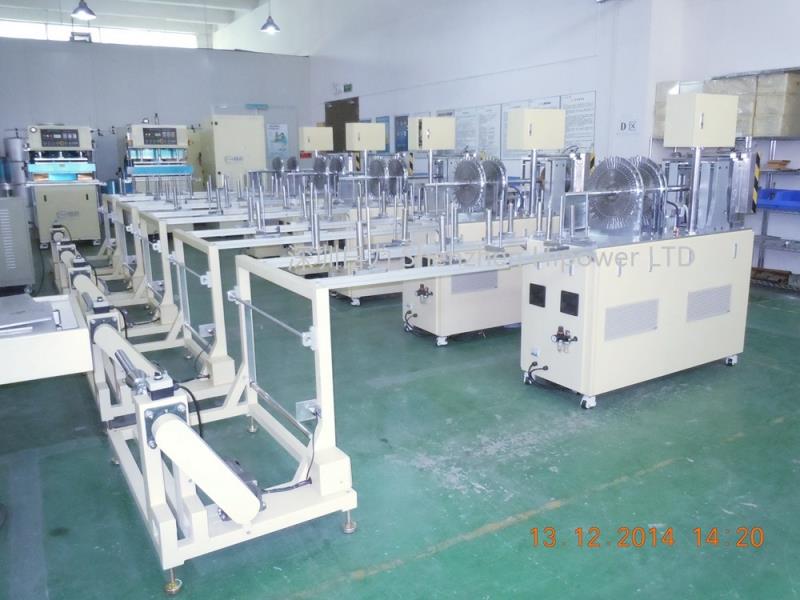

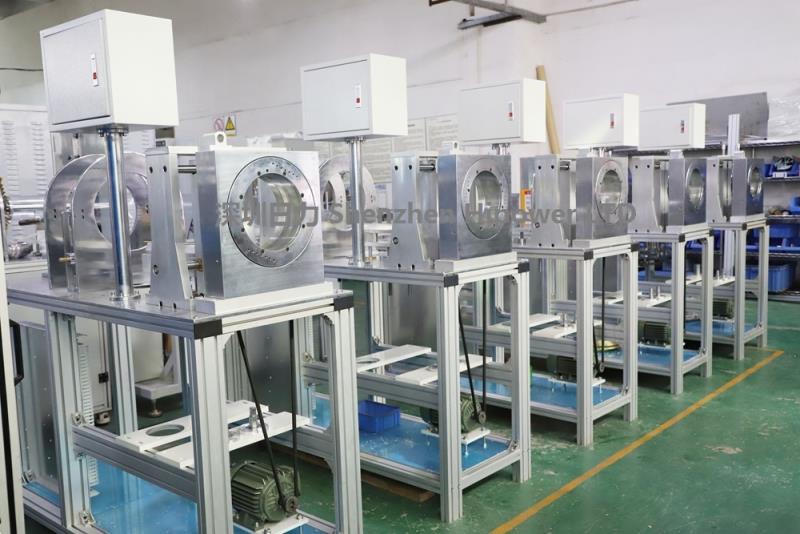

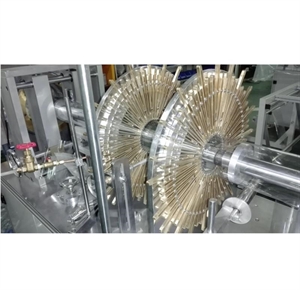

Machine Pictures:
