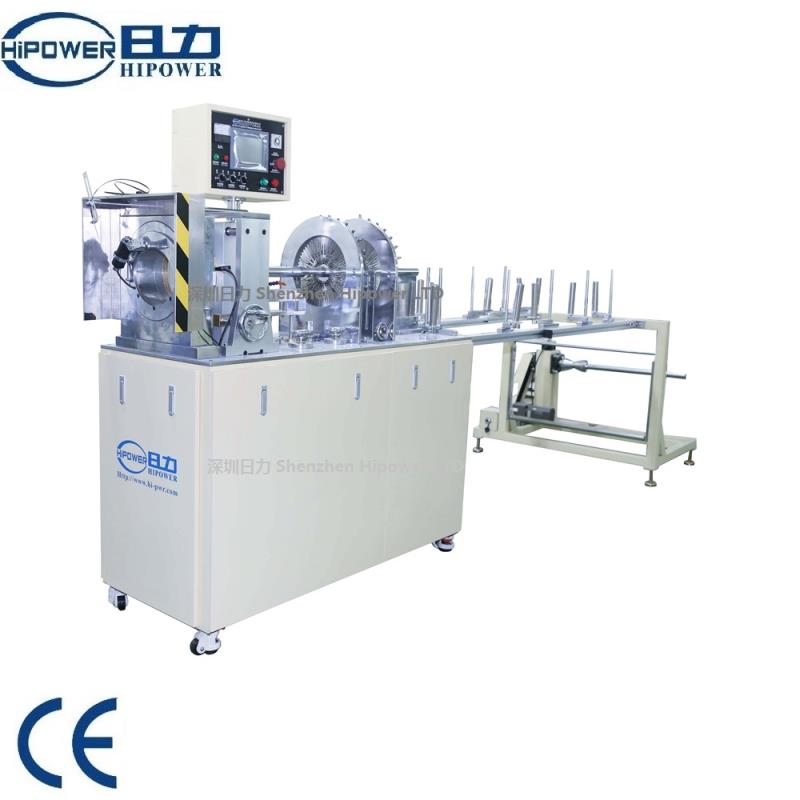

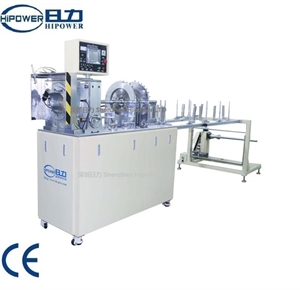

HY-200H Automatic Cylinder Gluing Forming Machine

Model：	Automatic Cylinder Gluing Forming Machine
Scope Of Application：	Automatic Cylinder forming Machine for cylinders made of PVC, APET, PETG and other transparent plastic materials; Automatic material feeding and unloading; Making ideal cylinders for packaging candy,
Features：	Automatic material feeding and unloading; Making ideal cylinders for packaging candy,

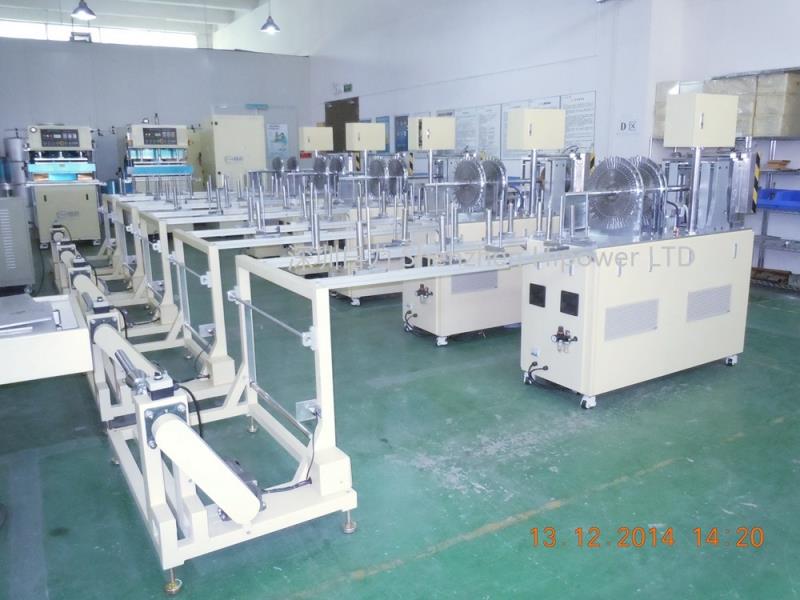

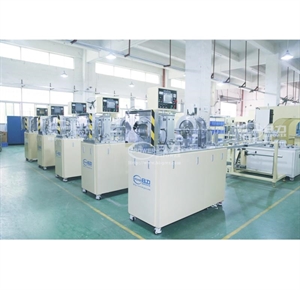

HY-200H Full Automatic Cylinder forming Machine

Features of of HIPOWER Full Automatic Cylinder forming Machine

Only automatic gluing function available,

PLC man-machine interface operating system, servo motor drives;

fast and accurate cylinder forming effect;

cylinder body automatic feeding and automatic crimping;

designed to meet cylinders of various measurement;

Auto cylinder length adjustment available;

Technique Specifications:

Model		HY-200H	HY-200H1	HY-200HO
Cylinder Diameter		40mm--200mm	40mm--200mm	40mm--200mm
Cylinder Length		10mm-4000mm	10mm-4000mm	10mm-4000mm
Materials Thickness		0.15mm-1.0mm	0.15mm-1.0mm	0.15mm-1.0mm
Control System		PLC	PLC	PLC
Overall dimension		4200mm880mm1500mm	4200mm880mm1500mm	4200mm880mm1500mm
Productivity	Ultrasonic Welding	Not Available for This Model	50pcs/m (Aaccording to cylinder length: 100mm/pc)	50pcs/m (Aaccording to cylinder length: 100mm/pc)
Productivity	Automatic Gluing	60pcs/m (Aaccording to cylinder length: 100mm/pc)	60pcs/m (Aaccording to cylinder length: 100mm/pc)	60pcs/m (Aaccording to cylinder length: 100mm/pc)

Cylinder length: 10mm-4000mm;

Cylinder Diameter:20mm-200mm (beyond this range, custom machine available)

Design and Parameter above Can Be Customized.
The manufacturer have the right to modify the design and parameter without prior notice

Industrial Fields Applied of of Full Automatic Cylinder forming Machine

PVC cylinder packing, PP cylinder packaging, APET cylinder packaging, PETG cylinder packaging, plastic cylinder packaging, paper cylinder packaging, paper material cylinder packaging, paper tube cylinder packaging, transparent plastic cylinder packaging.

Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products

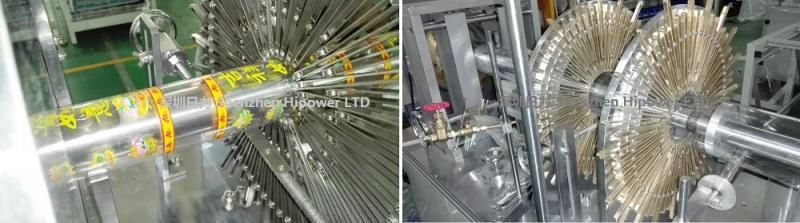

Date forming force the use of automatic cylinderHIPOWER Full Automatic Cylinder forming Machine have good performance that cylinder edge curled with exact even diameter and length; Full colsed visual studio to avoid secondary product contamination; cooperated with HIPOWER

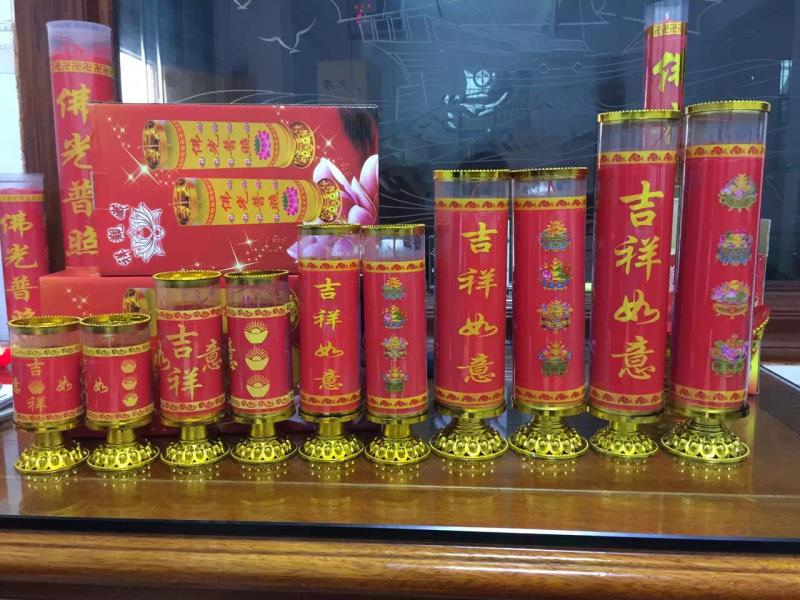

Samples：
