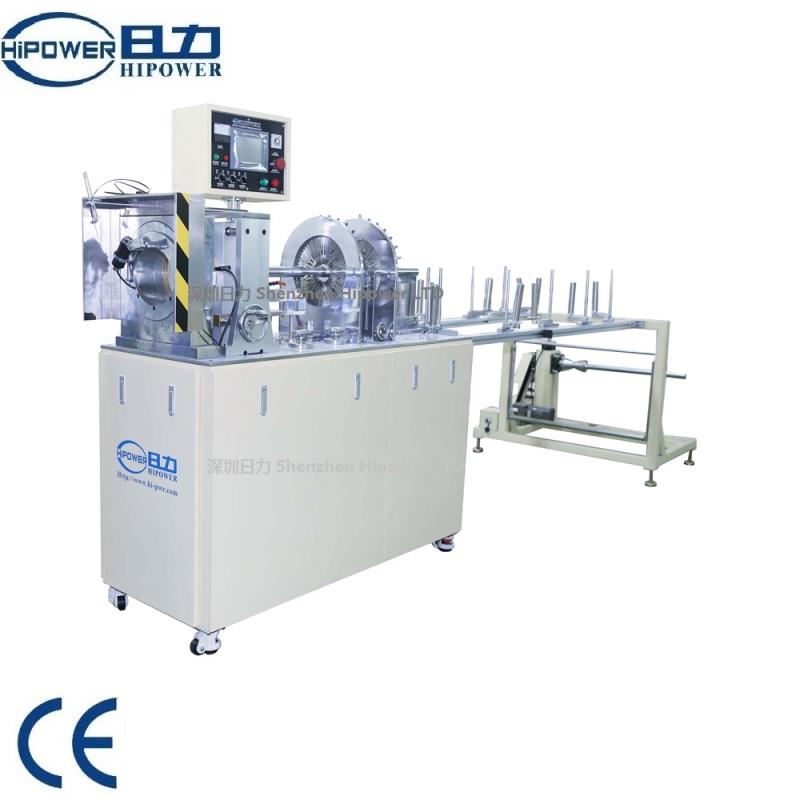

HY-200HO Automatic PET and PVC Cylinder forming machine
| Model： | HY-200HO |
| Scope Of Application： | Automatic Cylinder forming Machine for cylinders made of PVC, APET, PETG and other transparent plastic materials; Automatic material feeding and unloading; Making ideal cylinders for packaging candy, |
| Features： | Automatic material feeding and unloading; Making ideal cylinders for packaging candy, |

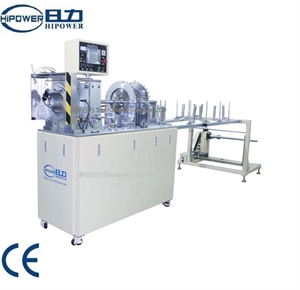

HY-200HO Automatic Cylinder forming machine with CE certificate
Features of of HIPOWER Full Automatic Cylinder forming Machine
Both ultrasonic and automatic gluing function available
PLC man-machine interface operating system, servo motor drives;
fast and accurate cylinder forming effect;
cylinder body automatic feeding and automatic crimping;
designed to meet cylinders of various measurement;
Auto Cylinder length adjustment available;
Machine Specification:
Model
HY-200H
HY-200H1
HY-200HO
Cylinder Diameter
40mm--200mm
40mm--200mm
40mm--200mm
Cylinder Length
10mm-4000mm
10mm-4000mm
10mm-4000mm
Materials Thickness
0.15mm-1.0mm
0.15mm-1.0mm
0.15mm-1.0mm
Control System
PLC
PLC
PLC
Overall dimension
4200mm*880mm*1500mm
4200mm*880mm*1500mm
4200mm*880mm*1500mm
Productivity
Ultrasonic Welding
Not Available for This Model
50pcs/m (Aaccording to cylinder length: 100mm/pc)
50pcs/m (Aaccording to cylinder length: 100mm/pc)
Automatic Gluing
60pcs/m (Aaccording to cylinder length: 100mm/pc)
60pcs/m (Aaccording to cylinder length: 100mm/pc)
60pcs/m (Aaccording to cylinder length: 100mm/pc)
HIPOWER Full Automatic Cylinder forming Machine have good performance that cylinder edge curled with exact even diameter and length; Full colsed visual studio to avoid secondary product contamination; cooperated with HIPOWER HY-200H or HY-200H1, automatic and no manual production line is realized.
Full Automatic Cylinder forming Machine adopts robotic manipulatos to feed or take materials automatically; can meet forming application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm); wonderful forming effect, no scratch, and exact even cylinder height, with error range: 0.05mm.
Can construct production line with HIPOWER HY-2102A(cylinder curling machine) and HY-2030(Full Auto Cylinder curling Machine)
Hipower is the company specialized in producing and designing cylinder forming machines.
Welded Samples:
Machine Drawings:

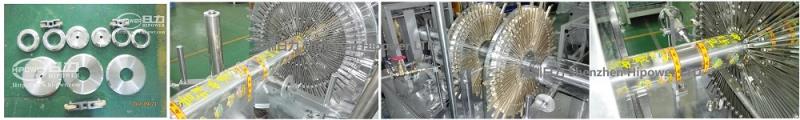

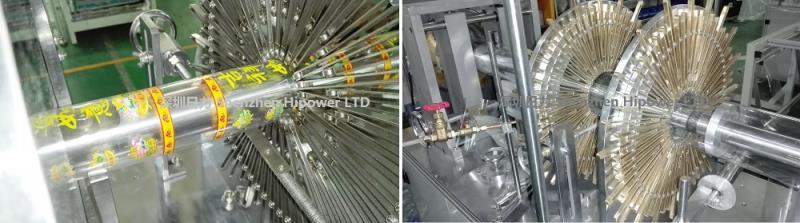

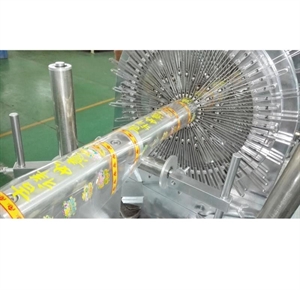

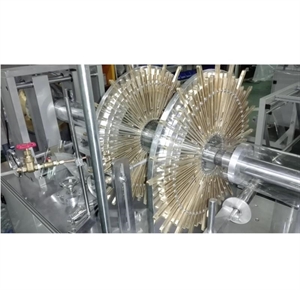

Machine Parts View:
