HY-2030 Clear Cylinder Edge Curling Machine

Model：	HY-2030

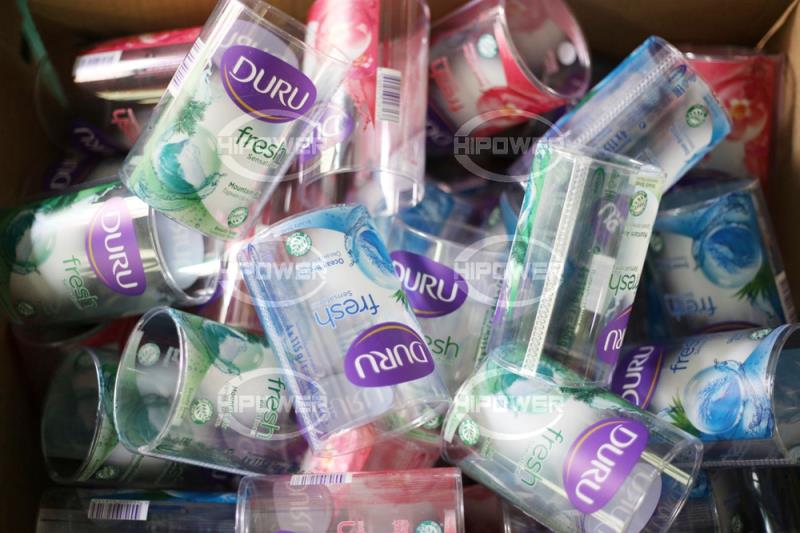

Scope Of Application：	Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and oth
Features：	for cylinders made of PVC, APET, PETG and other transparent plastic materials;

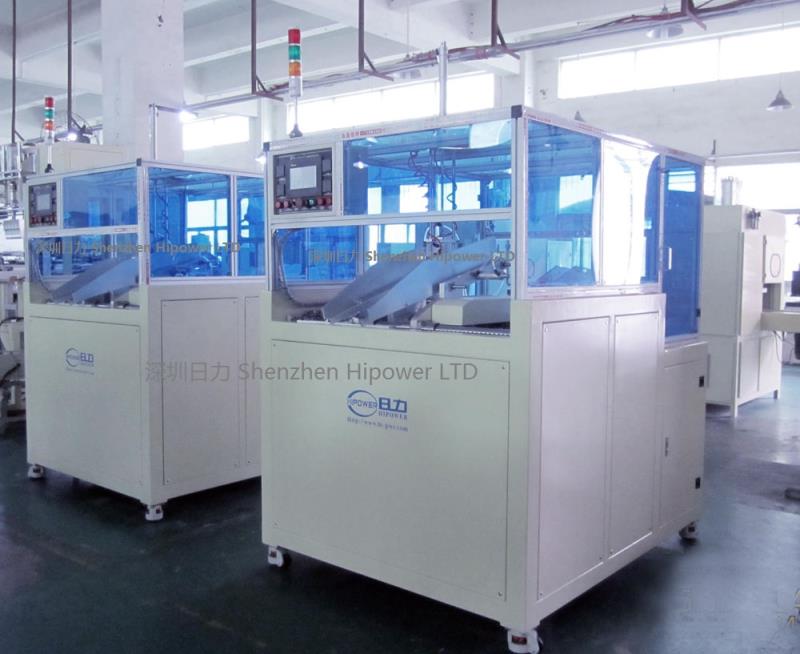

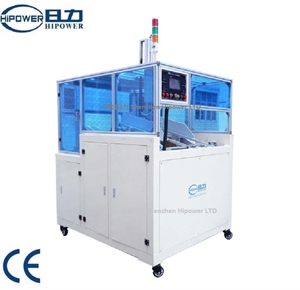

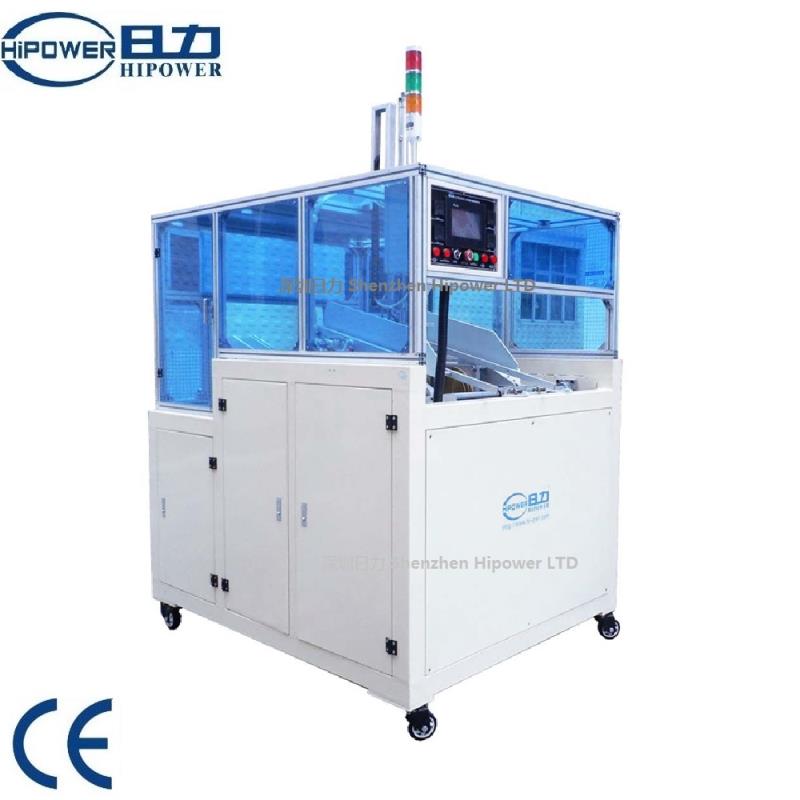

HY-2030 Full Automatic Cylinder Edge Curling Machine
Features of of HIPOWER Full Automatic Cylinder Edge Curling Machine
PLC man-machine interface operating system, servo motor drives; fast and accurate cylinder edge curling effect;

cylinder body automatic feeding and automatic crimping; designed to meet cylinders of various measurement;

HIPOWER Full Automatic Cylinder Edge Curling Machine have good performance that cylinder edge curled with exact even diameter and length; Full colsed visual studio to avoid secondary product contamination; cooperated with HIPOWER HY-200H or HY-200H1, automatic and no manual production line is realized.
Full Automatic Cylinder Edge Curling Machine adopts robotic manipulatos to feed or take materials automatically; can meet edge curling application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm); wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: ¡À0.05mm. Can construct production line with HIPOWER HY-2615(cylinder forming machine for painted sheets) and HY-200H(Full Auto Cylinder Forming Machine)
Hipower is the company specialized in producing and designing cylinder edge curling machines.

Model	HY-2030
Material	PVC, PET, PP, PETG ,APET
Power	4500W
Dia.	40-200mm
Length	80-350mm
Film thickness	0.3mm-0.5mm
Productivity	8sec/2piece
Dimension	L2050W1300H2250mm
