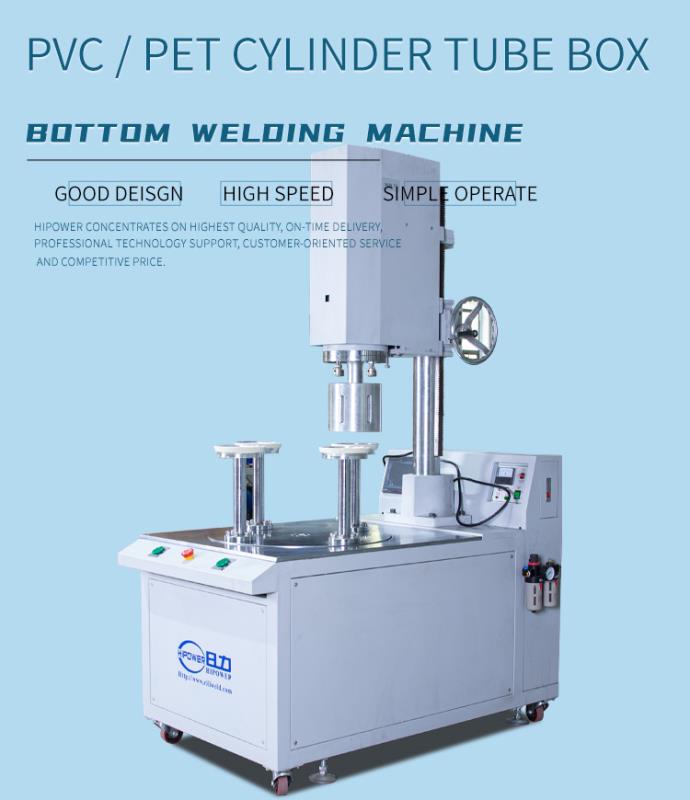

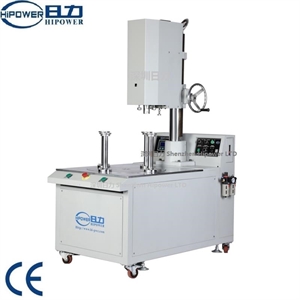

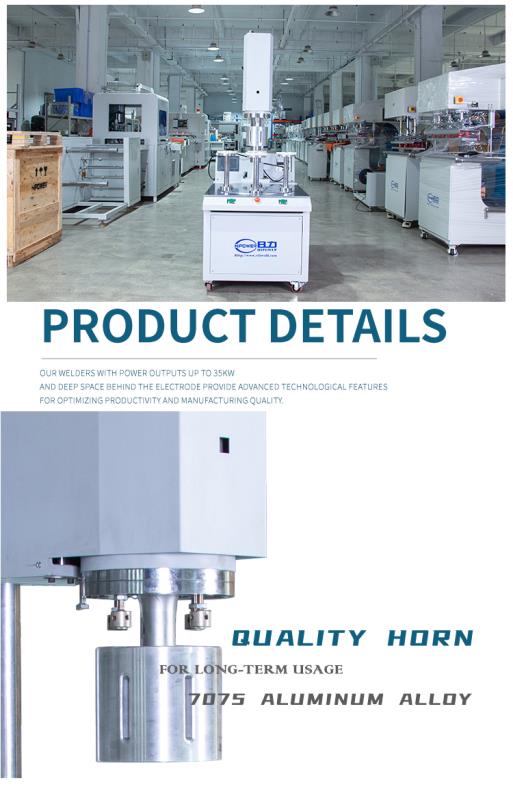

Cylinder Bottom ultrasonic welding machine 2600W-4200W

Model: HC-4215Y-4AC
Scope Of Application: Mainly used for PVC, APET, PETG and other plastic cylinder bottom welding;
Features: ompletely replace the traditional gluing process, the new environmentally friendly production methods available;

Cylinder Bottom ultrasonic welding machine 2600W-4200W

Product Features

Four working postion auto turnplate design; precision positioning segmentation;
using the principle of ultrasonic bonding, the effect is strong and beautiful and no scratches.
To meet welding cylinders of different diameter, height, material thickness;
machine operation simple and efficient;
cooperate  HY-2030 fully automatic crimping machine to achieve the purpose production lines.
Professional ultrasound bonding machine not only used for PVC, APET, PETG material
cylinder bottom welding, but also applied for welding application; can meet edge curling application
for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm);
wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: 0.05mm.
machine operation simple and efficient (production speed: 2 to 5 second per piece adjustable);
cooperate  HY-2030 fully automatic crimping machine to achieve the purpose production lines.
Industrial Fields Applied
Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear,
badminton, snack food and other products

 Model              HC-2615D-4AC / HC-4215D-4AC
Voltage                                 220V
Pneumatic range            2-7bar
Frequency                          15KHz
Output POWER            2600W-4200W/15KHz
Max Input power            1.2KW to 2.3KW
Vibrational System       Auto-stimulating
Prodcution speed          2-5sec/pc
Cylinder Diameter              20-200mm
Air Compressor                 1HP to 2HP

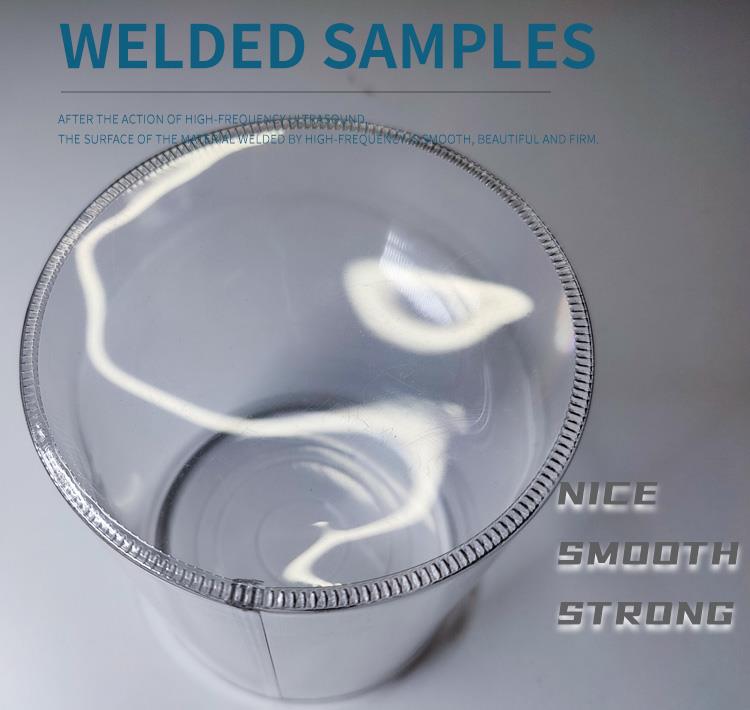

 Sample Views:
