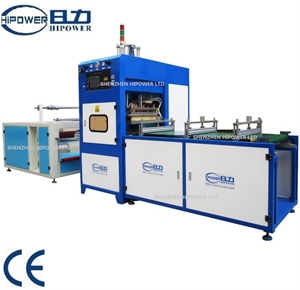

HR-8000P-20T High Frequency Machine for PET,PVC,PETG,APET,GA

Model：	HR-8000P-20T
Scope Of Application：	Application: Specialize for transparent PET soft plastic boxes making.Can be also called transparent PET soft plastic box forming machine. High Frequency welding machine for crease soft plastic box machine for mass production of present packaging industry
Features：	flattening system, PLC program control,precision welding and formingWelding and cutting both function available.

HF Soft Crease Folding Box forming machine for PET, PVC
Application:
It is especially designed for Clear Packaging Boxes, soft crease box forming, PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Products:
1. PVC Box 2. PET Box 3. PET-G Box
4. A-PET Box 5. GAG box 6. Other 30%PVC based Plastic packing box
Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products
clearly without opening the package.
On the other hand, the see-through packaging method attract attention of customers, young or old.

Model HR-8KWP-30T HR-15KWP-30T
Output Power 8000W 15000W
Anti-Spark System U.S.A. PL-5557 High sensitive anti-spark system
Voltage 3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency 27.12MHz +/- 0,6 %
Input power 15KVA 25KVA
Rectifier SILICON DIODE
Oscillation tube 7T69RB 8T85RB
Max pressure 25T 30T
Operation mode Pneumatic Operated
Max gap of electrodes 200mm
Size of active horn 150mm
Upper Electrode (W*H*L) 500*700mm 700*800mm
Size of Work Table (L*W) 500*700mm 700*800mm
Mould Heating Temperature 30-200℃ Adjustable
Welding time 0.01~9.99s adjustable
Net weight 1500kgs 1500kgs
Foreseen productivity: According to welding times and operator skills

We developed this high frequency machine for the PVC &PET soft-crease boxes,
also known as PVC folding box /Offset Printing Folding Boxes/PVC&PET foldable box ,etc.
This is an automatic high frequency soft line creasing machine with flattening system ;
It works with the transparent roll of PVC or PET , go through the flattening system first , before material creased by High Frequency Machine .
This machine makes the perfect creased line on the flat PVC & PET sheet according to the shape
of the box which makes the box easy to fold , fast to pack and elegant in appearance .with
perfect and clean cutting finish ,it easily goes with next production step : the side gluing machine .

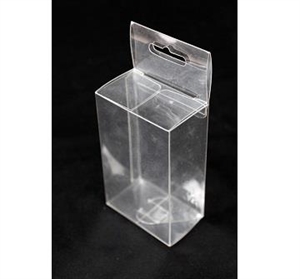

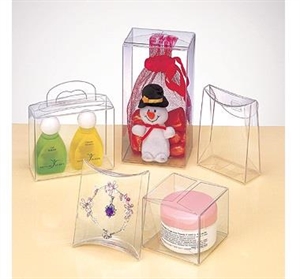

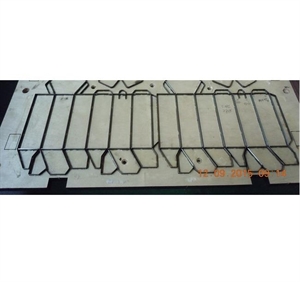

Sample Views:
