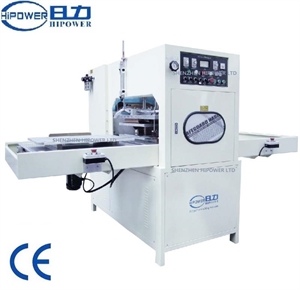

HR-15KWAT High Frequency shuttle way soft crease box making
| Model： | HR-15KWAT |
| Scope Of Application： | Applied for PVC soft crease from sheet |
| Features： | sliding table machine, for semi-auto option |
Application:
It is especially designed for Clear Packaging Boxes, soft crease box forming, PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type: Film Sheets or Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Products:

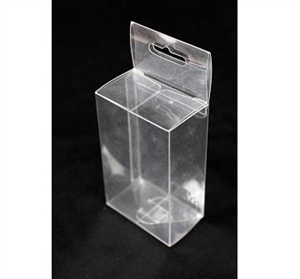

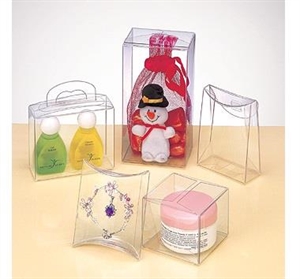

1. PVC Box 2. PET Box 3. PET-G Box
4. A-PET Box 5. GAG box 6. Other 30%PVC based Plastic packing box
Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products
clearly without opening the package.
On the other hand, the see-through packaging method attract attention of customers, young or old.
| Model | HR-8000AT | HR-15KWAT |
| Power | 8000W | 15000W |
| Supply power | 380V 50/60Hz / Customized | |
| Frequency | 27.12Mhz | |
| Input supply | 15KVA | 25KVA |
| Rectifier | SILICON DIODE | SILICON DIODE |
| Oscillation tube | 7T69RB | 8T85RB |
| Max pressure | 1000KG | 1500KG |
| Gap of electrodes | 150MM | 150MM |
| Distance of active horn | 150MM | 150MM |
| Size of upper electrode | 500*700MM | 700*800MM |
| Size of buttom electrode | 500*700MM | 700*800MM |
| Temperuture Scale | 30~200℃ | |
| Welding time | 0~10 S | |
| Productivity | 6500 times / 8 hours | |
