HR-15KW-30T Hydraulic HF PET Soft Crease Box Welding and Cutting machine

Model: HR-15KW-30T
Scope Of Application: PET / PVC folding box /Offset Printing Folding Boxes/PVC&PET foldable box
Features: Automatic sliding tray design, 30T hydraulic cutting pressure.

Application:
It is especially designed for Clear Packaging Boxes, soft crease box forming, PVC & PET folding box, Transparent Foldable plastic box making.
The plastic box can be made of PVC, PET, APET, PETG, GAG, and other Eco-friendly plastic films.
Depend on plastic material type:  Film Sheets  or  Plastic Roll, you can choose a semi-auto machine, or an automated machine.
Products:
1. PVC Box    2.  PET Box   3. PET-G Box
4. A-PET Box  5. GAG box     6. Other 30%PVC based Plastic packing box
Your customer will be happy to buy the products packed in clear / transparent plastic box, since they can know the products
clearly without opening the package.
On the other hand, the see-through packaging method attract attention of customers, young or old.

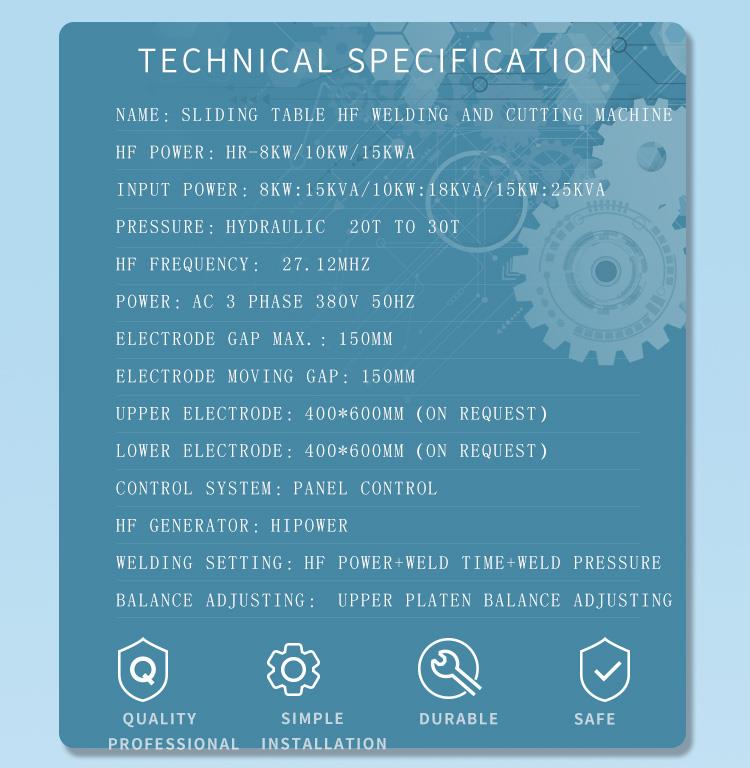

Model                      HR-15KW-30T          HR-25KWP-40T
Output Power                15000W               25000W
Anti-Spark System    U.S.A.  PL-5557 High sensitive anti-spark system
Voltage               3P AC 380V/220V/440V 50Hz-60HZ or customize
Frequency             27.12MHz  +/- 0,6 % / 13.56MHZ +/- 0,6 %
Input power                 25KVA                 25KVA
Rectifier                          SILICON DIODE
Oscillation tube            8T85RB                 8T25RA
Max pressure                800kg                  800kg
Operation mode                   Pneumatic Operated
Max gap of electrodes                  150mm
Size of active horn                    150mm
Upper Electrode (W*H*L)     700*800mm             800*900mm
Size of Work Table (L*W)    700*800mm             800*900mm
Welding time                         0.01~9.99s adjustable
Mould Heating Temperature            30-200℃ Adjustable
Net weight                    1500kgs             1500kgs
Foreseen productivity:   According to welding times and operator skills

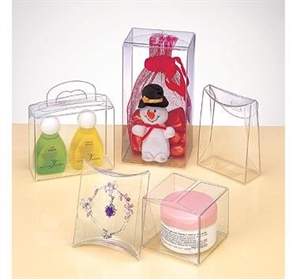

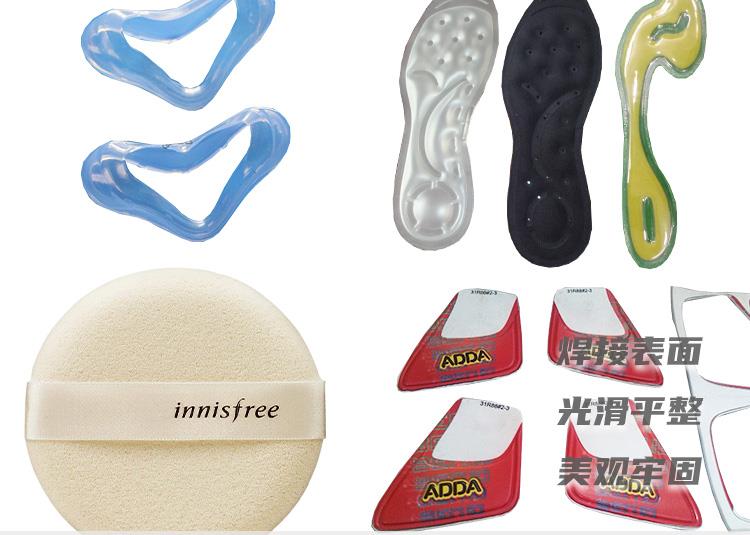

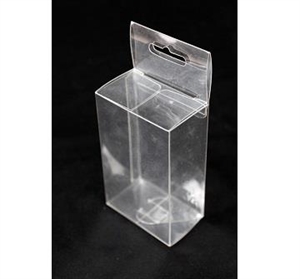

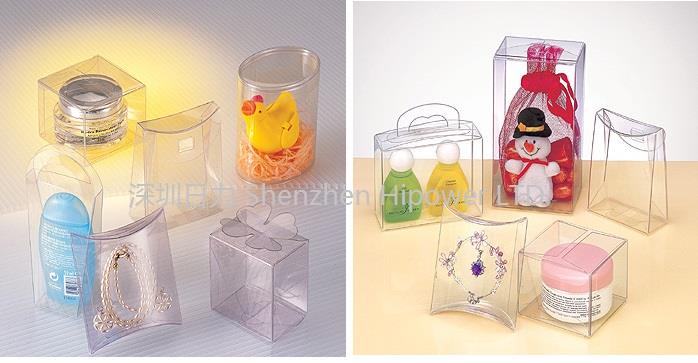

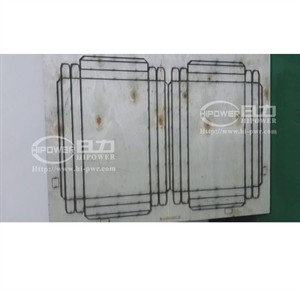

Sample Views:

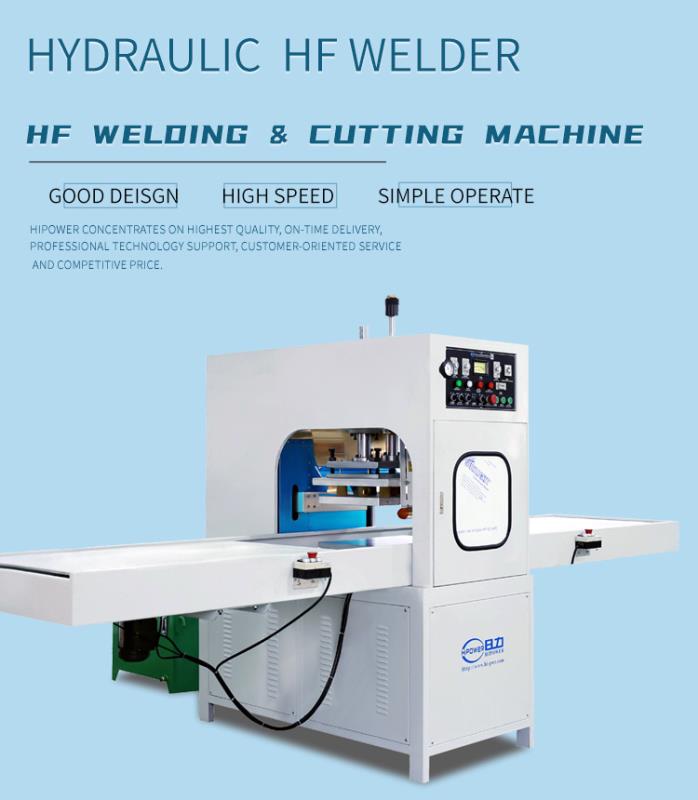

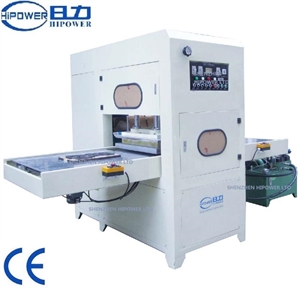

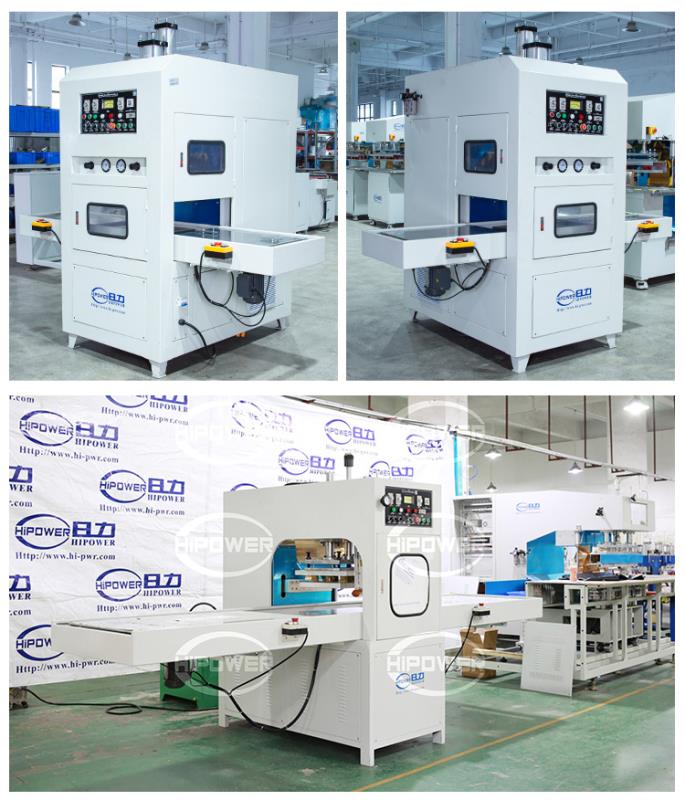

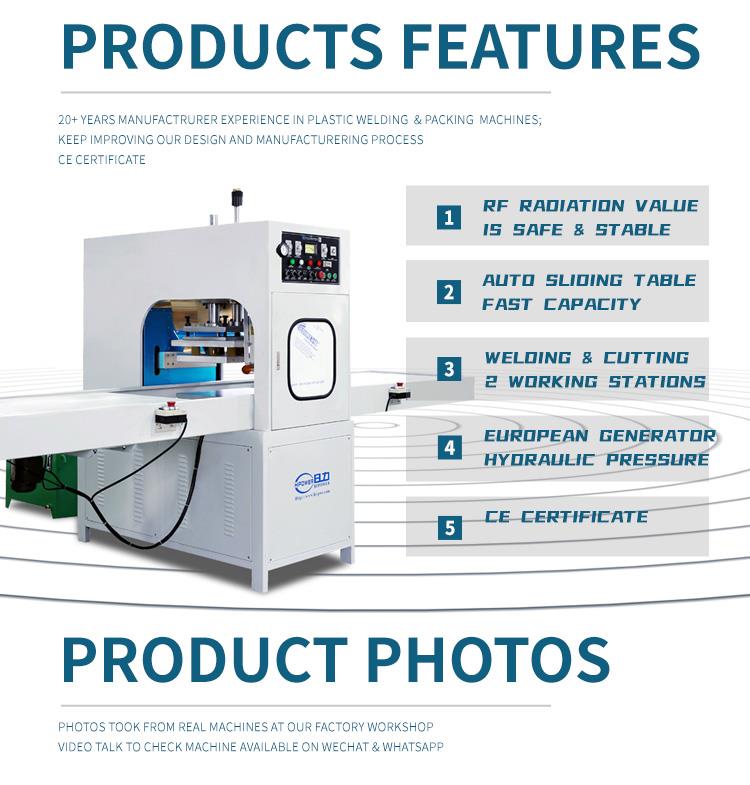

Machine Views:

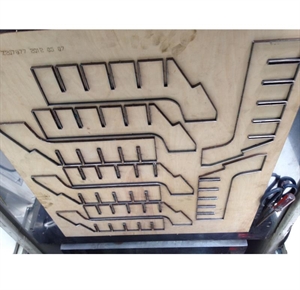

Machine Drawings:






Machine General Features:

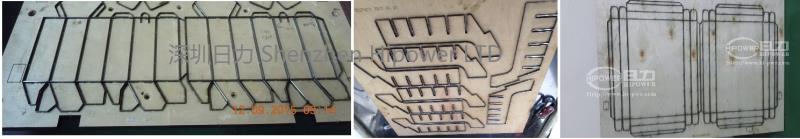

1. Length, width and radian of welding area can be adjusted by change welding die.
2. European-model square high frequency vibration box, more reliable and stable in output
3. Automated  Three-in-one machine :
auto film flattening----(Optional: auto offset printing)---auto soft crease forming & waste scrap cutting

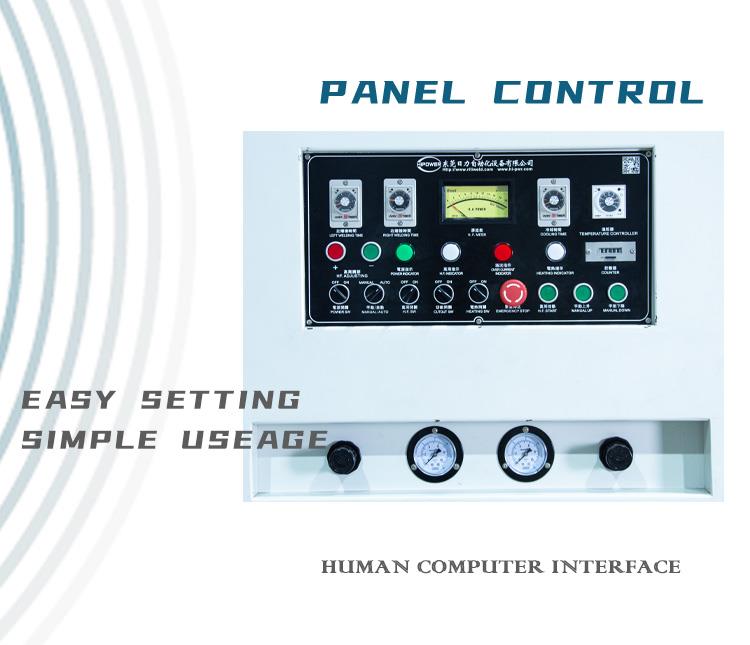

4. PLC & HMI Touch screen operated, making the operating process simple and time-saving
5. Servo-motor automated, enables exact off-set printing effect, box & scrap cutting performance
6. Separated Continuous Oil heating flatten system, PET, PETG, GAG.. Plastic flatten is available
7. High frequency welding press Sole hydraulic operated (two phase pressing: The first phase for soft crease forming,
The second phase for waste scrap cutting)

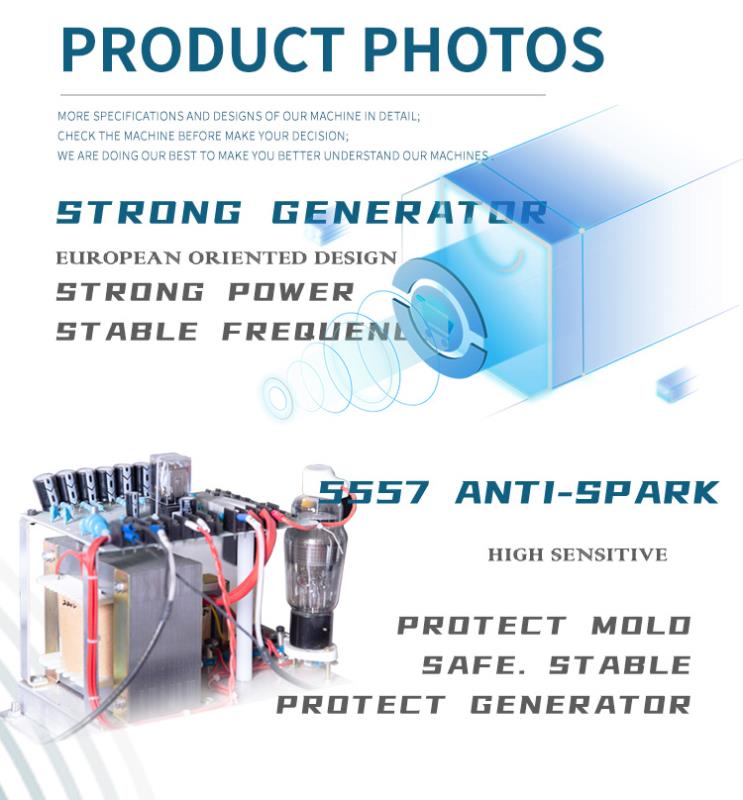

8. High sensitive 5557 anti-flash system to protect the welding Mould
9. Human oriented mechanical frame design
10. Mould heating function available, enables beautiful soft crease forming.
11.Customized work table dimensions, electrode holder dimensions, tooling
12. Online service by Email, Fax, Video Online- allowing remote live video servicing of
basic setup and repairs through the use of face-to-face online video.
13. Customer's site installation, training & maintenance available
14. CE rated machine; factory verified by SGS and BV;
Optional Features on Request:
1.Off-set printing Unit available
2. HF Filter unit available
3. Auto-high frequency tuning technology
4. High frequency generator on separate cabinet
