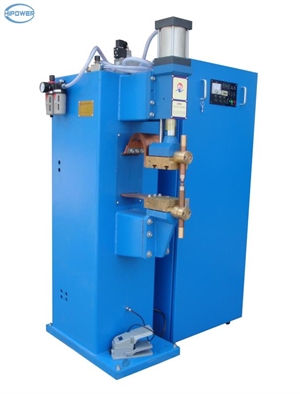

HA-C3K Capacitance Energy-Storing Type Spot Welder
| Model： | HA-C3K |
| Scope Of Application： | It is used to high quality weld wide range of the , electric appliance , the copperstainless steel of the car ,battery welding |
| Features： | 1、Full numerical IC control, precise locking voltage（0.9v）2、Japan“HITACHI”，“NCC”，America“CDE”capacitor3、German“SEMIKRON"silicon controlled rectifier4、1/1000s instantaneous discharging，0.8s quick charging |
Scope：
It is used to high quality weld wide range of the , electric appliance ,the copperstainless steel of the car ,battery welding
Product Features:
1、Full numerical IC control, precise locking voltage（±0.9v）2、Japan“HITACHI”，“NCC”，America“CDE”capacitor
3、German“SEMIKRON"silicon controlled rectifier
4、1/1000s instantaneous discharging，0.8s quick charging
Specification:
| Modle | Voltage | Power | Output | Capacitance | Pressurization | Electrode Stroke | Throat Dimension | Aluminium | Brass | Mild steel and Stainless steel |
|
|
V | KVA | WS | UF | KG | mm | mm | mm | mm | mm |
| HA-C3K | 220 | 3.5 | 1500 | 13500 | 350 | 80 | 200*380 | 1.2*2 | 1.2*2 | 1.5*2 |
