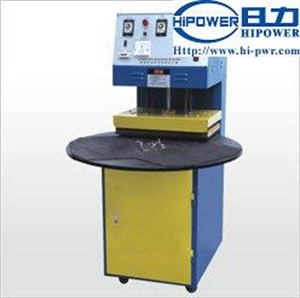

Cardboard and Blister Packaging Machine
| Model： | HB-50 |
| Scope Of Application： | Functions Blister sealing and packagingHeat press function |
| Features： | Features HB series blister packaging machine is to sealing the contact surface between blister cardboard and heater stripBlister packing by heater stripSemi-automati |
Features
HB series blister packaging machine is to sealing the contact surface between blister cardboard and heater strip
Blister packing by heater strip
Semi-automatic blister packaging and sealing without thermoforming
One person operate one machine, speed is 18s/pcs
Manual feeding the products to the blister molds
Easy to use by using digital time relay to control the operation
Pneumatic drive and need connect to air compressor
3 station to fix the blister molds for continuous blister packaging
Packing process controlled by proximity switch
Assemble the wooden disk and blister molds to the machine before using
Functions
Blister sealing and packaging
Heat press function
Application:
Blister Packaging Machine
The machine applies to all kinds of PVC, PE, PP and other plastic sheets and plastic molding on the floor together, simple, convenient and efficient.Such as the beautiful toys, stationery, household items, small tools, blister sealing packaging.

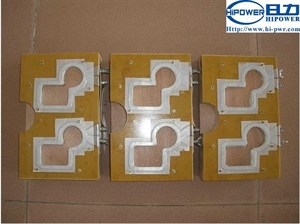

Blister molds
One machine need three blister molds
Specifications
Press plate size:500mm*300mm
Speed:18tims/min
Weight:70kgs
Voltage:220v 50~60hz
size:1090*770*1580MM
HB series blister packaging machine is to sealing the contact surface between blister cardboard and heater strip
Blister packing by heater strip
Semi-automatic blister packaging and sealing without thermoforming
One person operate one machine, speed is 18s/pcs
Manual feeding the products to the blister molds
Easy to use by using digital time relay to control the operation
Pneumatic drive and need connect to air compressor
3 station to fix the blister molds for continuous blister packaging
Packing process controlled by proximity switch
Assemble the wooden disk and blister molds to the machine before using
Functions
Blister sealing and packaging
Heat press function
Application:
Blister Packaging Machine
The machine applies to all kinds of PVC, PE, PP and other plastic sheets and plastic molding on the floor together, simple, convenient and efficient.Such as the beautiful toys, stationery, household items, small tools, blister sealing packaging.
Blister molds
One machine need three blister molds
Specifications
Press plate size:500mm*300mm
Speed:18tims/min
Weight:70kgs
Voltage:220v 50~60hz
size:1090*770*1580MM
