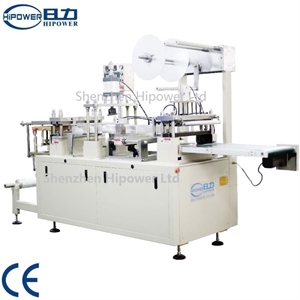

HY-450 Automatic Plastic Blister Forming and Cutting Machine
| Model： | HY-450 |
| Scope Of Application： | widely used in medicine, food, electron, medical equipment such as capsules, tablets,penicillin bottle, ampoule,oral liquid, candy and special-shaped Al-PVC blister packaging |
| Features： | 1. By relay under automatic mode.2. The sheet moving by the servo motor: its speed can be adjustable, the torque is large and high precision.3.It is reliable in thick sheets.4. With the specially-made alloy track its friction ratio is small and it i |
Feature:
1. By relay under automatic mode.
2. The sheet moving by the servo motor: its speed can be adjustable, the torque is large and high precision.
3.It is reliable in thick sheets.
4. With the specially-made alloy track its friction ratio is small and it is stable and quick in drawing sheets.
5. Air channel adopts copper pipe: anti-aging protective, durability.
6.Digital display pressure regulating module control oven temperature: voltage stabilization, temperature stabilization and beautiful and graceful.
7.The customer must offer the sample or drawing, then we can design and produce the forming mold and cutting mold.The machine is no-including the cost of those molds.
Model HY-450
Material PVC,HIPS,PS,PP,APET,PETG
Forming width 560-710mm
Forming length 760-1220mm
Forming height Max. 200mm
Vacuum Pump 1-3KW(4HP)
Chiller system 61000BTU
Spray gun 5-10units
Temperature control system 33-66units
Heater power consumption 26KW
Average power consumption 16KW
Power supply 380VAC/3phase/50Hz
Machine size(L×W×H) 6560×1500×2600mm
Net weight 3150Kg
1. By relay under automatic mode.
2. The sheet moving by the servo motor: its speed can be adjustable, the torque is large and high precision.
3.It is reliable in thick sheets.
4. With the specially-made alloy track its friction ratio is small and it is stable and quick in drawing sheets.
5. Air channel adopts copper pipe: anti-aging protective, durability.
6.Digital display pressure regulating module control oven temperature: voltage stabilization, temperature stabilization and beautiful and graceful.
7.The customer must offer the sample or drawing, then we can design and produce the forming mold and cutting mold.The machine is no-including the cost of those molds.
Model HY-450
Material PVC,HIPS,PS,PP,APET,PETG
Forming width 560-710mm
Forming length 760-1220mm
Forming height Max. 200mm
Vacuum Pump 1-3KW(4HP)
Chiller system 61000BTU
Spray gun 5-10units
Temperature control system 33-66units
Heater power consumption 26KW
Average power consumption 16KW
Power supply 380VAC/3phase/50Hz
Machine size(L×W×H) 6560×1500×2600mm
Net weight 3150Kg
