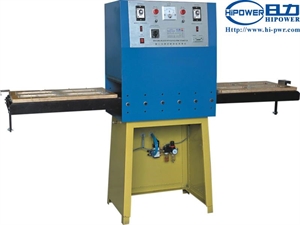

HB-60 Cardboard and Blister Packaging Machine
| Model： | HB-60 |
| Scope Of Application： | all kinds of PVC, PE, PP and other plastic sheets such as the beautiful toys, stationery, household items, small tools, blister sealing packagin |
| Features： | BH series blister packaging machine is to seal the contact surface between blister cardboard and heater strip Blister packing by heater strip Semi-automatic |
Features:
HB series blister packaging machine is to sealing the contact surface between blister cardboard and heater strip
Blister packing by heater strip
Semi-automatic blister packaging and sealing without thermoforming
One person operate one machine, speed is 18s/pcs
Manual feeding the products to the blister molds
Easy to use by using digital time relay to control the operation
Pneumatic drive and need connect to air compressor
3 station to fix the blister molds for continuous blister packaging
Packing process controlled by proximity switch
Press plate size:400mm*600mm
Speed:18tims/min
Voltage:220v 30A 3.5KW
size:1850*600*1580MM
HB series blister packaging machine is to sealing the contact surface between blister cardboard and heater strip
Blister packing by heater strip
Semi-automatic blister packaging and sealing without thermoforming
One person operate one machine, speed is 18s/pcs
Manual feeding the products to the blister molds
Easy to use by using digital time relay to control the operation
Pneumatic drive and need connect to air compressor
3 station to fix the blister molds for continuous blister packaging
Packing process controlled by proximity switch
Assemble the wooden disk and blister molds to the machine before using
Functions:
Blister sealing and packagingHeat press function
Application:
The machine applies to all kinds of PVC, PE, PP and other plastic sheets such as the beautiful toys, stationery, household items, small tools, blister sealing packaging.

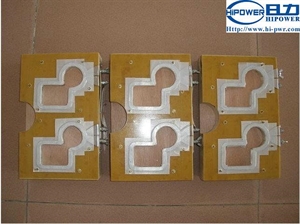

Blister molds:
One machine needs three blister molds
Specifications
Model:HB-60Press plate size:400mm*600mm
Speed:18tims/min
Voltage:220v 30A 3.5KW
size:1850*600*1580MM
