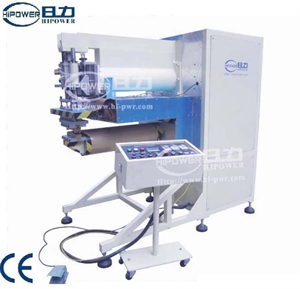

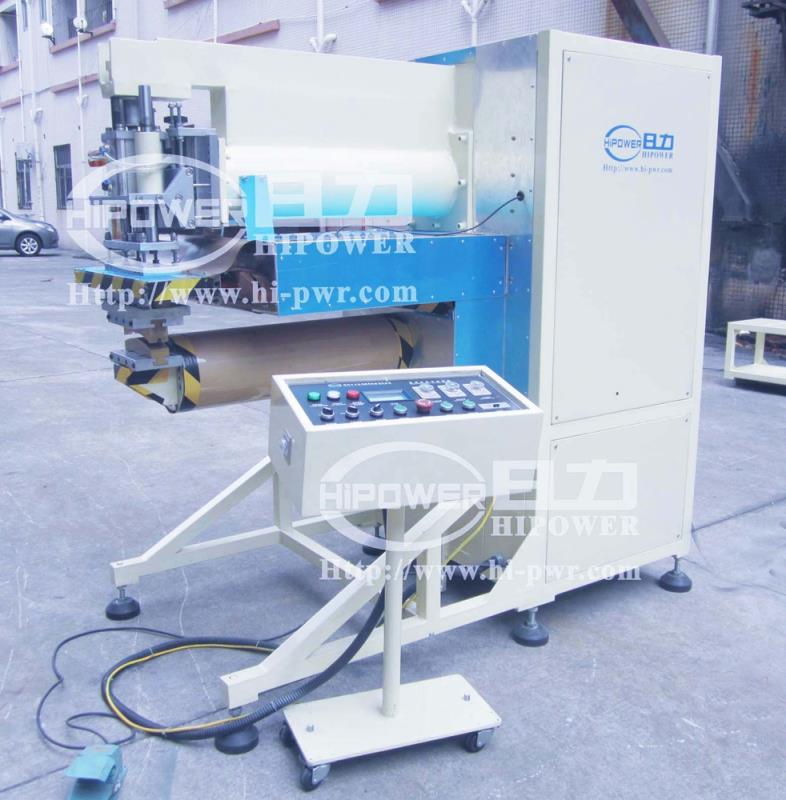

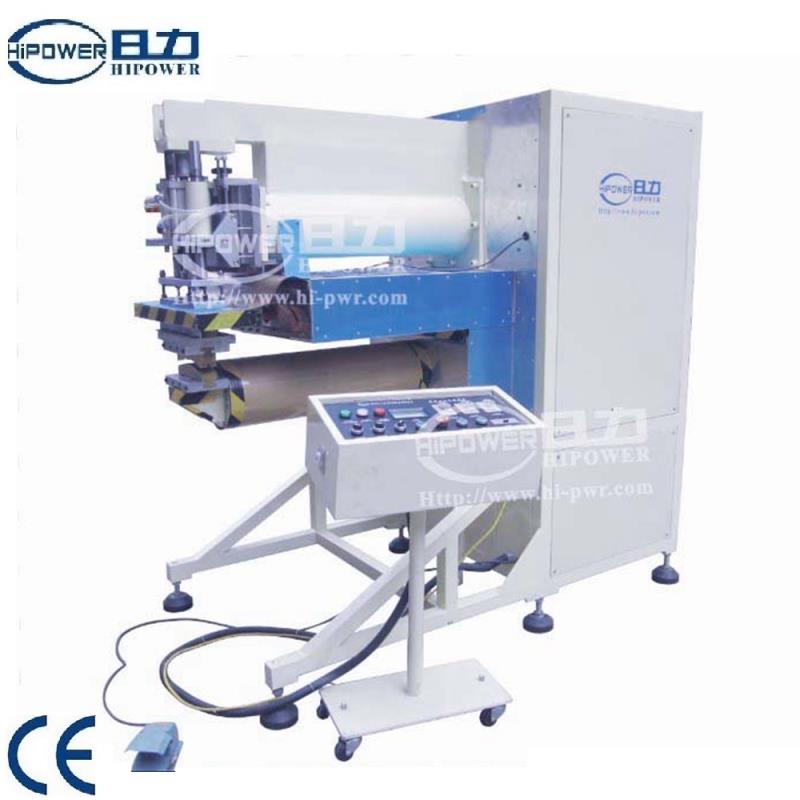

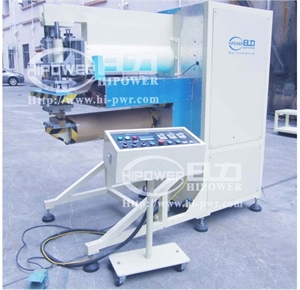

High Frequency Welder for Air Ducts, Flow Channels and Tubing
| Model： | HR-10KW-DW |
| Scope Of Application： | 1,Air ducts, Flow channels and tubing2,Ventilation tubes3,Round shaped soft PVC channels4,Safety equipment5,Zips welding |
| Features： | •Universal usage for PVC, PU, PET welding•Designed especially for ventilation tubes and air ducts production•Possibility to weld zips and stop curtains•Easy conversion to straight lines welding•Space behind the electrode for material placing up to |
Unique High Frequency Welder for Air Ducts, Flow Channels and Tubing
Main application:
1,Air ducts, Flow channels and tubing
2,Ventilation tubes
3,Round shaped soft PVC channels
4,Safety equipment
5,Zips welding
FEATURES:
- Universal usage for PVC, PU, PET welding
- Designed especially for ventilation tubes and air ducts production
- Possibility to weld zips and stop curtains
- Easy conversion to straight lines welding
- Space behind the electrode for material placing up to 1200 mm
-

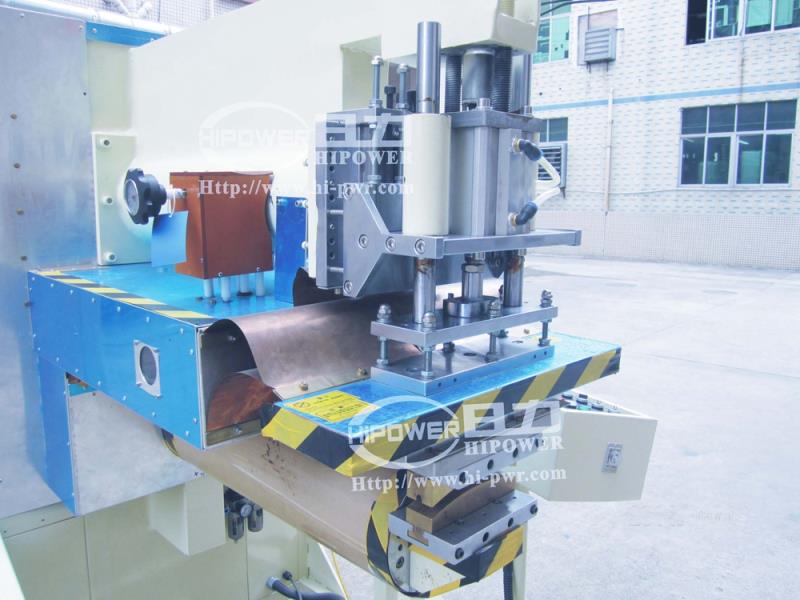

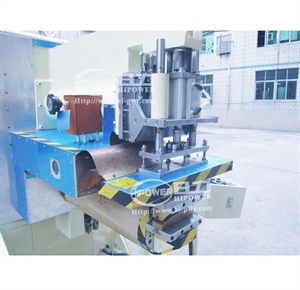

Top and bottom electrodes for high precision of welding
Ergonomic design
Machine's advantage:

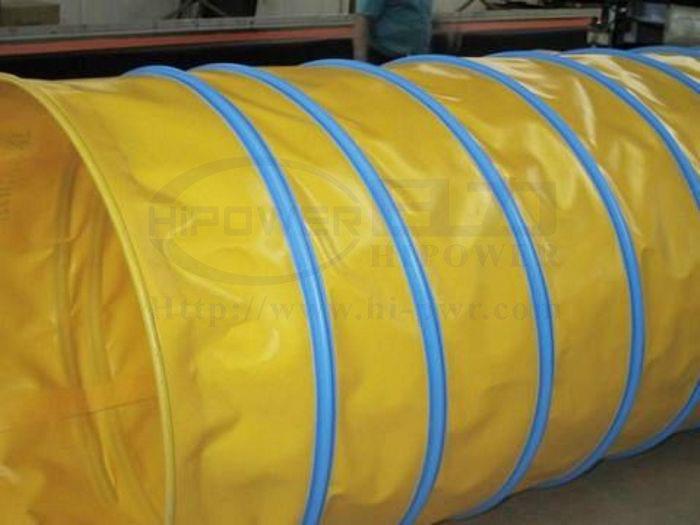

HR-10KW-DWM HF welding machine is a unique solution for the production of different size of ventilation tubes,

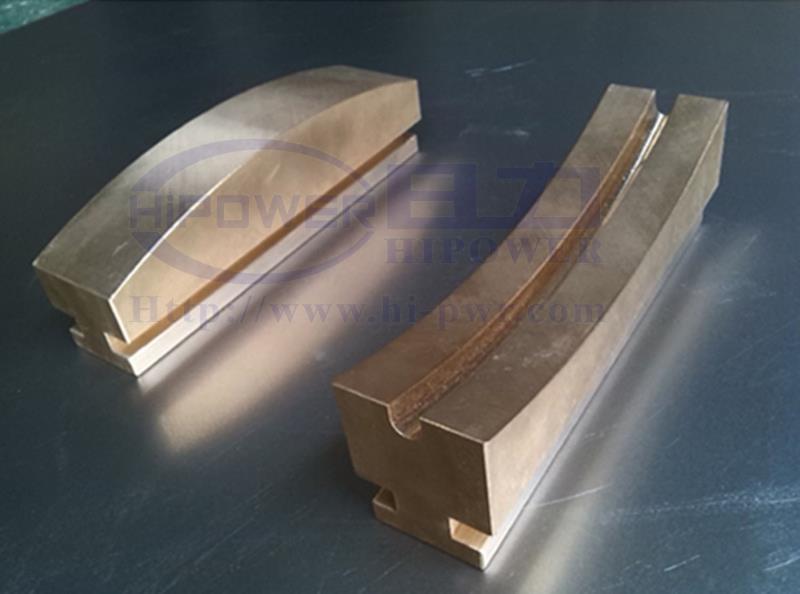

ducting and other forced air feeding solutions. Due to especially designed two part electrodes we are able to weld
various radiuses of round shaped products
The machine can be easily converted to zips and straight lines welding.
Large material volumes can be laid out behind the electrode to fulfill high requirements of production
Technicial Specification:
| MODEL: | HR-10KW-DWM | MAXPRESSURE: | 500KG | ||||||||
| POWER: | 10KW | MAX GAP OF ELECTRODES: | 200MM | ||||||||
| POWER SUPPLY: | 220/380V*3P 50/60HZ | SIZE OF ACTIVE HORN: | 160MM | ||||||||
| FREQUENCY: | 27.12MHz | SIZE OF UP ELECTRODE: | 100*200MM | ||||||||
| ELETRONIC POWER: | 18KVA | SIZE OF WORKING PLATE: | 100*200MM | ||||||||
| RECTIFIER: | SILICON DIODE | SCALE OF TEMPERATURE: | 30-200C Adjustable | ||||||||
| VIBRATIONAL TUBE: | E3069 | WELD TIME: | 0-10s Adjustable | ||||||||
| DRIVEN MODE: | PNEUMATIC | WELDING SURFACE: | 100CM2 | ||||||||
