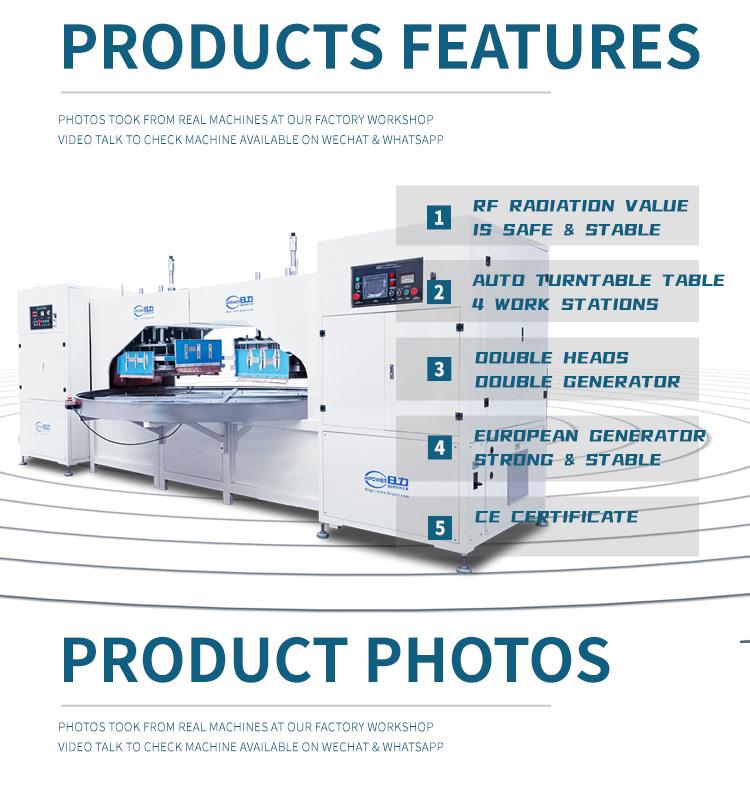

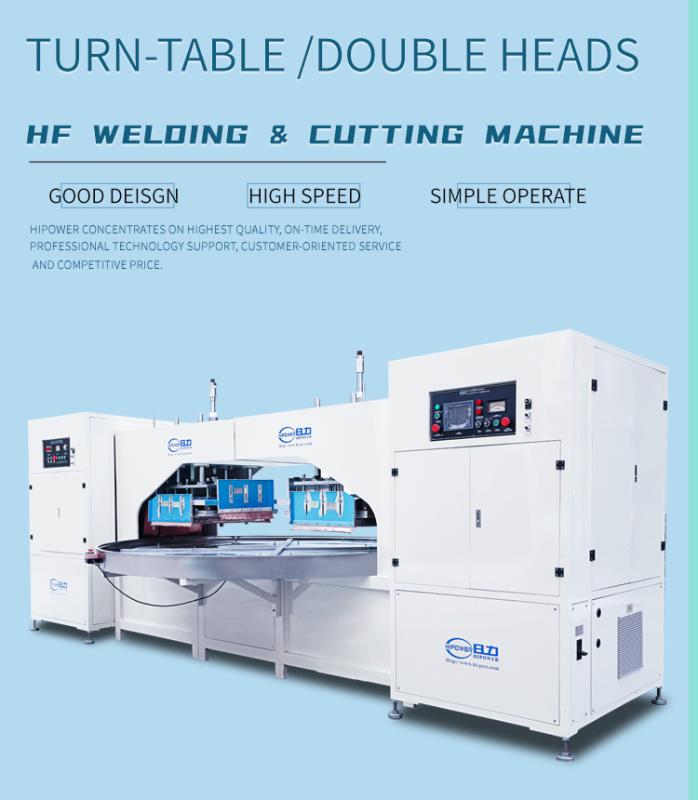

Auto turntable high frequency wedling machine

Model：	HR-10KW-4AC

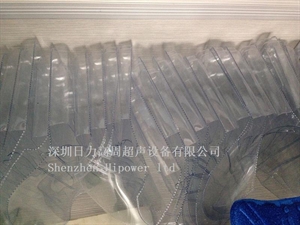

Scope Of Application：	high frequency packaging of blister+ paper card, and any other PVC material weldingAPET, PET welding and cutting, blister-blister (clam shell) packaging
Features：	Applied to welding and cutting technics with APET,PETG,GAT environmental protection materiale,toothbrush packing with PVC PET.Welding and cutting simultaneously (optional configuration)Adjustable cutting pressure,0.1---1 ton,capable of prearrangem

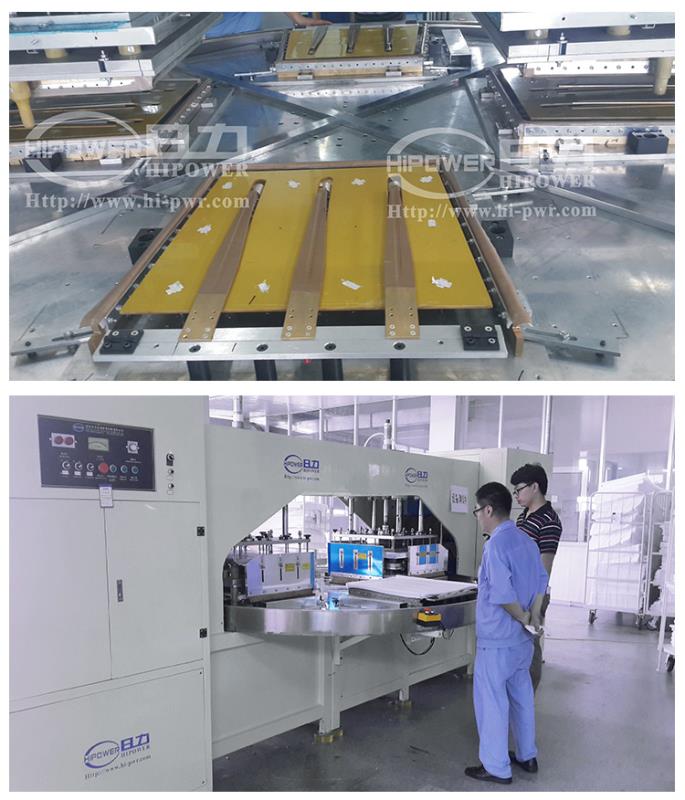

Automatic rotary high frequency blister & clamshell packaging machine for hard tools,toothbrush

Plus applicable blister sealing reel packaging, plastic shell with a manual or robotic discharge, sealing automatic roll feed, cutting.

Automatic rotary High frequency packaging machine Applicable industry:
Stationery packaging, electronic products packaging, MP3, MP4, MP5 plastic packaging, packing a toothbrush, dental floss packaging, toy packaging, gift packaging, hardware tools packaging, U disk and other plastic packaging paper card packaging, can also be used for soft PVC wire molded plastic boxes, plastic welding, PVC processing and other purposes.

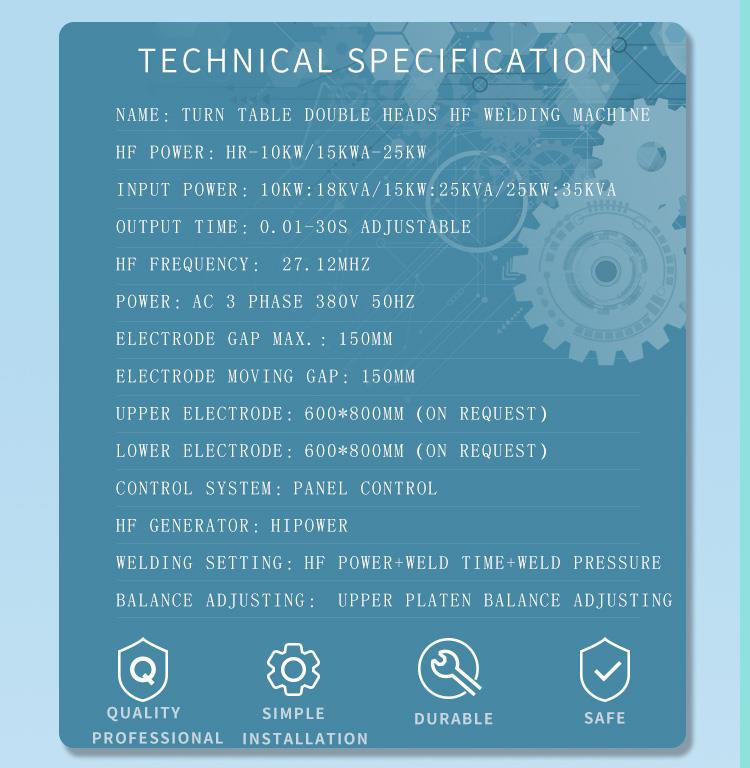

Technique specifications

Model	HR-10KW-4AC
Power	10KW
Voltage	380V 50/60Hz
Frequency	27.12MHz
Input power	18KVA
Rectifier	SILICON DIODE

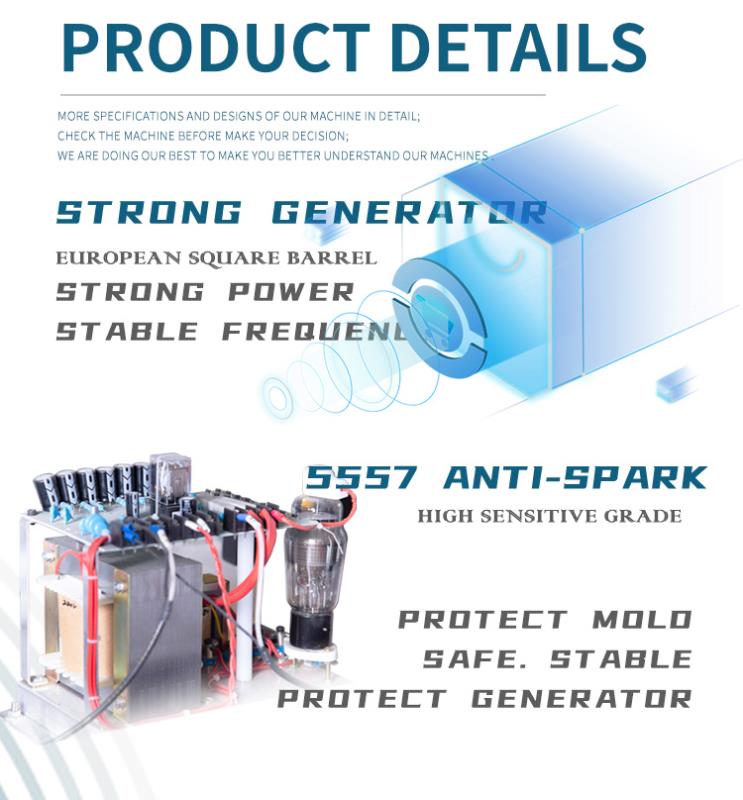

Oscillation tube	E3069RB
Max pressure	20T
Operation mode	oil pressure
Max gap between electrodes	200MM
The size of active horn	100MM

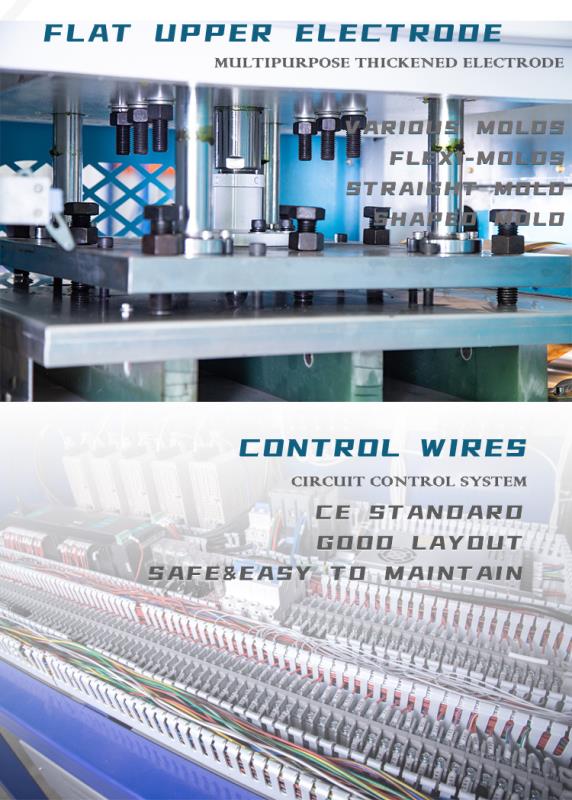

The size of upper electrode	300*500 mm
The size of lowwer electrode	350*500 mm
The range of tempreture	30~200Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 5000times/8h
Net weight	1.5T
Overall dimension	225015502200 mm
