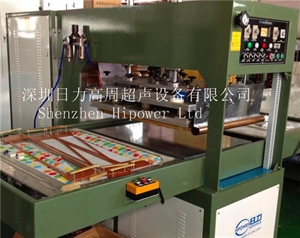

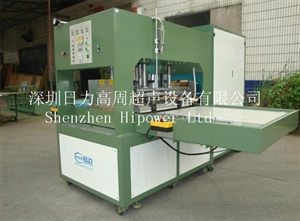

Baby matress high frequency welding machine

Model：	HR-25KWAT

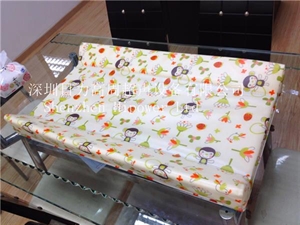

Scope Of Application：	for large-scale or large area PVC workpiece welding, like inflatable bed cushion, matress, toy etc.
Features：	1. Anti-flash system, to protect the tooling / mould 2. Welded C-frame steel structure with integrated HF generator 3. Custom requested size of work tables and welding platen acceptable 4. Adjustable parameter set in two working stations separ

Baby matress high frequency welding machine

Application: for large-scale or large area PVC workpiece welding, like inflatable bed cushion, matress, toy etc.

Multipurpose Shuttle High Frequency Welder

1. Anti-flash system, to protect the tooling / mould

2. Welded C-frame steel structure with integrated HF generator

3. Custom requested size of work tables and welding platen acceptable

4. Adjustable parameter set in two working stations separately

5. Two side manually or motor driven sliding shuttle work table

6. Heated Upper platen with thermostat, for helping HF sealing process

7. Close off HF welding function, the machine can be use as Standard Heat Welder

8. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films

9. European-model square high frequency vibration box, more reliable and stable in output

10. CE rated machine; factory verified by SGS and BV;

11. Customer's site installation, training & maintenance available

12. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.

13. High frequency welding press pneumatically operated

Technical Specification:

Model now	HR-15KW	HR-25KW	HR-35KW	HR-50KW
Power	15000W	25000W	35000W	50000W
Power supply	380V 50/60HZ
Frequency	13.56MHZ
Electric power	25KVA	35KVA	50KVA	70KVA
Prectifier	SILICON DIODE
Vibrational tube	8T25RB	8T25RA	8T87RB	9T64A
Maxpressure	1000kg	1000kg	1500kg	2000kg
Max gap of electrodes	100MM
Size of active horn	100MM
Size of upper electrode	30 inch*48 inch	30 inch *65 inch	40 inch *74 inch	50 inch *85 inch
Size of down electrode	50 inch *60 inch	50 inch *70 inch	50 inch *60 inch	50 inch *90 inch
Welding time	0~10S Adjustable
