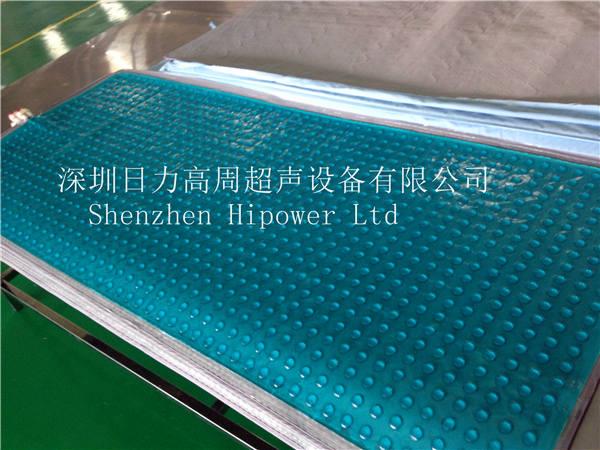

Ecological gel matress high frequency welding machine

Model：	HR-50KWAT
Scope Of Application：	Application: Toy stationery industry such as: gift bag, basketball embossing,phase thin, album, name card, welding, mouse pads, lens box welding&embossing, etc; Leather leather bags industry such as: leather, leather welding, embossing, fusing and towel
Features：	Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

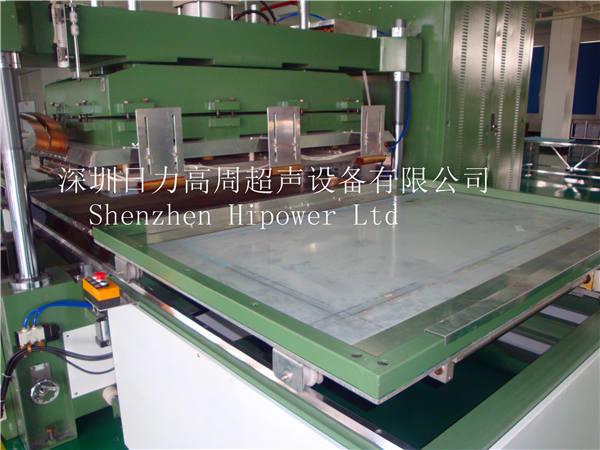

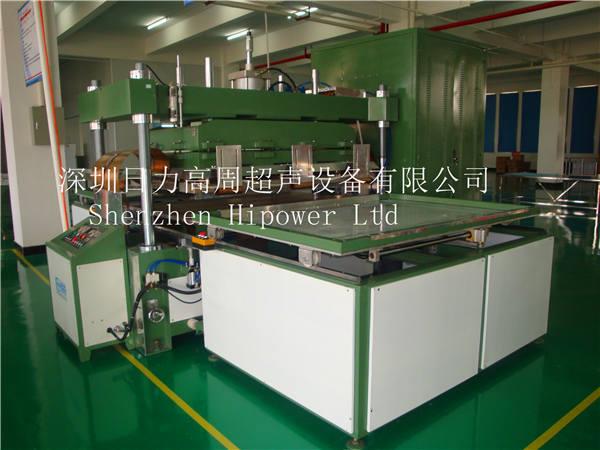

HR-50KW Ecological gel matress high frequency welding machine

Character of machine:

1. Most apply for APET,PETG,GAG etc Eco-friendly blister packing,tooth brush packing,soft line plastic box making,all material which need welding and cutting simultaneously,all can work by this machine.

2. Double-direction automatic slipway,come-and-go or continuous delivering the mould,accurate-orientation, error + 20 um.3. Adjustable cutting pressure 1-50 tons,stable and realible in output,firm in structure.

3. Adopting high sensitive anti-sparkle device NL5557 to avoid damaging the mould efficiency.

Technical Parameters:

Model	HR-15KW	HR-25KW	HR-35KW	HR-50KW
Power	15000W	25000W	35000W	50000W
Power supply	380V 50/60HZ
Frequency	13.56MHZ
Electric power	25KVA	35KVA	50KVA	70KVA
Prectifier	SILICON DIODE
Vibrational tube	8T85RB	8T25RA	8T87RB	E3116
Maxpressure	1000kg	1000kg	1500kg	2000kg
Max gap of electrodes	100MM
Size of active horn	100MM
Size of upper electrode	700*900mm	800*1000mm	1000*1800mm	1200*2100mm
Size of down electrode	800*1200mm	1000*1400mm	1200*2000mm	1200*2200mm
Welding time	0~10S Adjustable
