ShenZhen Hipower,.LTD
Product Display
Product Display > PVC/PET Cylinder Tube / Foldable Box forming Machine > PVC & PET Cylinder Forming Machine

Radio Frequency Cylinder Bottom Sealing Machine

Model:
Scope Of Application: Mainly used for PVC, APET, PETG and other plastic cylinder bottom welding;
Features: Radio frequency welding machine,Auto rotary machine, with speed adjustable

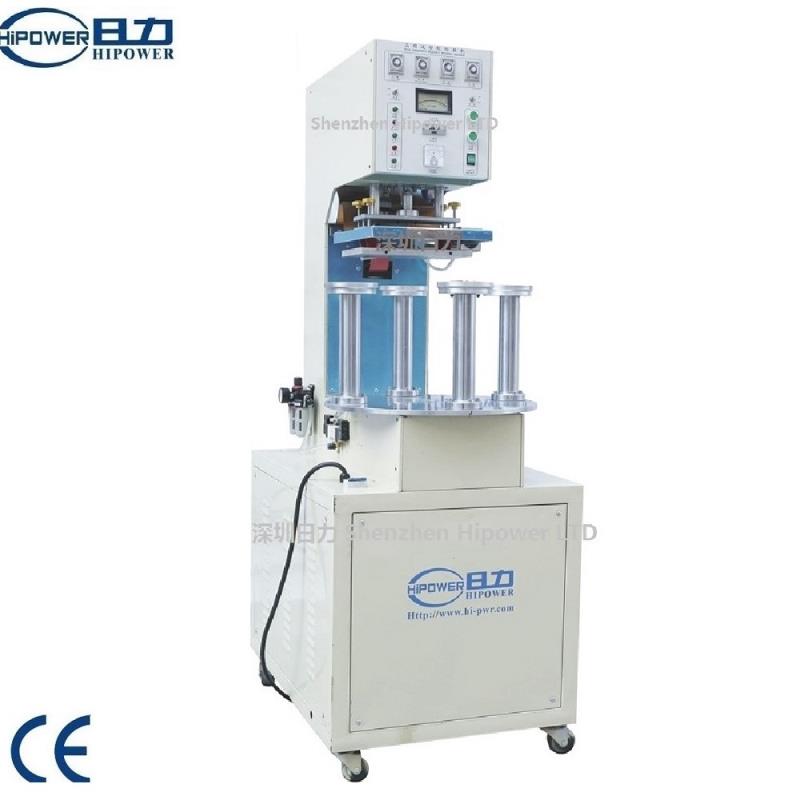

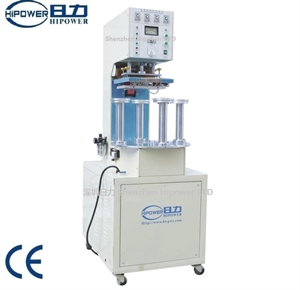

HY-5000ETY High Frequency Cylinder Lid Welding machine
Application

PVC cylinder bottom welding, PP cylinder bottom welding, APET cylinder bottom welding, PETG cylinder bottom welding, plastic cylinder bottom welding,

paper cylinder bottom welding, paper material cylinder bottom welding, paper tube cylinder bottom welding, transparent plastic cylinder bottom welding;

 Also known as cylinder bottom sealing machines, high frequency cylinder sealing machine, cylinder lid welding machine;

Product Features

Four working postion auto turnplate design; precision positioning segmentation; using the principle of high frequency bonding, the effect is strong and

 beautiful and no scratches.To meet welding cylinders of different diameter, height, material thickness; machine operation simple and efficient;

cooperate  HY-2030 fully automatic crimping machine to achieve the purpose production lines.

Professional high frequency bonding machine not only used for PVC, APET, PETG material cylinder bottom welding, but also applied for welding application;

can meet edge curling application for cylinders with the different lengths (80-300mm), diameter (40-200mm), and material thickness (0.25-0.5mm);

wonderful edge curling effect, no scratch, and exact even cylinder height, with error range: 0.05mm.

machine operation simple and efficient (production speed: 2 to 5 second per piece adjustable);

 cooperate  HY-2030 fully automatic crimping machine to achieve the purpose production lines.

Industrial Fields Applied
Making ideal cylinders for packaging candy, gift, toy, stationery, umbrellas, packing gear, badminton, snack food and other products

Model

HY-5000ETY

Voltage

 220V

Pneumatic range

 2-7bar

Frequency

20KHz

Output POWER

 5kw

Max Input power

1.2KW to 2.3KW

Vibrational System

Auto-stimulating

Prodcution speed

2-5sec/pc

Cylinder Diameter

20-200mm

Air Compressor

1HP to 2HP

Cylinder Height

15-420mm

Sealed Samples:


Machine Pictures:
